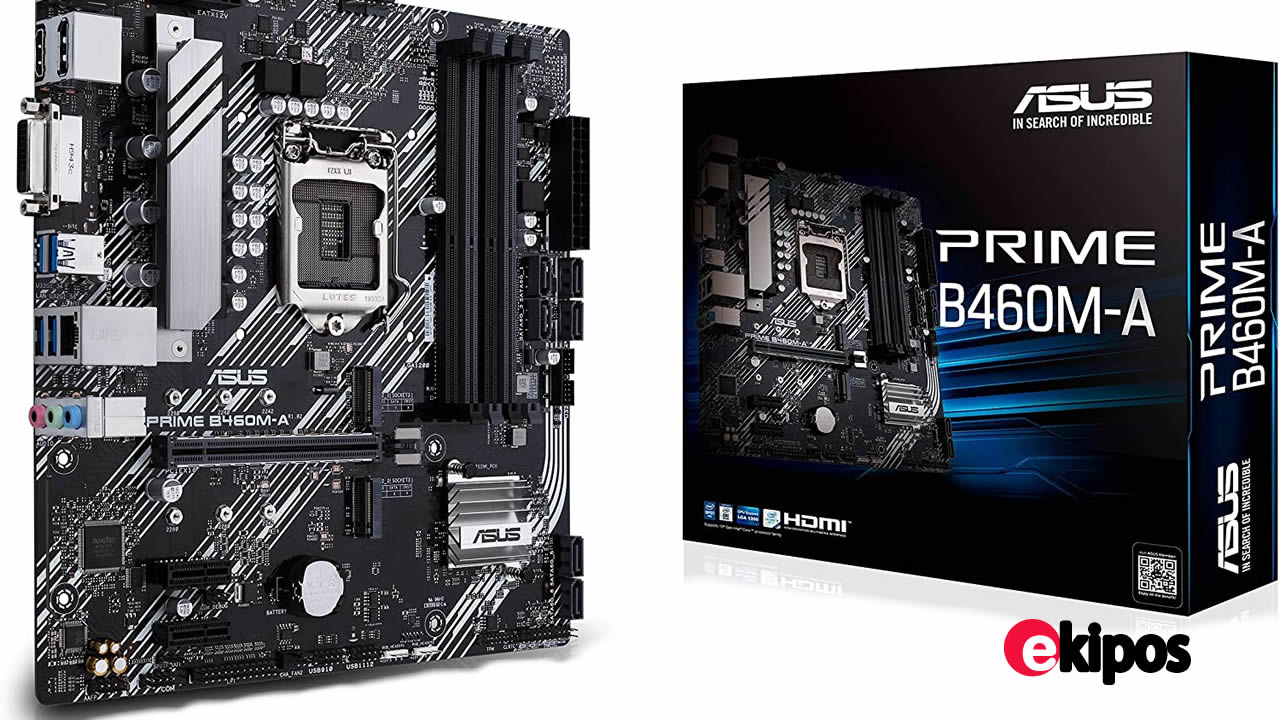

ASUS Prime B460M-A LGA 1200 (Intel® de 10ª generación) Micro ATX (Dual M.2, LAN de 1 GB, puertos USB 3.2 Gen 1, HDMI, DisplayPort, 4K a 60Hz y Aura Sync RGB)
Código: 3619
Intel® B460 (LGA 1200) mATX motherboard with Aura Sync RGB header, Dual M.2, DDR4 2933MHz, HDMI, DisplayPort, USB 3.2 Gen 1 ports, Intel® Optane memory ready, SATA 6 Gbps
Intel ® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability.
Fan Xpert 2+: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming.
5X Protection III: Multiple hardware safeguards for all-round protection.
Ultrafast connectivity: Supreme flexibility with native M.2 support for Lightning-fast storage speeds
Aura Sync RGB: Synchronizable LED effects across a vast portfolio of compatible PC gea
ekipos.com
Manual |
-
CPU
Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® B460
Memory
Intel® B460 Chipset
4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic
Integrated Graphics Processor- Intel® UHD Graphics support
1 x DisplayPort 1.4
1 x HDMI 1.4b
1 x DVI-D
*Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
Expansion Slots
Intel® 10th Gen Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
Intel® B460 Chipset
2 x PCIe 3.0/2.0 x1
Storage
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® B460 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready
LAN
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard
Audio
Realtek® ALC887 7.1-Channel High Definition Audio CODEC *
- Supports : Jack-detection, up to 24-Bit/192kHz playback
Audio Feature :
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports
Rear USB Port ( Total 6 )
4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)
4 x USB 2.0 port(s)
Software Features
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
- EZ update
AI Charger
ASUS CPU-Z
DAEMON Tools
Norton Anti-virus software(Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Special Features
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS Safeslot
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
ASUS Sync
- Standard RGB header(s)
Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x AAFP connector
2 x Aura RGB Strip Header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3
1 x SPI TPM header
1 x LPT header
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x COM port header
Accessories
User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Operating System
Windows® 10 64-bit
Form Factor
mATX Form Factor
9.6 inch x 9.2 inch ( 24.4 cm x 23.4 cm )
-
