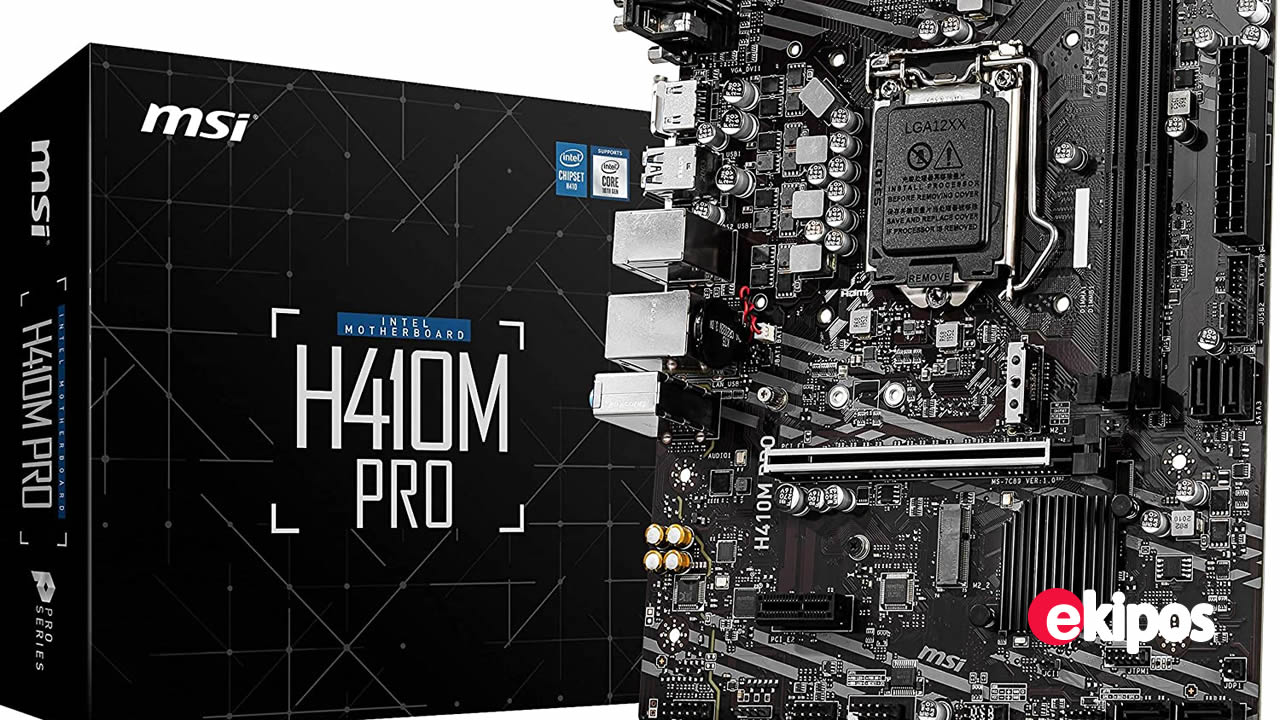

MSI H410M PRO

MSI H410M-PRO ProSeries - Placa base (mATX, 10ª generación Intel Core, LGA 1200 Socket, DDR4, M.2 Slot, USB 3.2 Gen 1, 2.5G LAN, D-SUB/DVI/HDM
Código: 3613 | Garantía:12 meses | PB:kg. 1.00

Producto Disponible

Confirmado el pago, la entrega es dentro de las 48 horas, en la ciudad que se indique.

Ingrese para ver precios

111453 7220 Compartir

+ MSI | + Placas madre (52) | Partes de Estaciones de Trabajo | Ultimos

WhatsApp 2 WhatsApp 1

« Anterior Producto Siguiente »

Placas madre | MSI H410M PRO | Ekipos | 72044155 60587770
MSI H410M-PRO ProSeries - Placa base (mATX, 10ª generación Intel Core, LGA 1200 Socket, DDR4, M.2 Slot, USB 3.2 Gen 1, 2.5G LAN, D-SUB/DVI/HDM
Código: 3613

Marca MSI
Zócalo de CPU LGA 1200
Dispositivos compatibles Personal Computer
Tecnología de memoria RAM DDR4
Procesadores compatibles Intel Celeron, Intel Pentium
Tipo de set de chips Intel H410
Velocidad de memoria 2933 MHz
Plataforma Windows
Modelo de CPU Pentium
Interfaz de tarjeta de gráficos PCI-E
Ver más
Sobre este artículo
Soporta procesadores Intel Core / Pentium Celeron de 10ª generación para socket LGA 1200.
Soporta memoria DDR4, hasta 2933 MHz.
DDR4 Boost: tecnología avanzada para ofrecer señales de datos puras para el mejor rendimiento y estabilidad.
Audio Boost: recompensa tus oídos con calidad de sonido de grado de estudio
Turbo M.2: Correr en PCI-E Gen3 x4 maximiza el rendimiento para SSD basados en NVMe
ekipos.com
Especificaciones |
CPU (MAX SUPPORT)
SOCKET
CHIPSET
DDR4 MEMORY
MEMORY CHANNEL
DIMM SLOTS
MAX MEMORY (GB)
PCI-E X16
PCI-E GEN
PCI-E X1
SATAIII
M.2 SLOT
TPM (HEADER)
LAN
USB 3.2 PORTS (FRONT)
USB 3.2 PORTS (REAR)
USB 2.0 PORTS (FRONT)
USB 2.0 PORTS (REAR)
SERIAL PORTS(FRONT)
AUDIO PORTS (REAR)
DVI-D
VGA
HDMI
DIRECTX
FORM FACTOR
OPERATING SYSTEM
i9
1200
Intel® H410 Chipset
2933(Max)/ 2666/ 2400/ 2133 MHz
Dual
2
64
1
Gen3
1
4
2
1
Intel® I219V Gigabit LAN
2(Gen 1, Type A)
2(Gen 1, Type A)
2
4
1
Realtek® ALC892/ALC897 Codec
1
1
1
12
Mirco-ATX
Support for Windows® 10 64-bit
PROCESSOR
Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA 1200 socket1 2

Please go to www.intel.com for more compatibility information.Onboard graphics output are disabled when using F SKU processors.
See supported processors

CHIPSET
Intel® H410 Chipset

MEMORY
2x DDR4 memory slots, support up to 64GB1
Intel® Core™ i7/ i9
Supports up to DDR4 2933 MHz
Intel® Core™ i5 and below
Supports up to DDR4 2666 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Please refer www.msi.com for more information on compatible memory.
See supported memory

EXPANSION SLOT
1x PCIe 3.0 x16 slot (From CPU)
1x PCIe 3.0 x1 slot (From PCH)
1x M.2 slot with E key for WiFi module only
ONBOARD GRAPHICS
1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz
1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz
STORAGE
Intel® H410 Chipset
4x SATA 6Gb/s ports
1x M.2 slot (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
USB
Intel® H410 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
AUDIO
Realtek® ALC892/ALC897 Codec
7.1-Channel High Definition Audio
LAN
1x Intel® I219V Gigabit LAN controller
INTERNAL CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x Front panel connectors
1x Serial port connector
1x TPM module connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x 4-pin RGB LED connector
1x 3-pin RAINBOW LED connector
4x EZ Debug LED
BACK PANEL PORTS
VGA
Keyboard / Mouse
LAN
DVI-D
HDMI
USB 3.2 Gen 1 5Gbps Type-A
USB 2.0
USB 2.0
Audio Connectors
MSI Z490-A PRO back panel ports
DIMENSIONS
Mirco-ATX Form Factor
9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)
MOUNTING
6 mounting holes

OPERATING SYSTEM
Support for Windows® 10 64-bit
