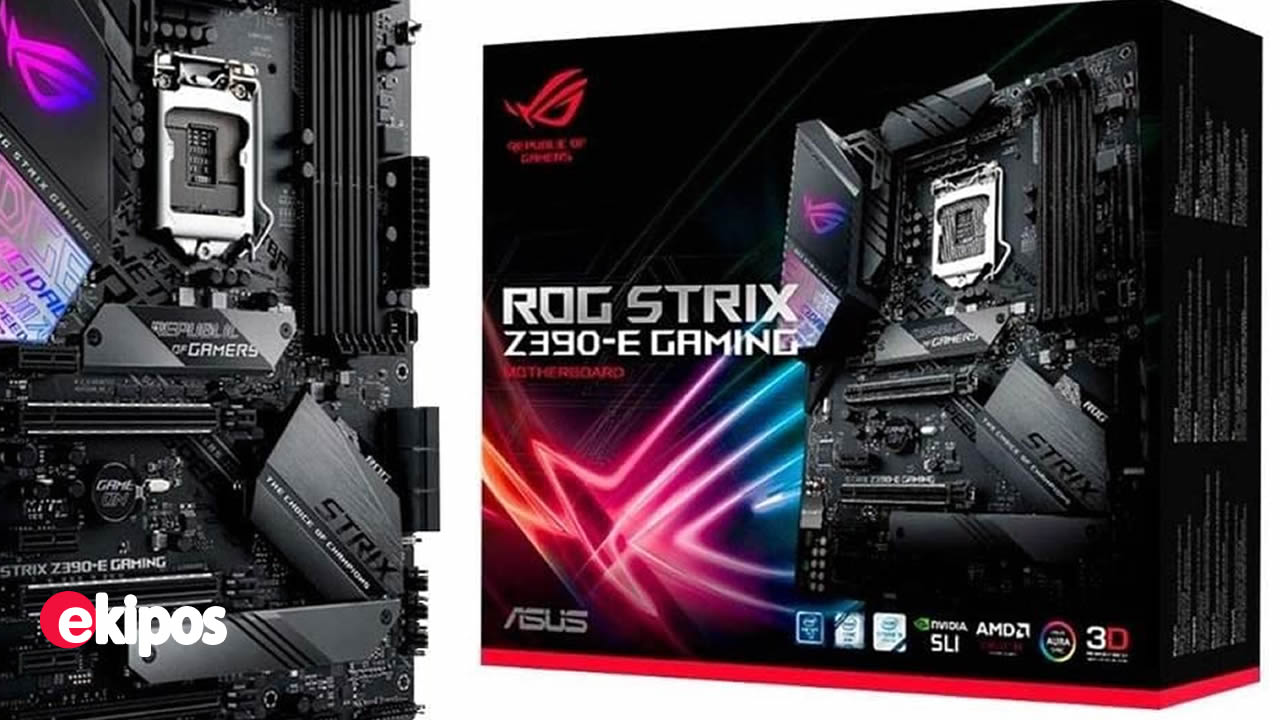

ASUS ROG STRIX Z390-E GAMING |
Ekipos | Celulares:
72044155
60587770
ASUS ROG STRIX Z390-E GAMING Motherboard gamer Intel Z390 LGA 1151 ATX con Aura Sync, Wi-Fi 802.11ac, soporte de memoria DDR4 4266 MHz+, doble puerto M.2 con disipador, SATA 6Gbps, HDMI y USB 3.1 Gen
Código: 3804
Marca ASUS
Zócalo de CPU LGA 1151
Dispositivos compatibles Personal Computer
Tecnología de memoria RAM DDR4
Procesadores compatibles 8th Generation Intel Core
Velocidad de memoria 2133 MHz
Plataforma Windows 10
Capacidad de almacenamiento de memoria 64 GB
Interfaz de tarjeta de gráficos PCI-E
Ranuras de memoria disponibles 4.0
Diseñado para procesadores Intel Core de 9ª generación que maximizan la conectividad y la velocidad con Dual M.2, USB 3.1 Gen 2, 802.11AC Wi Fi y ASUS óptimo II para una mejor estabilidad de overclocking DRAM
Optimización renovada de 5 vías sobre relojes basada en la predicción inteligente y la telemetría térmica, mientras que FanXpert 4 ofrece refrigeración dinámica del sistema; sistema operativo Windows 10 de 64 bits
Gamers Guardian garantiza la longevidad de los componentes con ranura segura, protectores ESD y protección contra sobrecorriente DRAM
El escudo I/O premontado garantiza una instalación aerodinámica y representa la atención de ROG al detalle y la calidad
ekipos.com
-
ROG STRIX Z390-E GAMING
CPU
Intel® Socket 11519th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Chipset
Intel® Z390
Memoria
4 x DIMM, Max. 64GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Dual Channel Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Gráficos
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz *1
- Supports HDMI with max. resolution 4096 x 2160 @ 30Hz
Integrated Graphics Processor- Intel® HD Graphics support
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Multi-VGA output support : HDMI/DisplayPort ports
Soporte Multi GPU
Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD 3-Way CrossFireX™ Technology
Slots de Expansión
2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
3 x PCIe 3.0/2.0 x1
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
Almacenamiento
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*2
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
Intel® Z390 Chipset :
Support Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready
6 x SATA 6Gb/s port(s)
LAN
Intel® I219V
Anti-surge LANGuard
ROG GameFirst Technology
Datos de redes inlámbricas
Intel® Wireless-AC 9560
Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
Bluetooth
Bluetooth® 5.0
Audio
ROG SupremeFX8-Channel High Definition Audio CODEC S1220A
- SupremeFX Shielding™ Technology
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality120dBSNR stereo playback outputand113dBSNR recording input
- SupremeFX Shielding Technology
- Supports up to 32-Bit/192kHz playback *2
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
Puertos USB
4 x USB 3.1 Gen 2 port(s) (3 x Type-A+1 x USB Type-CTM)
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
Intel® Z390 Chipset :
1 x USB 3.1 Gen 2 front panel connector port(s)
4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board)
Caracteristicas Overclocking
ROG Exclusive Software
- RAMCache III
- CPU-Z
- GameFirst V
Caracteristicas Especiales
AI Overclocking
- 3D Printing Friendly
ASUS Optimem II?
OC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance
- 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App
- Aura Addressable Strip Header(s)
- MemOK! II
Digi+VRM
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Pre-mounted I/O Shield
- ASUS NODE: hardware control interface
Gaming Aesthetics :
- AURA-RGB Lighting
- DRAM Overcurrent Protection
5-Way Optimization by Dual Intelligent Processors 5
- Improved DDR4 Stability
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Armoury Crate
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
DIY Friendly Design
- Procool
- SafeSlot
- Digi+ VRM
- Highly Durable components
- ESD Guards
Puertos I/O Traseros
4 x USB 3.1 Gen 2 (3 x Type-A+1 x USB Type-CTM)
2 x USB 3.1 Gen 1
2 x USB 2.0
1 x ASUS Wi-Fi Module
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x Optical S/PDIF out
5 x Audio jack(s)
Internal I/O
1 x M.2_FAN connector
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x CPU OV
1 x AIO PUMP Header
1 x Aura Addressable Strip Header(s)
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x MemOK! II switch(es)
1 x 14-1 pin TPM connector
1 x USB 3.1 Gen 2 front panel connector
6 x SATA 6Gb/s connector(s)
1 x AAFP connector
2 x Chassis Fan connector(s)
1 x W_PUMP+ connector
1 x Thermal sensor connector(s)
1 x Node Connector(s)
2 x Aura RGB Strip Header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Clear CMOS jumper(s)
1 x COM port header
Accessorios
1 x Assistant Fans(40mm)
1 x screws for Assistant Fan(s)
1 x CABLE TIE BLACK
1 x ROG Door Hanger(s)
1 x SLI HB BRIDGE(2-WAY-M)
1 x ROG Strix stickers
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x Thermistor cable(s)
User´s manual
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
BIOS
1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1
Capacidad de gestión
WOL , PXE
Sistema Operativo
Windows® 10 64-bit
Factor de forma
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
ATX Form Factor
-
