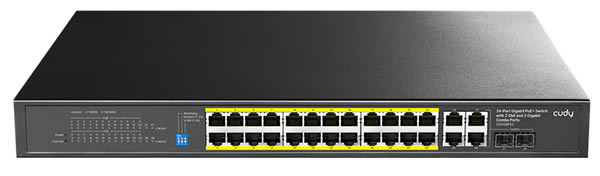

Cudy GS1028PS2 Conmutador Gigabit PoE+ de 24 puertos con 2 GbE y 2 puertos combinados de 300 W
Código: 5254

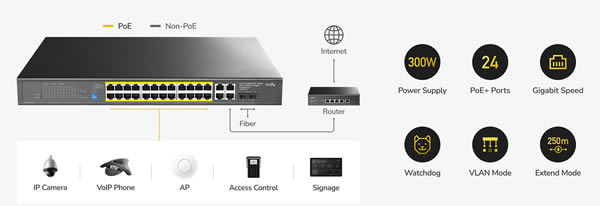

Un conmutador PoE montado en rack con una fuente de alimentación de 300 W, que cuenta con 24 puertos PoE GbE, 2 puertos GbE de enlace ascendente y 2 puertos combinados GbE/SFP de enlace ascendente.
24 GbE con PoE 802.3at/af
2× Uplink GbE + 2× Uplink Combo
Fuente de alimentación de 300 W
Perro guardián
Vigilancia activada/desactivada
PoE Max, PoE por puerto LED
Smart Fan Cooling
Escritorio, montaje en rack
440×220×44 mm (17,32×8,66×1,73")
https://ekipos.com/bolivia/?id=5254
-
Versión del modelo GS1028PS2 4.0
Interfaces Gigabit RJ45/SFP Combo Ports 2
Gigabit RJ45 Ports 26
Gigabit RJ45 PoE Ports #1~#24
Max Power on a Single PoE Port 30W
PoE Port Notes The PoE ports comply with IEEE 802.3at/af standards.
PoE Priority Intelligent Power Management:
Automatically disconnect the lastly powered device when power exceeds budget.
Shielded RJ45 Port True
Extend Mode Ports #17~#24
VLAN Mode Ports #1~#24
LED
Power
PoE Status of Each PoE Port
Link/ACT of Each Ethernet Port
PoE Max Status
Power Interfaces AC Inlet
Physical Buttons
Extend On/Off
VLAN On/Off
PoE Watchdog On/Off
Physical Buttons Note The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade feature.
Performance Copper Speed and Distance
Cat. 3 or higher cable: 100 meters at 10 Mbps
Cat. 5 or higher cable: 100 meters at 100 Mbps
Cat. 5e or higher cable: 100 meters at Gigabit
Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
Optical Spec and Distance Depends on the Installed Optical Module
MAC Address Table 8192
Max Switching Capacity 56 Gbps
Max Forwarding Rate 41.664 Mpps
Jumbo Frame 15 KB
Packet Buffer 4 Mbit
Power Power Methods AC
Power Input 100-240V~ 50/60Hz
Power Supply 300W
Max Power Excluding PoE 20W
Switching 802.3 Protocols
802.3i 10BASE-T
802.3u 100BASE-TX
802.3ab 1000BASE-T
802.3z 1000BASE-X
802.3x Flow Control
802.3af PoE
802.3at PoE
PoE Management Intelligent Power Management
L2 Features
Loop Prevention
Loop Detection
DSCP QoS
802.1p QoS
Reliability Fans 1
Fan Note Smart Cooling: The fan speed adjusts in real time based on power consumption.
Grounding Methods
Three-Prong Plug
Grounding Point
EMS IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 6kV
Environment Operating Temperature: 0~40 ℃ (32~104 ℉)
Storage Temperature: -40~70℃ (-40~158 ℉)
Operating Humidity: 10~90% non-condensing
Storage Humidity: 10~95% non-condensing
Mechanical Dimension 440×220×44 mm
17.32×8.66×1.73 inches
Product Weight 2924.5 g (103.16 oz.)
Casing Material Metal
Installation
Desktop

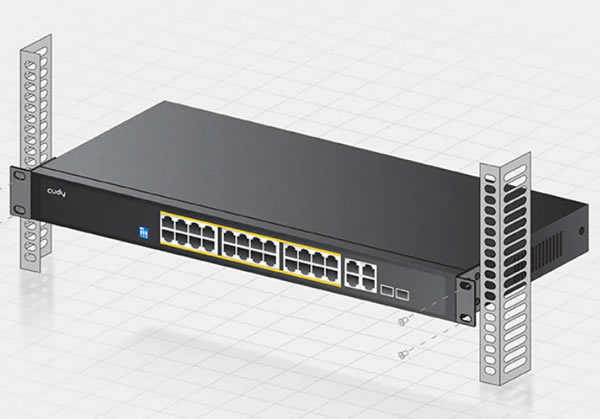

Rackmount via Brackets
Package Content
GS1028PS2
Power Cord
Mounting Kit
Installation Guide
-
Cudy GS1028PS2 Conmutador Gigabit PoE+ de 24 puertos con 2 GbE y 2 puertos combinados de 300 W
Cudy GS1028PS2 Conmutador Gigabit PoE+ de 24 puertos con 2 GbE y 2 puertos combinados de 300 W
Cudy GS1028PS2 Conmutador Gigabit PoE+ de 24 puertos con 2 GbE y 2 puertos combinados de 300 W
