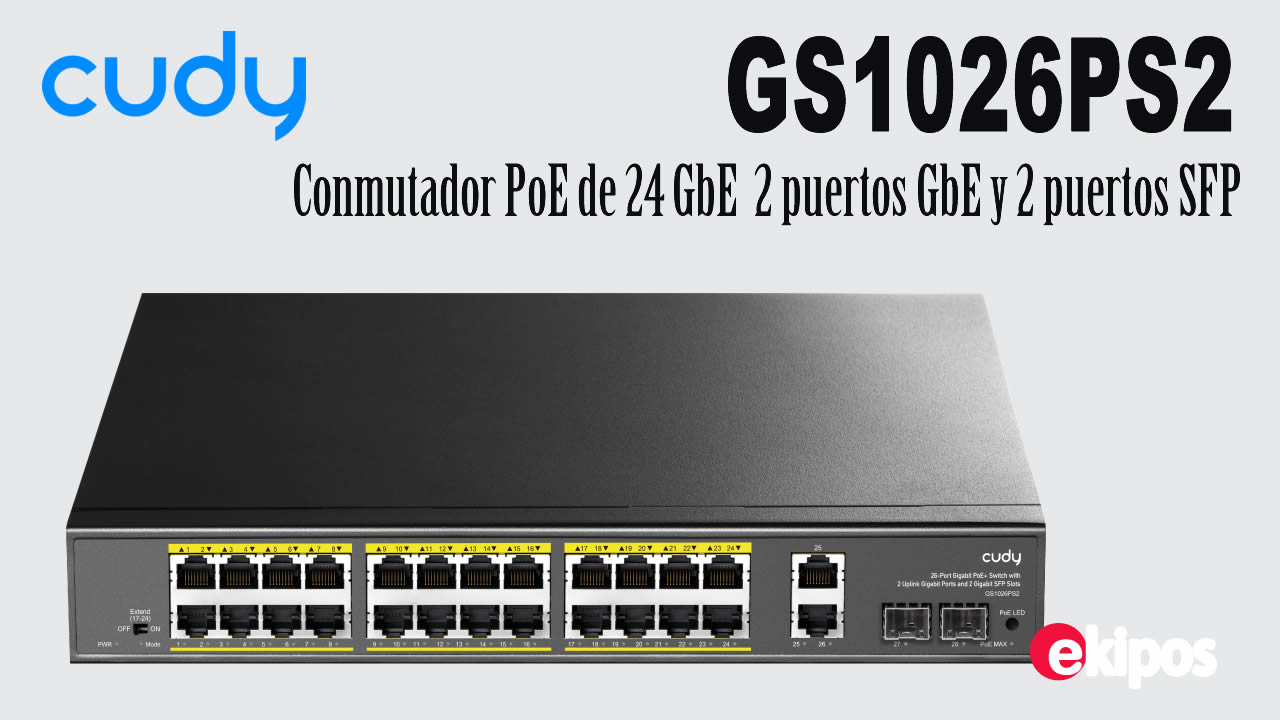

Cudy GS1026PS2 Conmutador PoE de 24 GbE con 2 puertos GbE de enlace ascendente y 2 puertos SFP de enlace ascendente
Código: 5253
A rack-mounted 26-GbE, 2-SFP PoE switch with a 300W power supply and a silent cooling system.
24 GbE con PoE 802.3at/af
2× Uplink GbE + 2× Uplink SFP
Fuente de alimentación de 300 W
Modos predeterminado/extendido
Vigilancia en modo extendido
Escritorio, montaje en rack
320×207×44 mm (12,6×8,15×1,73″)
https://ekipos.com/bolivia/?id=5253
-
Versión del modelo GS1026PS2 1.0
Interfaces 1.25G SFP Slots 2
Gigabit RJ45 Ports 26
Gigabit RJ45 PoE Ports #1~#24
Max Power on a Single PoE Port 30W
PoE Port Notes The PoE ports comply with IEEE 802.3at/af standards.
Extend Mode Ports #17~#24
LED
Power
DIP Mode (SW)
PoE Status of Each PoE Port
Link/ACT of Each Ethernet Port
PoE Max Status
Power Interfaces AC Inlet
Physical Buttons
Default/Extend DIP switch
PoE LED Toggle
Physical Buttons Note The PoE Watchdog is on under the Extend mode and will attempt to reboot the plugged-in but inactive client.
Performance Copper Speed and Distance
Cat. 3 or higher cable: 100 meters at 10 Mbps
Cat. 5 or higher cable: 100 meters at 100 Mbps
Cat. 5e or higher cable: 100 meters at Gigabit
Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
Optical Spec and Distance Depends on the Installed Optical Module
MAC Address Table 8192
Max Switching Capacity 56 Gbps
Max Forwarding Rate 41.664 Mpps
Packet Buffer 3 Mbit
Power Power Methods AC
Power Input 100-240V~ 50/60Hz
Power Supply 300W
Max Power Excluding PoE 20W
Switching 802.3 Protocols
802.3i 10BASE-T
802.3u 100BASE-TX
802.3ab 1000BASE-T
802.3z 1000BASE-X
802.3x Flow Control
802.3af PoE
802.3at PoE
Reliability Grounding Methods Three-Prong Plug
EMS IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV
Environment Operating Temperature: 0~40 ℃ (32~104 ℉)
Storage Temperature: -40~70℃ (-40~158 ℉)
Operating Humidity: 10~90% non-condensing
Storage Humidity: 10~95% non-condensing
Mechanical Dimension 320×207×44 mm
12.6×8.15×1.73 inches
Product Weight 1986 g (70.05 oz.)
Casing Material Metal
Installation
Desktop
Rackmount via Brackets
Package Content
GS1026PS2
Power Cord
Mounting Kit
Installation Guide
