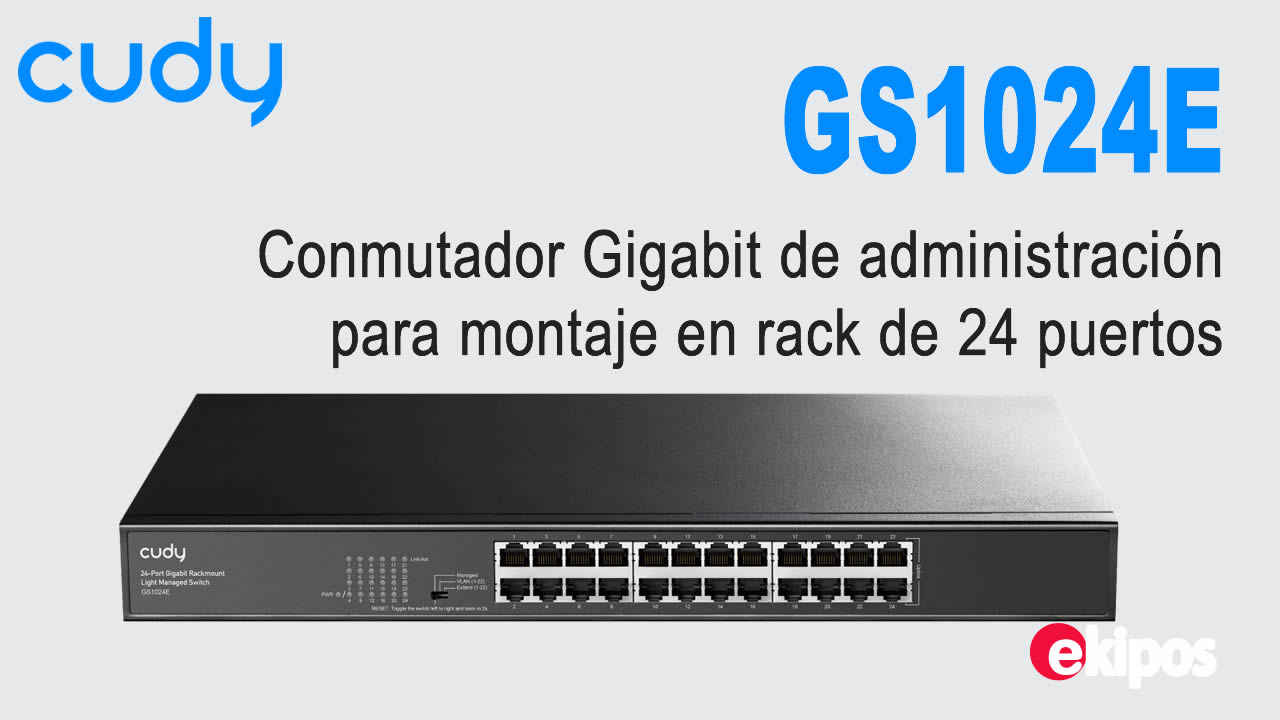

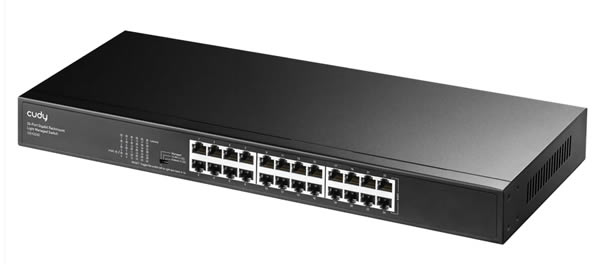

Cudy GS1024E Conmutador Gigabit de administración ligera para montaje en rack de 24 puertos
Código: 5251
Un conmutador de 24 GbE de 19 de ancho con funciones de gestión.
24× GbE
Administración web, SNMP
VLAN (802.1Q/MTU/Voz/Basada en puerto)
QoS (802.1p/DSCP/basado en puerto)
Port Mirror, Static Aggregation, etc
STP/RSTP y prevención de bucles
Inspección de DHCP, Inspección de IGMP
EEE (Ahorro de energía 802.3az)
Managed/VLAN/Extend Preset Modes
Escritorio, montaje en rack
440×180×44 mm (17,32×7,09×1,73)
https://ekipos.com/bolivia/?id=5251
-
Versión del modelo GS1024E 1.0
Interfaces Gigabit RJ45 Ports 24
Shielded RJ45 Port True
Extend Mode Ports #1~#22
VLAN Mode Ports #1~#22
LED
Power
Speed/Link/Act of Each Ethernet Port
Power Interfaces AC Inlet
Physical Buttons Managed/VLAN/Extend/Reset DIP Switch
Performance Copper Speed and Distance
Cat. 3 or higher cable: 100 meters at 10 Mbps
Cat. 5 or higher cable: 100 meters at 100 Mbps
Cat. 5e or higher cable: 100 meters at Gigabit
Cat. 5e or higher cable: 250 meters at 10 Mbps
Cat. 6 or higher cable: 150 meters at Gigabit
Copper Speed and Distance Note 250-meter transmission is available on the Extend Mode ports when the Extend Mode is activated. If Managed Mode is activated, 250-meter transmission is available when the port speed is set at 10 Mbps in the software.
MAC Address Table 8192
Max Switching Capacity 48 Gbps
Max Forwarding Rate 35.712 Mpps
Jumbo Frame 15 KB
Packet Buffer 4 Mbit
Power Basic Power Saving True
Power Methods AC
Power Input 90-260V~ 50/60Hz
Max Power Consumption 11W
Idle Power Consumption 6.8W
Switching 802.3 Protocols
802.3x Flow Control
802.3i 10BASE-T
802.3u 100BASE-TX
802.3ab 1000BASE-T
802.3az Power Saving
802.1 Protocols
802.1d: STP
802.1w: RSTP
802.1p: LAN Layer 2 QoS/CoS
802.1q: VLAN Bridge Operation
802.1ab: LLDP/LLDP-MED
Port Management
Port On/Off
Port Negotiation Speed
Port Trunk (Static Aggregation)
Port Mirror
Data Rate Limit
Jumbo Frame Settings
Storm Control
Traffic Monitor
MAC Address Management
EEE (802.3az)
Port Mirror Sessions 4
Port Trunk Groups 4
Max Port Num per Port Trunk Group 8
L2 Features
IGMP Snooping
Loop Prevention
DHCP Snooping
STP/RSTP
LLDP Config and Neighbors
MTU VLAN
Port-Based VLAN
802.1Q VLAN
Voice VLAN
DSCP QoS
802.1p QoS
Port-Based QoS
Reliability Grounding Methods
Three-Prong Plug
Grounding Point
EMS IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
System Control Methods
Config Web Page
SNMP V1/V2
Firmware Upgrade Local Upgrade
Reliability Backup and Restore
Diagnostic Tools
Cable Status/Length Diagnosis
Ping
Languages
English
Bengali
German
Spanish
French
Portuguese
Russian
Arabic
Indonesian
Hindi
Urdu
Traditional Chinese
Simplified Chinese
Mechanical Dimension 440×180×44 mm
17.32×7.09×1.73 inches
Product Weight 1690 g (59.61 oz.)
Casing Material Metal
Installation
Desktop
Rackmount via Brackets
Package Content
GS1024E
Power Cord
Installation Guide
Mounting Kit
-
Cudy GS1024E Conmutador Gigabit de administración ligera para montaje en rack de 24 puertos
