Cudy FS1024
Código: 5250 | Garantía:12 meses | PB:kg. 3.00
Disponible
Confirmado el pago, la entrega se realiza en la ciudad y plazo indicado en proforma.
+ Cudy | + Switchs (43) | Redes de datos | Ultimos
« Anterior Producto Siguiente »
-
Switchs | Cudy FS1024 | Ekipos Celular: 60587770

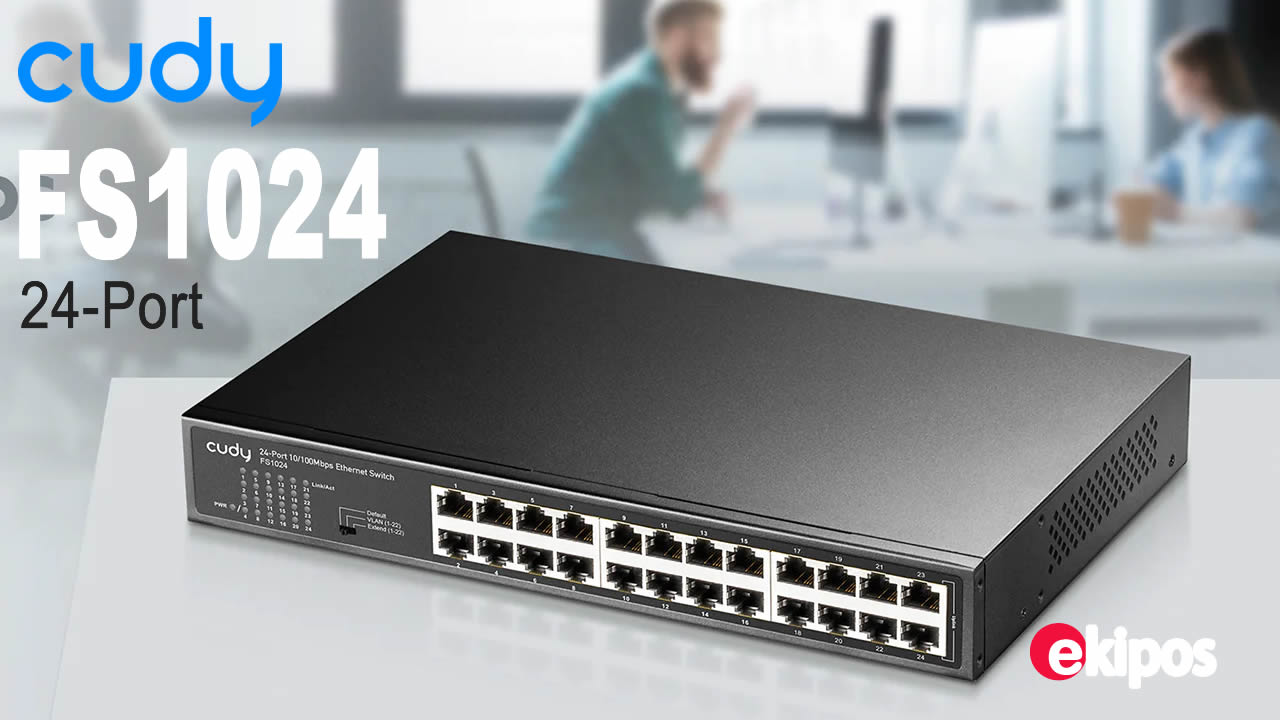

Cudy FS1024 Conmutador Ethernet de 24 puertos 10/100 Mbps
Código: 5250
Conmutador Ethernet de 24 puertos 10/100 Mbps
FS1024 1.0

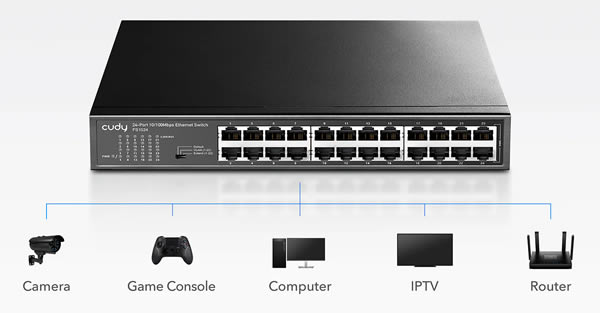

A 24-FE switch with VLAN/Extend functions, and a fanless cooling system.
24 puertos Fast Ethernet
Modos predeterminados/VLAN/Extender
Extend for 250 meters Transmission 1
VLAN para aislamiento de clientes
270×182×44 mm (10,63×7,17×1,73)
https://ekipos.com/bolivia/?id=5250
-
Versión del modelo FS1024 1.0
Interfaces 10/100 Mbps RJ45 Ports 24
Shielded RJ45 Port True
Extend Mode Ports #1~#22
VLAN Mode Ports #1~#22
LED
Power
Link/ACT of Each Ethernet Port
Power Interfaces AC Inlet
Physical Buttons VLAN/Default/Extend DIP Switch
Performance Copper Speed and Distance
Cat. 3 or higher cable: 100 meters at 10 Mbps
Cat. 5 or higher cable: 100 meters at 100 Mbps
Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
MAC Address Table 8192
Max Switching Capacity 4.8 Gbps
Max Forwarding Rate 3.57 Mpps
Jumbo Frame 2 KB
Packet Buffer 2 Mbit
Power Basic Power Saving True
Power Methods AC
Power Input 90-260V~ 50/60Hz
Max Power Consumption 3.0W
Idle Power Consumption 1.6W
Switching 802.3 Protocols
802.3i 10BASE-T
802.3u 100BASE-TX
802.3x Flow Control
Reliability Grounding Methods
Three-Prong Plug
Grounding Point
EMS IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Mechanical Dimension 270×182×44 mm
10.63×7.17×1.73 inches
Product Weight 997.0 g (35.17 oz.)
Casing Material Metal
Installation
Desktop
Rackmount via Brackets
Package Content
FS1024
Power Cord
Installation Guide
Mounting Kit
-
Cudy FS1024 Conmutador Ethernet de 24 puertos 10/100 Mbps
