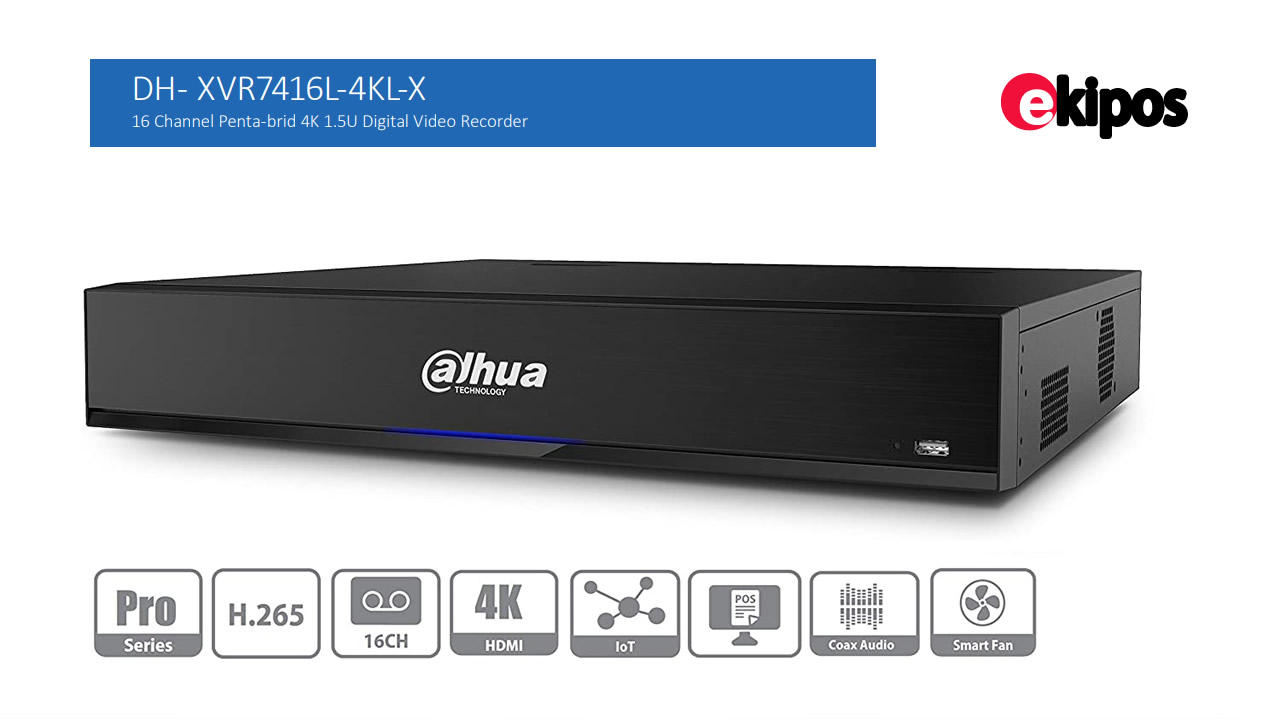

DAHUA XVR7416L-4KL-X 16 Channel Penta-brid 4K 1.5U Digital Video Recorder
Código: 3712
> H.265+/H.265 dual-stream video compression
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Supports 32 channels of IPC access, each channel up to 12MP input; Max 128Mbps incoming bandwidth
> IoT & POS functionalities
> All channels support Tripwire & Intrusion; First 4 channels support Object Abandoned & Missing
> Supports HDMI2 for spot output
ekipos.com
Especificaciones |
-
System
Main Processor
Embedded Processor
Operating System
Embedded LINUX
Video and Audio
Analog Camera Input
16 Channel, BNC
HDCVI Camera
4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera
5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
TVI Camera
5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
CVBS Camera
PAL/NTSC
IP Camera Input
16+16 Channel, each channel up to 12MP
Audio In/Out
4/1, BNC
Two-way Talk
1 Mic In, 1 Mic Out, BNC
Recording
Compression
H.265+/H.265/H.264+/H.264
Resolution
4K, 6MP, 5MP, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Record Rate
Main stream: 4K(1~7fps); 6MP(1~10fps); 5MP(1~12fps); 4MP/3MP(1~15fps); 4M-N/1080P/720P/960H/D1/CIF(1~25/30fps)
Sub steram:960H(1~15fps);
D1/CIF(1~25/30fps)
Bit Rate
32Kbps ~ 8192Kbps Per Channel
Record Mode
Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Audio Compression
G.711A, G.711U, PCM
Audio Sample Rate
8KHz, 16 bit Per Channel
Audio Bit Rate
64Kbps Per Channel
Display
Interface
2 HDMI, 1 VGA, 1 TV
Resolution
HDMI 1:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720
HDMI 2 /VGA: 1920×1080, 1280×1024, 1280×720
Multi-screen Display
When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25/36
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface
1 RJ-45 Port (1000M)
Network Function
HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access
128 users
Smart Phone
iPhone, iPad, Android
Interoperability
ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis
Alarm input
16
Relay Output
6
Playback and Backup
Playback
1/4/9/16
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode
USB Device/Network
Storage
Internal HDD
4 SATA Ports, up to 10TB capacity for each disk
eSATA
1 Port
Auxiliary Interface
USB
3 USB Ports (1 USB 2.0 , 2 USB 3.0)
RS232
1 port, for PC communication & Keyboard
RS485
1 Port, for PTZ Control
RS422
1 Port, for PTZ Control
Electrical
Power Supply
AC100V-240V, 50/60Hz
Power Consumption
(Without HDD)
<35W
Construction
Dimensions
1.5U, 440mm×417mm×76mm (17.3" x 16.4" x 3.0")
Net Weight
(without HDD)
4.8kg (10.58lb)
Gross Weight
7.4kg (16.31lb)
Installation
Desktop installation/Rack-mounted
Environmental
Operating Conditions
-10°C ~ +55°C (+14°F ~ +131°F), 10%~ 90% RH
Storage Conditions
-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Third-party Support
Third-party Support
Dahua, Arecont Vision, AXIS, Bosc
-
