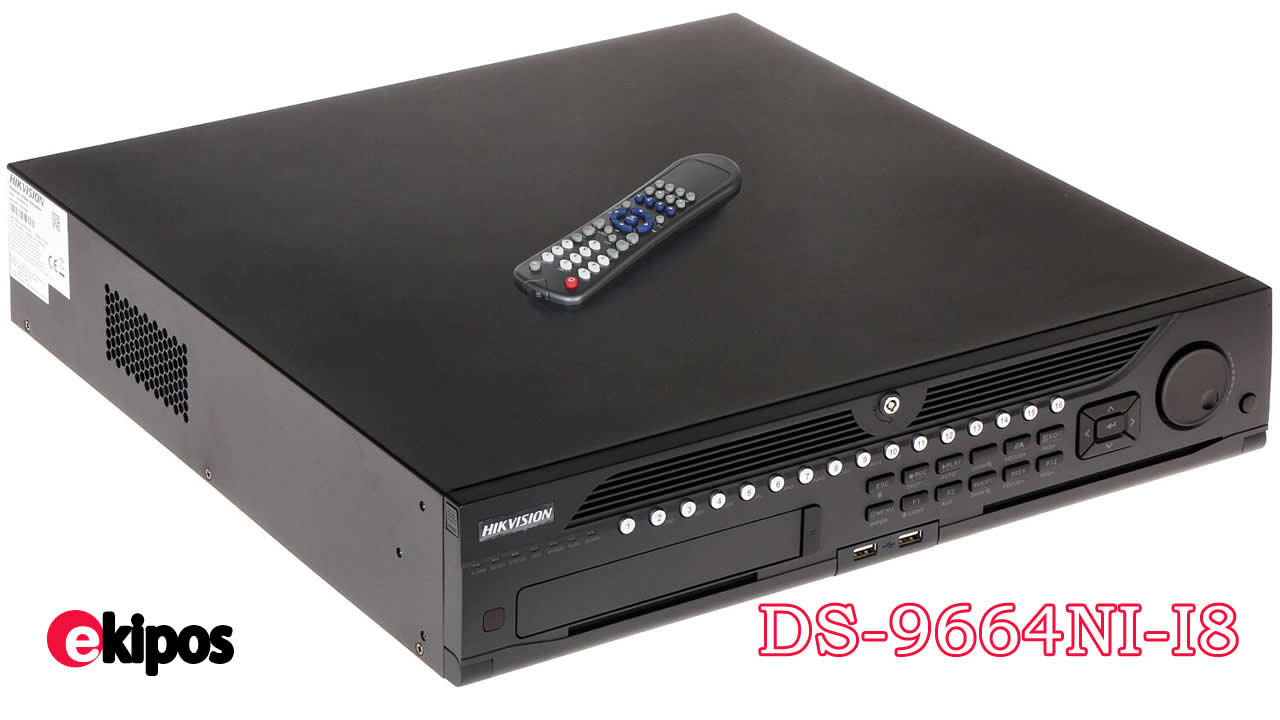

HIKVISION DS-9664NI-I8
Código: 3512
64-ch 2U 4K NVR
Up to 64 channel IP cameras can be connected
Up to 12 MP high-definition live view, storage and playback
Up to 320 Mbps (or 200 Mbps when RAID is enabled) high incoming bandwidth ensures IP cameras can be connected
2 HDMI (different source) and 2 VGA (different source) interfaces
8 HDD can be used for continuous video recording
Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
Advanced streaming technology enables smooth live view in poor network conditions
Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks
ekipos.com
Especificaciones |
-
Video And Audio
Entrada De Vídeo IP
64-ch
Up to 12 MP resolution
*: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
Incoming Bandwidth
320 Mbps
Outgoing Bandwidth
256 Mbps
Incoming Bandwidth (RAID Mode)
200 Mbps
Outgoing Bandwidth (RAID Mode)
200 Mbps
HDMI 1 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2 Output
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA 1 Output
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA 2 Output
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output Mode
HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;
HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 × 576, NTSC: 704 × 480
Salida De Audio
2-ch, RCA (Linear, 1 K?)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
Descodificación
Formato De Decodificación
H.265+/H.265/H.264+/H.264/MPEG4
Resolución De Grabación
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
*: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
Reproducción Síncrona
16-ch
Decodificación
1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)/16-ch@1080p (30fps)
Dual-Stream Recording
Support
Stream Type
Video, Video & Audio
Compresión De Audio
G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
Red
Conexión Remota
128
Protocolo De Red
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Interfaz De Red
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
RAID
RAID Type
RAID0, RAID1, RAID5, RAID6, and RAID10 (at least 4 TB for each HDD)
Auxiliary Interface
Interfaz De Serie
1 RS-485 (full-duplex), 1 RS-232, 1 keyboard
SATA
8 SATA interfaces supporting hot-plug
ESATA
1 eSATA interface
Capacidad
Up to 10TB capacity for each disk
Alarma E/S
16/4
Interfaz USB
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
General
Fuente De Alimentación
100 to 240 VAC, 50 to 60 Hz
Consumo
? 30 W
Temperatura De Trabajo
-10 °C to 55 °C (14 °F to 131 °F)
Condiciones De Humedad
10% to 90%
Chassis
3U chassis
Dimensión (W × D × H)
445 × 465 × 92 mm ( 17.5"× 18.3" × 3.6")
? 10 kg (22 lb)
Certificación
FCC
Part 15 Subpart B, ANSI C63.4-2014
CE
EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
-
