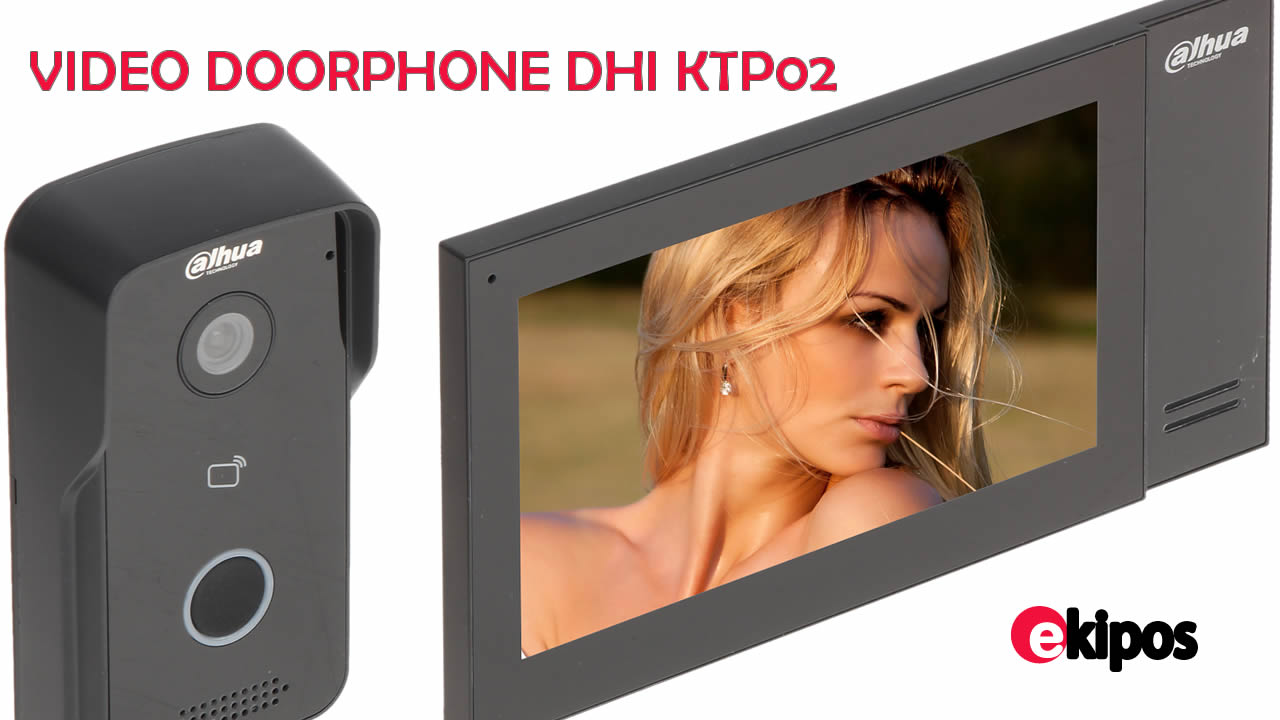

Dahua DHI-KTP02 - kit de Videoportero IP Frente de Calle, Monitor y Switch PoE/Pantalla LCD Touch de 7 DHI-VTO2111D-P-S2
Código: 3603
IP Villa Door Station & Indoor Monitor
IP Villa Door Station
High definition camera; WDR
Operating temperature -30°C to 60°C
IP65(Silicone sealant is needed. For details, see the quick start guide.)
Supports auto IR illumination and D/N
Card/app remote/indoor monitor unlock
Supports two-way voice call; support calls between door stations and app
10,000 cards
Tamper Alarm
Support standard PoE power supply
Control two locks
IP Indoor Monitor
IPC surveillance
Alarm integration
High performance
Embeded 8GB SD card
Support standard PoE
Quick configuration without computers
ekipos.com
Especificaciones |
-
Technical Speci?cation
Model
DHI-VTO2111D-P-S2
System
Main Processor
Embedded processor
Operating System
Embedded LINUX operating system
Button Type
Mechanical
Interoperability
ONVIF
Internet Protocol
SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP
Baisc
Camera
1/4" 1MP CMOS high definition, low illumination/WDR, color/IR
Angle of View
Horizontal: 107°; vertical: 61°; diagonal: 122°
WDR
Yes
Noise Reduction
3D noise reduction
Video Compression
H.264
Video Resolution
Main stream: WVGA, 720P, D1
Sub stream: CIF, WVGA, QVGA, 1080P, D1
Frame Rate
PAL: 25 fps NTSC: 30 fps
Video Bit Rate
256K to 4M
Light Compensation
Auto IR
D/N
ICR auto switch
Audio Compression
G.711a; PCM; AAC
Audio Input
1
Audio Output
Built-in speaker
Audio Mode
Two-way voice call
Audio Enhancement
Echo suppression and cancellation/digital noise reduction
Audio Bit Rate
16KHz, 16Bit
Function
Communication
Full digital
Unlock Mode
Card/App remote/indoor monitor unlock
Card Type
IC card
Motion Detection
Video motion detection
Auto Snapshot
Auto snapshot can only be enabled on indoor monitors
Leave Photos and Messages
Yes (SD card is needed)
Web Configuration
Yes
Performance
Card Reading Distance
3cm–5cm
Casing
PC+Acrylic
Capacity
Card
10,000
Port
RS-485
1
Electric Lock
1
Exit Button
1
Door Status Detection
1
Lock Control
1, normally closed by default
Network
1 10Mbps/100Mbps network port (8-core white ribbon cable)
Alarm
Tamper
Yes
General
Color
Black
Power Supply Mode
12V DC 1A
Standard PoE
Installation
Surface mount
Certifications
CE
FCC
UL
Accessory
Brackets and alarm ribbon cable
Dimensions
135mm×70.4mm×34.4mm (5.31"×2.77"×1.35")
Protection Grade
IP65 (silicone sealant is needed, see the quick start guide)
Operating Temperature
-30°C to +60°C (-20°F to +60°F )
Operating Humidity
10%RH–90%RH (non-condensing)
Operating Altitude
Beneath 3000 m (9842.52 ft)
Power Consumption
Standby?1W, working?5W
Gross Weight
326 g (0.72 lb)
Model
DHI-VTH2421FB-P
Main Processor
High performace embedded processor
Operating System
Embedded LINUX OS
Screen Type
Capacitive screen
Display
7-inch TFT screen
Resolution
1024 × 600
Video Compression
H.264
Audio Compression
G.711A/G.711U/PCM
Audio Input
1 channel all-direction microphone
Audio Output
Built-in 1.5W loudspeaker
Audio Mode
Support dual-way bidirectional talk
Audio Enhancement
Support echo cancellation/DNR
Audio Bit Rate
16 kbps
Communication Mode
Full digital
Information Release
Support to receive and view notifications issued by center
Leave Videos or Text Messages
Yes
DND Mode
Support to set DND period
Sub-station Quantity
9
Alarm Input
6 channel (switch quantity)
Alarm Output
1 channel
Network
1 RJ-45
SOS Alarm
Yes
Casing
PC+ABS
Appearance Color
Appearance Color
Power Supply
Power Supply
Installation
Wall mount
Accessories
Default bracket
Default alarm cable
Dimensions
119.6 mm × 221.5 mm × 21.5 mm
(4.71" × 8.72" × 0.85")
Operating Temperature
-10°C to +55°C (+14°F to +131°F)
Operating Humidity
10%RH-95%RH
Power Consumption
Standby?4W, work?6W
Gross Weight
0.35 Kg (0.77 lb)
Power Supply Mode
PoE or DC 12V
Storage
Support Micro SD, maximum memory capacity 32 G, standard memory capacity 8 G
Model
DH-PFS3005-4ET-36
Main Processor
High performace embedded processor
Ethernet Port
1×10/100 Base-T
4×10/100 Base-T (PoE power supply)
PoE Power Consumption
Each power ?30W, Total?36W
PoE Protocol
IEEE802.3af, IEEE802.3at
Weight
0.5kg
Dimension(W×D×H)
170mm×100mm×35mm
-
