DAHUA DHI-KTW01 KIT DE VIDEO PORTERO IP WIFI, FULL HD, MONITOR POE, LECTOR DE TARJETAS
Código: 3602

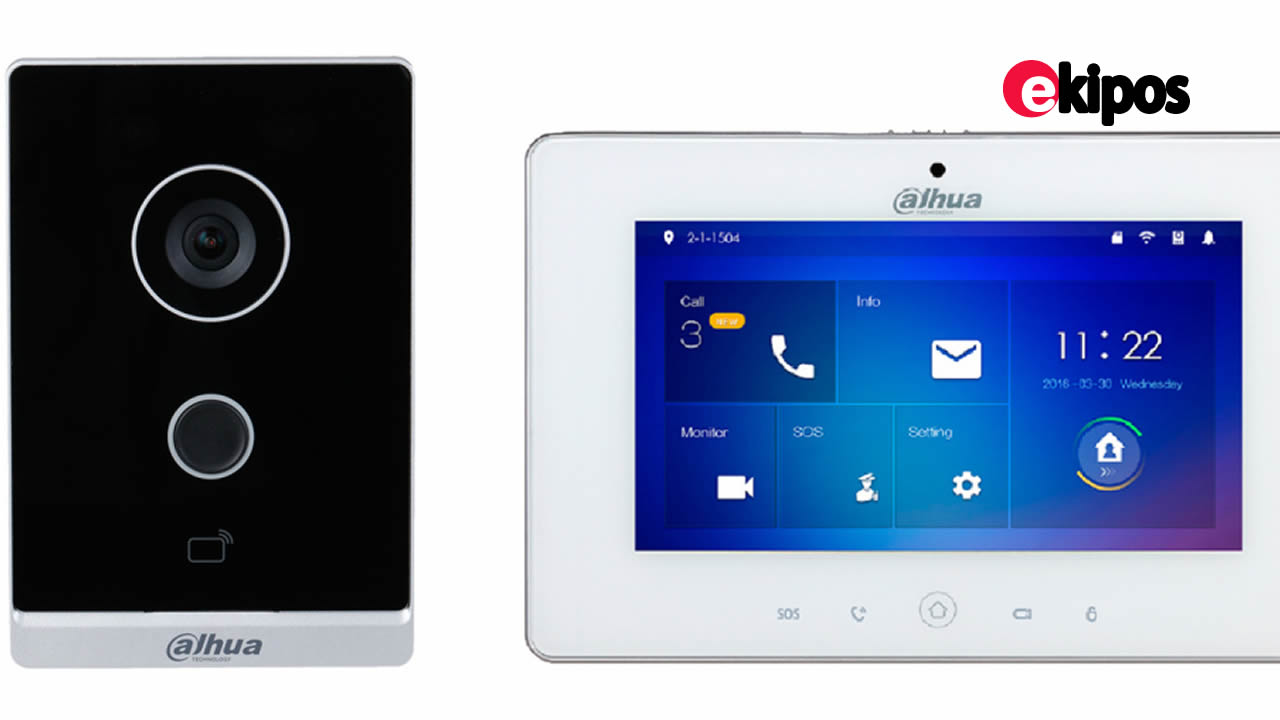

IP Villa Wi-Fi Door Station & Wi-Fi Indoor Monitor
IP Villa Wi-Fi Door Station
Thin lightweight design
-30°C to +60°C (-22°F to +140°F) operating temperature
IP65 (Silicone sealant is need. For details, see the quick start guide.)
IR illumination and night vision
Card unlock, app unlock, and indoor monitor unlock
Two-way audio and voice call through app
Card capacity: 10,000
Tamper alarm
Standard PoE
Control two locks
Supports wireless network
IP Indoor Monitor
7" TFT Capacitive touch screen, 1024x600
IPC surveillance
6ch wired alarm integration
Supports wireless network
Record & Snapshot(SD card needed)
ekipos.com
Especificaciones |
-
Selector de producto
DHI-VTO2211G-WP
System
Main Processor
Embedded processor
Operating System
Embedded Linux operating system
Button Type
Mechanical
Interoperability
ONVIF
Network Protocol
SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP
Basic
Camera
1/2.8 2MP CMOS high definition, low illumination/WDR/color/IR
Field of View
Horizontal: 125°; vertical: 72°; diagonal: 142°
WDR
120dB
Noise Reduction
3D noise reduction
Video Compression
H.264
Video Resolution
Main stream: WVGA, 720P, D1 Sub stream: CIF, WVGA, QVGA, 1080P, D1
Video Frame Rate
PAL:25 fps NTSC:30 fps
Video Bit Rate
256K to 4M
Light Compensation
Auto IR
Day/Night
ICR auto switch
Audio Compression
G.711Mu; G.711u; PCM
Audio Input
1
Audio Output
Built-in speaker
Audio Mode
Two-way audio
Audio Enhancement
Echo suppression and cancellation/digital noise reduction
Audio Bit Rate
16KHz, 16Bit
Function
Communication Mode
Full digital
Unlock Mode
Card/app/indoor monitor unlock
Card Type
IC card
Motion Detection
Video motion detection
Auto Snapshot
Auto snapshot can only be enabled on indoor monitors
Leave Videos
Yes (Insert an SD card into the indoor monitor)
Wi-Fi
Yes
Wireless Standard
IEEE802.11b/802.11g/802.11n
Wireless Frequency Range
2.4GHz
Web Configuration
Yes
Performance
Card Reading Distance
3cm–5cm
Casing
PC+Acrylic
Capacity
Card
10,000
Port
RS-485
1
Electric Lock
1
Alarm Input
1
Alarm Output
1
Power Output
1
Exit Button
1
Door Status Detection
1
Lock Control
1, normally closed by default
Network
1 10M/100M network port
Alarm
Tamper
Yes
General
Color
Black plate & silvery frames
Power Supply
12V DC 1A
Standard PoE
Installation
Surface mount
Certifications
CE/FCC/UL
Accessory
Brackets and alarm ribbon cable
Dimensions
150 mm × 100 mm ×24.8 mm (5.91 × 3.94 × 0.98)
Protection Grade
IP 65 (silicone sealant is needed, see the quick start guide)
Operating Temperature
-30°C to +60°C (-22°F to +140°F)
Operating Humidity
10%RH–90%RH (non-condensing)
Operating Environment
Outdoor
Operating Altitude
Beneath 3000 m (9842.51 ft)
Power Consumption
Standby?1W, working?7W
Gross Weight
490 g (1.08 lb)
DHI-VTH5221DW-S2
System
Main Processor
Embedded processor
Operating System
Embedded Linux operating system
Button Type
Touch button
Network Protocol
IPv4, FTP, RTSP, RTP, TCP, UDP, SIP
Basic
Screen Type
Capacitive Screen
Display
7/10 inch TFT display
Resolution
1024×600
Video Compression
H.264
Audio Compression
G.711a; G.711Mu; G.711u; PCM
Audio Input
1 omnidirectional microphone
Audio Mode
Two-way audio
Audio Enhancement
Echo suppression and cancellation/digital noise reduction
Audio Bit Rate
16KHz, 16Bit
Function
Communication Mode
Full digital
Information Release
Text messages released by the management center can be received and viewed (Insert an SD card into the indoor monitor).
Elevator Control
You can control the elevator through the indoor monitor.
Smart Home
Can be connected to Dahua smart home devices.
Leave Videos
Yes (Insert an SD card into the indoor monitor)
DND Mode
Yes
Extension Quantity
9
Wi-Fi
Yes
Wireless Standard
IEEE802.11b/802.11g/802.11n
Wireless Frequency Range
2.4GHz
Wireless Security Encryption
64/128bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Storage
8G Micro SD card (max SD card capacity supported is 64GB)
FTP
Port
RS-485
1
Alarm Input
6
Door Bell
Yes
Network
1 RJ-45 , 10M/100Mbps self-adaptive
Alarm
SOS
Yes
Performance
Casing
PC+ABS
Color
White
Power Supply
Dahua Switch (the max power supply distance is 50 m)
12V DC 1A
Installation
Surface mount
Accessory
Brackets and alarm ribbon cable
Dimensions
215.0 mm × 140.0 mm × 21.0 mm (5.91”× 3.94” ×0.98”)
Operating Temperature
-30°C to +55°C (-22°F to +140°F)
Operating Humidity
10%RH–90%RH (non-condensing)
Power Consumption
?3W (standby), ?7W (working)
Gross Weight
0.69 kg (1.52 lb)
-
