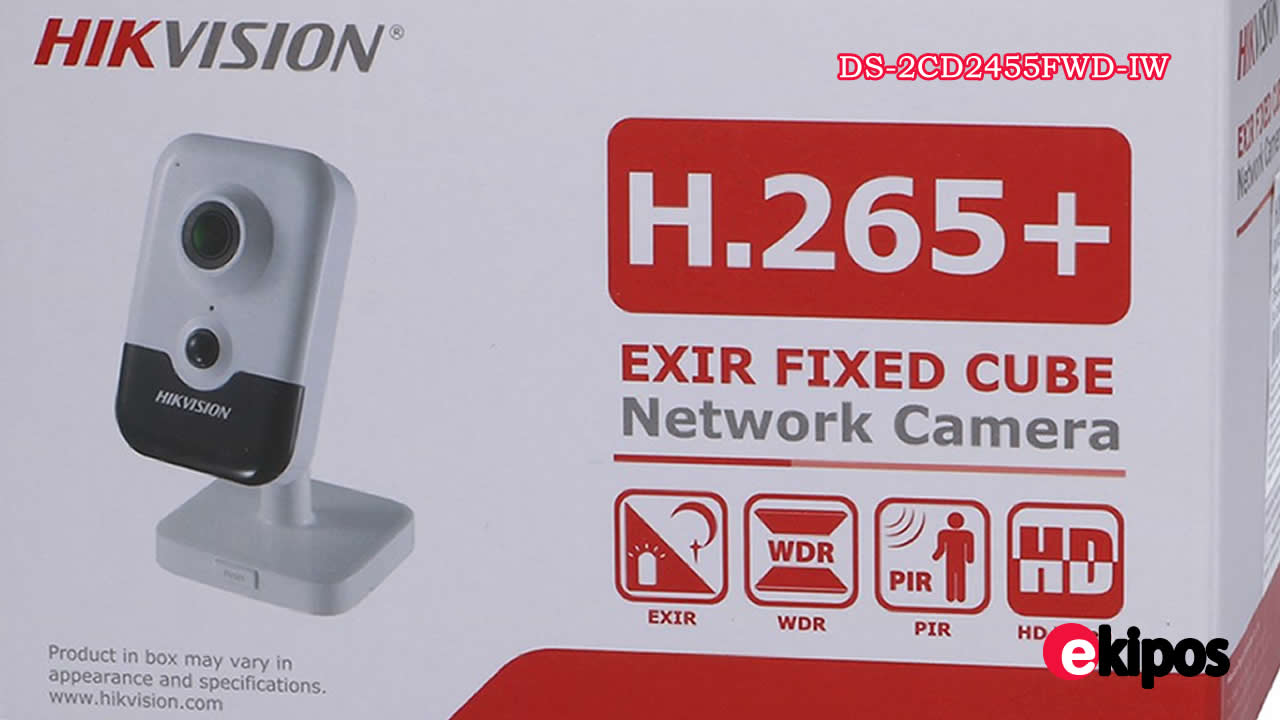

Hikvision DS-2CD2455FWD-IW 5MP Wi-Fi Network Cube Camera with Night Vision & 2.8mm Lens
Código: 3514
5 MP Indoor Audio Fixed PIR Cube Network Camera
High quality imaging with 5 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Provides real-time security through built-in two-way audio
Detects human body through passive infrared sensitive to body temperature (PIR)
-W: Wi-Fi connection
ekipos.com
-
Camera
Lens
Illuminator
PIR
Video
Audio
Smart Feature-Set
Wi-Fi
Network
Interface
Compression Standard
Smart Feature-Set
General
Camera
Image Sensor
1/2.9" Progressive Scan CMOS
Min. Illumination
Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Day &Night
IR Cut Filter
Wide Dynamic Range
120 dB
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
DNR
3D DNR
Lens
Lens
2.8 mm
Aperture
F1.6
Focus
Fixed
FOV
Horizontal FOV: 97°, vertical FOV: 54°, diagonal FOV: 113°
Lens Mount
M12
Illuminator
IR Range
10 m
Wavelength
850 nm
PIR
PIR Angle
Horizontal: 90°, vertical: 80°
PIR Range
10 m
Video
Max. Resolution
2944 × 1656
Main Stream
50Hz: 20 fps (2944 × 1656)
25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (2944 × 1656)
30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream
50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Third Stream
50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)
Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type
Main Profile/High Profile
H.265 Type
Main Profile
Video Bit Rate
32 Kbps to 16 Mbps
SVC
Support H.264 and H.265 encoding
Audio
Audio Compression
G722.1/G711/G726/MP2L2/PCM
Audio Bit Rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Environment Noise Filtering
Yes
Audio Sampling Rate
8kHz/16kHz/32kHz/44.1kHZ/48kHz
Smart Feature-Set
Behavior Analysis
Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
Region Of Interest
Support 1 fixed region for main stream and sub-stream separately
Image Enhancement
BLC/3D DNR/HLC
Image Setting
Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Day/Night Switch
Day/Night/Auto/Schedule
Wi-Fi
Frequency
2.412 GHz to 2.4835 GHz
Channel Bandwidth
20/40 MHz
Security
WPA, WPA2
Transfer Rate
11b: 11 Mbps
11g: 54 Mbps
11n: up to 150 Mbps
Wireless Range
50 m
Wireless Standards
IEEE 802.11b/g/n
Network
Network Storage
Support microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR
API
ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users. 3 levels: administrator, operator and user
Client
iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser
Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login
Interface
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
Audio
1 built-in mic, 1 built-in speaker, mono sound
On-Board Storage
Built-in microSD/SDHC/SDXC slot, up to 128 GB
Compression Standard
H.264+
Main stream supports
H.265+
Main stream supports
Smart Feature-Set
Face Detection
Yes
Exception Detection
Scene change detection
General
Firmware Version
V5.5.80
Reset
Yes
Startup And Operating Conditions
-10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 20%, PoE (802.3af, class 3)
Power Consumption And Current
12 VDC, 0.47 A, max. 7 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7 W
Material
Plastic
Dimensions
102.8 mm × 65.2 mm × 32.6 mm (4.05" × 2.57" × 1.28")
Camera: Approx. 128 g (0.28 lb.)
-
