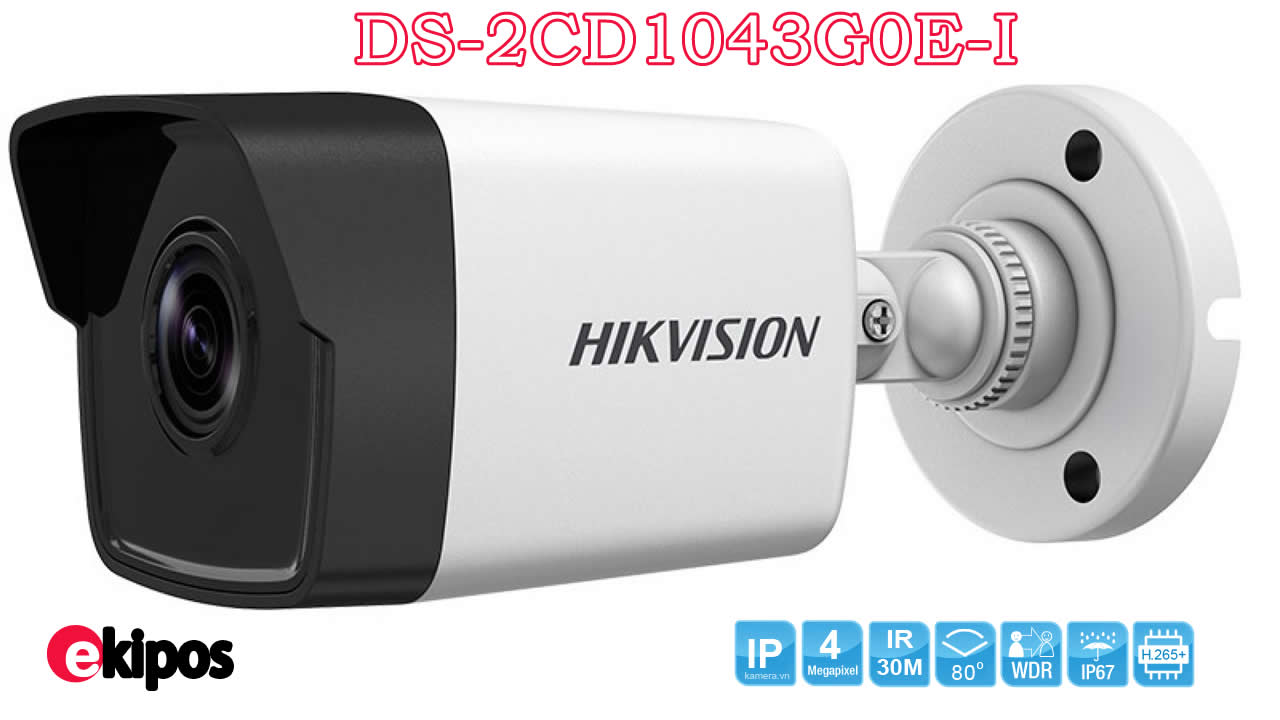

Hikvision DS-2CD1043G0E-I Cámara exterior 4 MP, IR 30 m, 2.8 mm
Código: 3513
4 MP Fixed Bullet Network Camera
High quality imaging with 4 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light with 120 dB WDR
Water and dust resistant (IP67)
EXIR 2.0, advanced infrared technology with long IR distance
ekipos.com
-
Camera
Lens
Illuminator
Video
Smart Feature-Set
Network
Interface
Approval
General
Camera
Image Sensor
1/3" Progressive Scan CMOS
Min. Illumination
Color: 0.028 Lux @ (F2.0, AGC ON)
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Day &Night
IR Cut Filter
Wide Dynamic Range
Digital WDR
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
Lens
Lens
Fixed lens, 2.8/4 mm
Aperture
F2.0
FOV
2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°
4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°
Lens Mount
M12
Illuminator
IR Range
Up to 30 m
Wavelength
850nm
Video
Max. Resolution
2560 × 1440
Main Stream
50Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
Sub Stream
50Hz: 20fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 20fps (640 × 480, 640 × 360, 320 × 240)
Video Compression
Main stream: H.265+/H.264+/H.265/H.264
Sub-stream: H.265/H.264/MJPEG
H.264 Type
Baseline Profile/Main Profile
H.265 Type
Main Profile
Video Bit Rate
32 Kbps to 8 Mbps
Smart Feature-Set
Basic Event
Motion detection, video tampering alarm, exception (illegal login)
Region Of Interest
1 fixed region for main stream
Linkage Method
Upload to FTP, notify surveillance center, send email
Image Enhancement
BLC, HLC, 3D DNR
Image Setting
Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
Day/Night Switch
Day/Night/Auto/Schedule
SNR
> 50dB
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
API
ONVIF (PROFILE S), ISAPI, SDK
Security
Password protection, complicated password, IP address filter, Watermark, HTTPS encryption, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, 802.1X authentication (EAP-MD5)
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users,3 levels: Administrator, Operator and User
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
IE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11
Interface
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
Approval
EMC
47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
Safety
UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1
Chemistry
2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
Protection
Ingress protection: IP67 (IEC 60529-2013)
General
General Function
Anti-flicker, heartbeat, mirror, privacy mask
Reset
Reset via web browser and client software
Startup And Operating Conditions
-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, ? 5.5 mm coaxial power plug, reverse polarity protection; PoE (802.3af, class 3)
Power Consumption And Current
12 VDC, 0.35 A, max. 4.2 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 4.2 W
Material
Front cover: metal, back cover: plastic
Dimensions
Camera: 66.2 mm × 67.8 mm × 177.6 mm (2.6" × 2.7" × 7")
With package: 216 × 121 × 118 mm (8.5 × 4.8" × 4.6")"
Camera: approx. 280 g (0.6 lb.)
-
