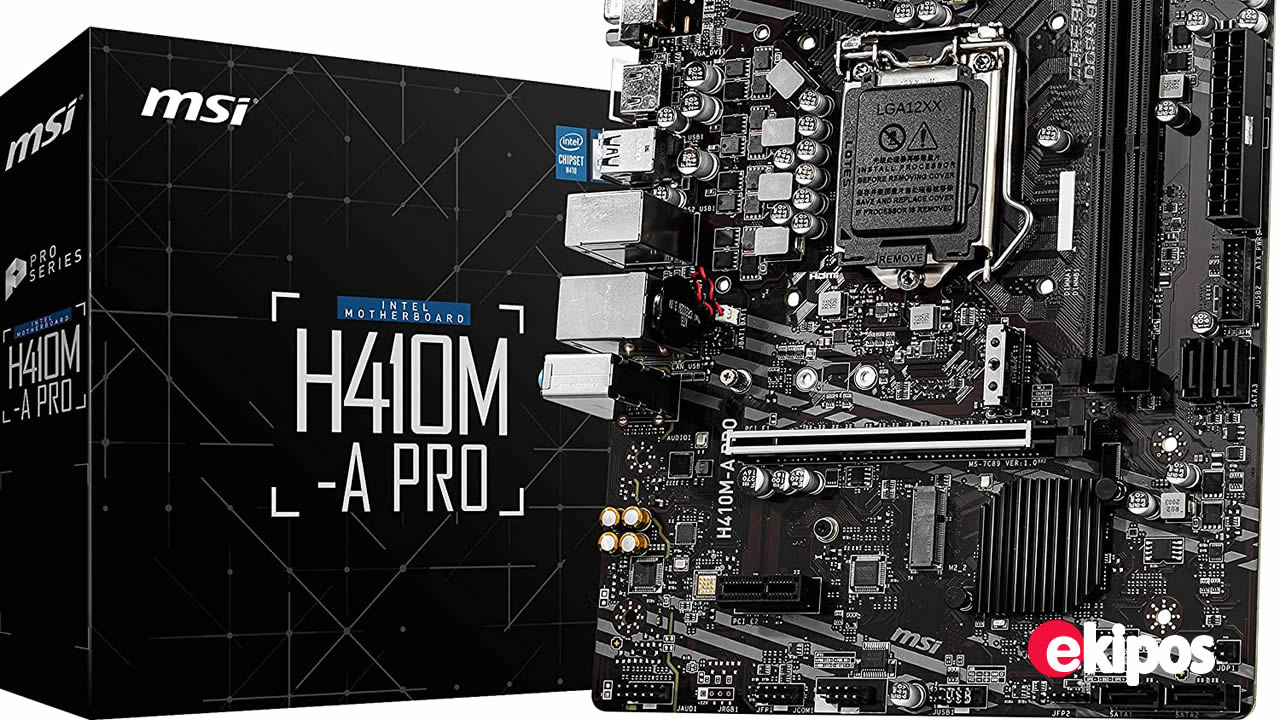

MSI H410M-A PRO

MSI H410M-A PRO ProSeries (mATX, 10ª generación Intel Core, LGA 1200 Socket, DDR4, Ranura M.2, USB 3.2 Gen 1, LAN 2.5G, DVI/HDMI)
Código: 3363 | Garantía:12 meses | Peso:kg. 1.00

Producto Agotado

No disponible, descontinuado.

Ingrese para ver precios

111087 7044 Compartir

« Anterior Producto Siguiente »

Placas madre | MSI H410M-A PRO | Ekipos | 72044155
MSI H410M-A PRO ProSeries (mATX, 10ª generación Intel Core, LGA 1200 Socket, DDR4, Ranura M.2, USB 3.2 Gen 1, LAN 2.5G, DVI/HDMI)
Marca MSI
Zócalo de CPU LGA 1200
Tecnología de memoria RAM DDR4
Procesadores compatibles Intel Celeron, Intel Pentium
Tipo de set de chips Intel H410
Velocidad de memoria 2933 MHz
Plataforma Windows
Memoria RAM capacidad máxima 64 GB
Interfaz de tarjeta de gráficos PCI-E
Ranuras de memoria disponibles 2

Compatible con procesadores Intel Core de 10ª generación / Pentium Celeron para enchufe LGA 1200.
Soporta memoria DDR4 de hasta 2933 MHz.
Core Boost: con diseño premium y diseño de potencia digital para soportar más núcleos y proporcionar un mejor rendimiento.
DDR4 Boost: tecnología avanzada para ofrecer señales de datos puras para el mejor rendimiento y estabilidad.
Armadura de acero: protege las tarjetas VGA contra la flexión y EMI para un mejor rendimiento, estabilidad y resistencia.

Especificaciones |
Processor

Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA 1200 socket1 2

Please go to www.intel.com for more compatibility information.
Onboard graphics output are disabled when using F SKU processors.

See supported processors
Chipset

Intel® H410 Chipset
Memory

2x DDR4 memory slots, support up to 64GB1
Intel® Core™ i7/ i9
Supports up to DDR4 2933 MHz
Intel® Core™ i5 and below
Supports up to DDR4 2666 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

Please refer www.msi.com for more information on compatible memory.

See supported memory
Expansion Slot

1x PCIe 3.0 x16 slot (From CPU)
1x PCIe 3.0 x1 slot (From PCH)
1x M.2 slot with E key for WiFi module only

Onboard Graphics

1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz
1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz

Storage
Intel® H410 Chipset

4x SATA 6Gb/s ports
1x M.2 slot (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices

USB
Intel® H410 Chipset

4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)

Audio
Realtek® ALC892/ALC897 Codec

7.1-Channel High Definition Audio

LAN

1x Intel® I219V Gigabit LAN controller

Internal connectors

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x Front panel connectors
1x Serial port connector
1x TPM module connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
4x EZ Debug LED

Back panel ports

Keyboard / Mouse
LAN
DVI-D
HDMI
USB 3.2 Gen 1 5Gbps Type-A
USB 2.0
USB 2.0
Audio Connectors

MSI Z490-A PRO back panel ports
Dimensions

Mirco-ATX Form Factor
9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)

Mounting

6 mounting holes
Operating System

Support for Windows® 10 64-bit
