ASUS ROG Strix B450-F |
Ekipos |
72044155
60587770

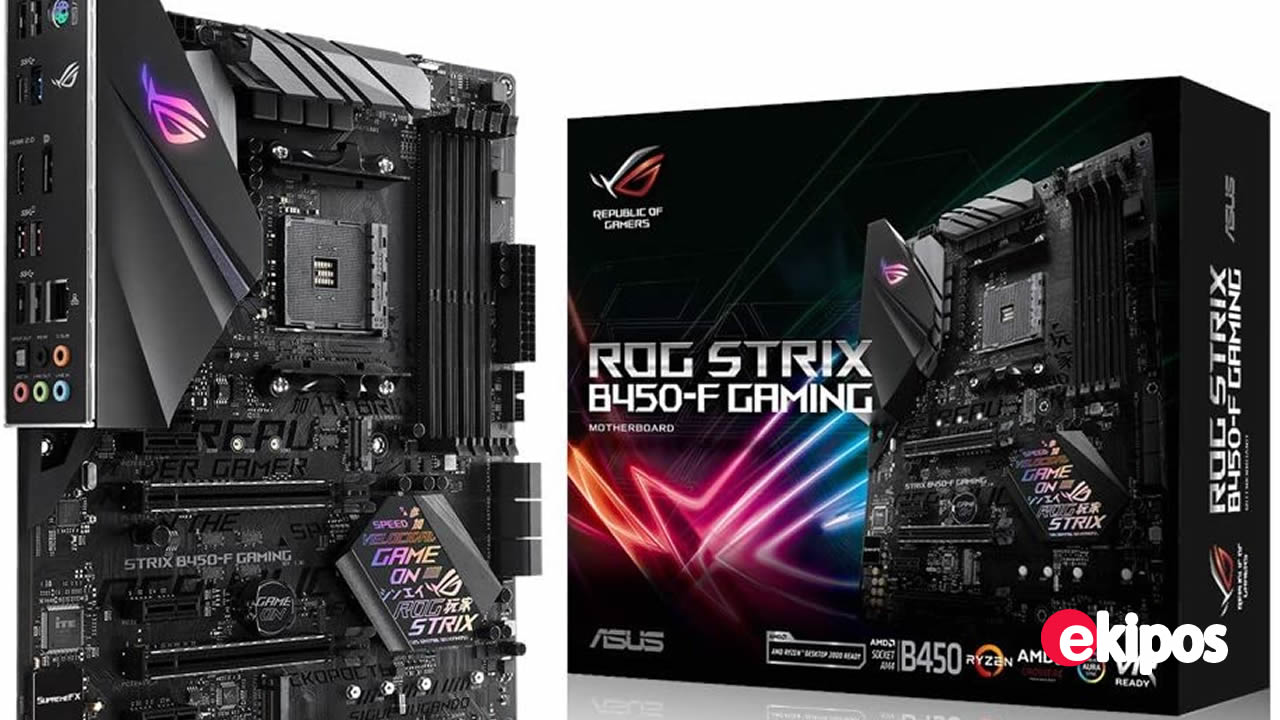

ASUS ROG Strix B450-F placa base para juegos (ATX) AMD Ryzen 2 AM4 DDR4 DP HDMI M.2 USB 3.1 Gen2 B450
Código: 3360
Marca ASUS
Zócalo de CPU Socket TR4
Tecnología de memoria RAM DDR4
Procesadores compatibles AMD 2nd Gerenration Ryzen, AMD Athlon
Tipo de set de chips AMD B450
Velocidad de memoria 3200 MHz
Plataforma Windows 10
Series ROG STRIX B450-F GAMING
Capacidad de almacenamiento de memoria 64 GB
Interfaz de tarjeta de gráficos Integrado
Enchufe AMD AM4: el emparejamiento perfecto para CPU AMD Ryzen de 3ª/2ª/1ª generación
Conectividad para juegos: Dual M.2 y USB 3.1 Gen 2 conectores tipo A.
Red de juegos: Intel Gigabit Ethernet, además de las tecnologías ASUS LANGuard y GameFirst.
Optimización de 5 vías: sintonización automatizada de todo el sistema, proporcionando perfiles de overclocking y refrigeración que están hechos a medida para tu aparejo.
Aura Sync RGB: sincroniza la iluminación LED con una amplia cartera de equipo de PC compatible.
Audio para juegos: SupremeFX S1220A equipos con Sonic Studio III para crear un paisaje aural que te atrae más profundamente en la acción.
Gamers Guardian: escudo I/O premontado, ASUS SafeSlot y componentes premium para máxima resistencia
Asegúrate de que tu BIOS esté actualizada si instalas una CPU compatible de la serie Ryzen 5000. Visita la búsqueda del sitio ASUS por el nombre del modelo de la placa base, haz clic en la pestaña "Soporte", controladores y herramientas, a continuación, BIOS y Firmware para descargar la última BIOS
ekipos.com
Especificaciones |
-
CPU
AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors
* Refer to www.asus.com for CPU support list
Chipset
AMD B450
Memoria
AMD Ryzen™ Processors
4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Gráficos
Integrated in the AMD Ryzen™ with Radeon™ Vega Graphics Processors
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
Multi-VGA output support : HDMI/DisplayPort ports
- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
Soporte Multi GPU
AMD Ryzen™ 2nd Generation/Ryzen™ 1st Generation Processors
Supports AMD 3-Way CrossFireX™ Technology
Slots de Expansión
AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
2 x PCIe 3.0/2.0 x16 (x16 or x8/x4)
AMD Ryzen™ with Radeon™ Vega Graphics Processor
AMD B450 chipset
1 x PCIe 2.0 x16 (max at x4 mode) *1
3 x PCIe 2.0 x1
1 x PCIe 3.0/2.0 x16 (x8 mode)
Almacenamiento
AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors : *2
1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*3
1 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4
AMD Ryzen™ with Radeon™ Vega Graphics Processor : *2
AMD B450 chipset :
4 x SATA 6Gb/s port(s),
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*3
2 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
LAN
Intel® I211-AT, 1 x Gigabit LAN Controller(s)
Anti-surge LANGuard
ROG GameFirst Technology
Audio
- Supports up to 32-Bit/192kHz playback *5
ROG SupremeFX8-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality120dBSNR stereo playback outputand113dBSNR recording input
- SupremeFX Shielding Technology
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link
Audio Feature :
- Optical S/PDIF out port(s) at back panel
Puertos USB
3 x USB 3.1 Gen 1 port(s) (3 at back panel, blue)
1 x USB 3.1 Gen 1 port(s) (1 at back panel, , Type-C)
2 x USB 3.1 Gen 2 port(s) (2 at back panel, red)
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation :
AMD B450 chipset :
2 x USB 3.1 Gen 1 port(s)
6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
Caracteristicas Overclocking
ROG RAMCache II
ROG CPU-Z
Pre-mounted I/O Shield
Overwolf
GameFirst IV
Caracteristicas Especiales
- ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports
- ASUS Grid
Turbo APP
- featuring system performance tuning for selected applications
Digi+VRM
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
TPU
- Auto Tuning, TurboV, GPU Boost
Gamer´s Guardian:
- DRAM Overcurrent Protection
5-Way Optimization by Dual Intelligent Processors 5
Fan Xpert4
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
- Highly Durable components
- SafeSlot
ASUS EPU :
- EPU
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Puertos I/O Traseros
2 x USB 3.1 Gen 2 (red)Type-A,
4 x USB 3.1 Gen 1 (blue) ,
2 x USB 2.0
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x Optical S/PDIF out
5 x Audio jack(s)
Internal I/O
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x TPM header
2 x Aura RGB Strip Headers
6 x SATA 6Gb/s connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Thermal sensor connector(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x COM port(s) connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
Sistema Operativo
Windows® 10 64-bit
Factor de forma
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
ATX Form Factor
-
