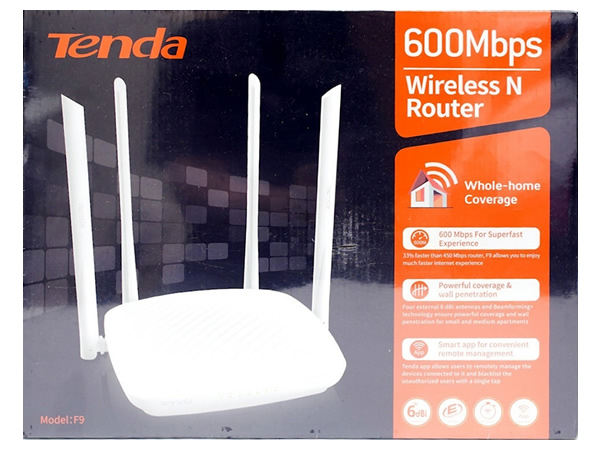

Tenda F9 Router 600M Whole-Home Coverage Wi-Fi Router

TENDA F9 Router 600M Whole-Home Coverage Wi-Fi Router
Código: 2642 | Garantía:12 meses | Peso:kg. 1.00

Producto Agotado

No disponible, descontinuado.

Ingrese para ver precios

Tenda F9 Router 600M Whole-Home Coverage Wi-Fi Router

111099 7063 Compartir

+ Tenda | Similares (57) | Redes de datos | Ultimos

« Anterior Producto Siguiente »

Routers | Tenda F9 Router 600M Whole-Home Coverage Wi-Fi Router | Ekipos | 72044155
TENDA F9 Router 600M Whole-Home Coverage Wi-Fi Router
Tenda F9 600Mbps High Speed and whole-home coverage Wi-Fi router,Compared to 450Mbps and 300Mbps products, it’s transmission is more efficient and smooth,It support Smartphone APP remote management, you can manage your device at anytime and anywhere. 4*6dBi High-gain omnidirectional antennas, incredible Wi-Fi coverage and reliability
Standard&Protocol
IEEE802.11b,IEEE 802.11g, IEEE 802.11n
Interface
1*10/100/100Mbps WAN port, 3* 10/100/100Mbps LAN ports
Button
1*WPS/RST,1*WIFI
Indicator
SYS ?WiFi? 1? 2? 3? WAN ? WPS
Chipset
Realtek
Flash
2MB
Memory
16MB
Output Power
9V1A
Plug Type
Chinese-standard
American-standard
British-standard
European-standard
Power Consumption
No-load 1.66W
Full-load 1.98W
Dimension
171.3mm*171.3mm*36.4mm
Temperature
Operating Temperature:0ºC~40ºC
Storage Temperature:-40~70?
Humidity
Operating Humidity:10%~90%, non-condensing
Storage Humidity:5%~90%, non-condensing
Modulation
802.11b: DSSS ( DBPSK / DQPSK / CCK )
802.11g: OFDM ( BPSK / QPSK / 16QAM / 64QAM )
802.11n: OFDM ( BPSK / QPSK / 16QAM / 64QAM )
802.11n: OFDM ( BPSK / QPSK / 16QAM / 64QAM / 256QAM )
Data Rate
802.11b : 11 Mbps
802.11g : 54 Mbps
802.11n : 450Mbps
802.11n (256QAM): 600Mbps
Frequency
2.4~2.4835 GHz
Power
802.11b-1M: 21.5 dBm ± 1.5 dBm
802.11g-54M: 17.5 dBm ± 1.5 dBm
802.11n-MCS7: 17 dBm ± 1.5 dBm
802.11n-VHT: 15 dBm ± 1.5 dBm
Reception Sensitivity
802.11b-1M: -95 dBm /802.11g-54M: -74 dBm / 802.11n-MCS7: -72 dBm/ 802.11n-VHT: -62 dBm
150Mbps?-70 Bm@10% PER
108Mbps?-73 dBm@10% PER
54Mbps?-74 dBm@10% PER
11Mbps?-86 dBm@8% PER
6Mbps?-90 dBm@10% PER
1Mbps?-95 dBm@8% PER
Antenna
4*6dBi external non-detachable
Package Content
Refer to Quick Installation Guide and User Manual
Standard Version
RFC768 UDP
RFC791 IP
RFC792 ICMP
RFC793 TCP
Channel Bandwidth: 20MHz?20/40MHz
Working Mode
Router?WISP?Universal Reader?AP
Wireless Security
WPA-PSK/WPA2-PSK?WPA?WPA2
DHCP Server
Support
System Tool
Internet time?Backup/Recovery?Upgrade
Reset to Factory Default
Login Password
System Log
Reboot
System Requirements
windows 2000
IE 5.0 or Firefox1.0 or higher
Network Adapter
