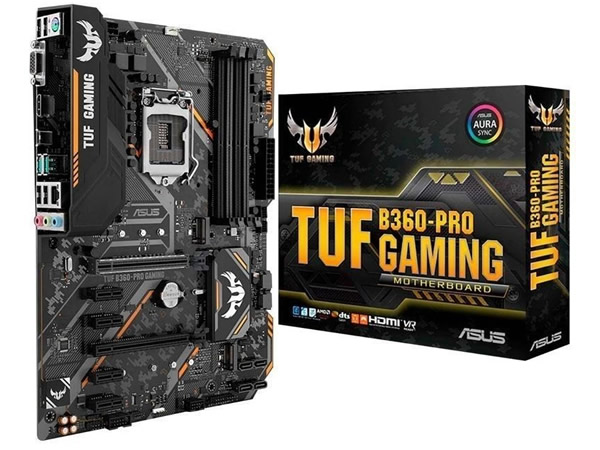

ASUS TUF B360-PRO GAMING (WI-FI) |
Ekipos |
72044155
60587770
Tarjeta madre Intel B360 ATX gaming con iluminación LED Aura Sync RGB, soporte DDR4 a 2666MHz, 32Gbps M.2, listo para Intel Optane memory, y USB 3.1 Gen 2 nativo.
Código: 2506
Detección de temperatura del GPU con Fan Xpert 4 Core: Garantiza que cada ventilador logre el mejor equilibrio entre refrigeración y acústica
TUF Protection: SafeSlot, ESD Guards, protección sobre voltaje en DDR4, Digi+ VRM, y un panel traserio I/O de acero inoxidable para mayor durabilidad
Componentes de grado militar TUF: TUF LANGuard, TUF Chokes, Capacitores TUF, y MOSFETs TUF MOSFETs para una máxima durabilidad
Intel WI-FI: El último adaptador integrado 802.11ac Inalámbrico-AC 9560, con MU-MIMO 2x2y canales anchos de 160MHz para transferencias de hasta 1.73Gbps
Audio personalizado DTS® exclusivo: Ofrece señales de posición para audífonos estéreo, lo que te ayuda a identificar a tus enemigos en la acción
Aura Sync RGB: Sincroniza la iluminación LED con una amplia gama de equipos/accesorios compatibles
ekipos.com
Guia de referencia |
-
CPU
Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset
Intel® B360
Memoria
4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory *1
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.
Gráficos
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/D-Sub ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Soporte Multi GPU
Supports AMD 2-Way CrossFireX Technology
Slots de Expansión
1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
4 x PCIe 3.0/2.0 x1
Almacenamiento
Intel® B360 Chipset :
1 x M.2 Socket 3*2, , with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s), gray
Intel® Optane™ Memory Ready
LAN
Intel® I219V, 1 x Gigabit LAN Controller(s)
ASUS Turbo LAN Utility
TUF LANGuard
Datos de redes inlámbricas
Wi-Fi 802.11 a/b/g/n/ac*3
Supports MU-MIMO
Supports dual band frequency 2.4/5 GHz+ 60GHz
Bluetooth
Bluetooth® 5.0
Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- Exclusive DTS Custom for GAMING Headsets.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.
Puertos USB
Intel® B360 Chipset :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, )
Intel® B360 Chipset :
3 x USB 3.1 Gen 1 port(s) (1 at back panel, , Reversible, 2 at mid-board)
Intel® B360 Chipset :
6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)
Caracteristicas Especiales
ASUS TUF PROTECTION
- ASUS SafeSlot: Protect your graphics card Investment
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI + VRM: 4+2+1 Phase digital power design
- ASUS Overvoltage Protection: World-class circuit-protecting power design
ASUS EPU :
- EPU
TUF ENGINE! Power Design :
- TUF Components (Choke, Cap. & MOSFET; certified by military-standard)
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 4 Core
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
CPU Installation Tool
- Three-step simplicity and safety
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Puertos I/O Traseros
1 x PS/2 keyboard/mouse combo port(s)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
1 x 5Gb/s port(s) USB Type-CTM
2 x USB 3.1 Gen 2 (teal blue)Type-A,
4 x USB 2.0
3 x Audio jack(s)
2 x Wi-Fi antenna port(s)
Internal I/O
1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x AIO_PUMP connector
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
Accessorios
Users manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x TUF Gaming Sticker
1 x TUF Certification card(s)
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Capacidad de gestión
WfM 2.0, DMI 3.0, WOL by PME, PXE
Disco Soporte
Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)
Sistema Operativo
Windows® 10 64-bit
Factor de forma
ATX Form Factor
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
-
