Dahua XVR1B04-I
Código: 5100 | Garantía:12 meses | PB:kg. 1.00
Disponible
Confirmado el pago, la entrega se realiza en la ciudad y plazo indicado en proforma.
+ Dahua | + Grabadoras de video DVR - XVR (15) | Video Vigilancia CCTV | Ultimos
« Anterior Producto
-
Grabadoras de video DVR - XVR | Dahua XVR1B04-I | Ekipos | Celular: 60587770

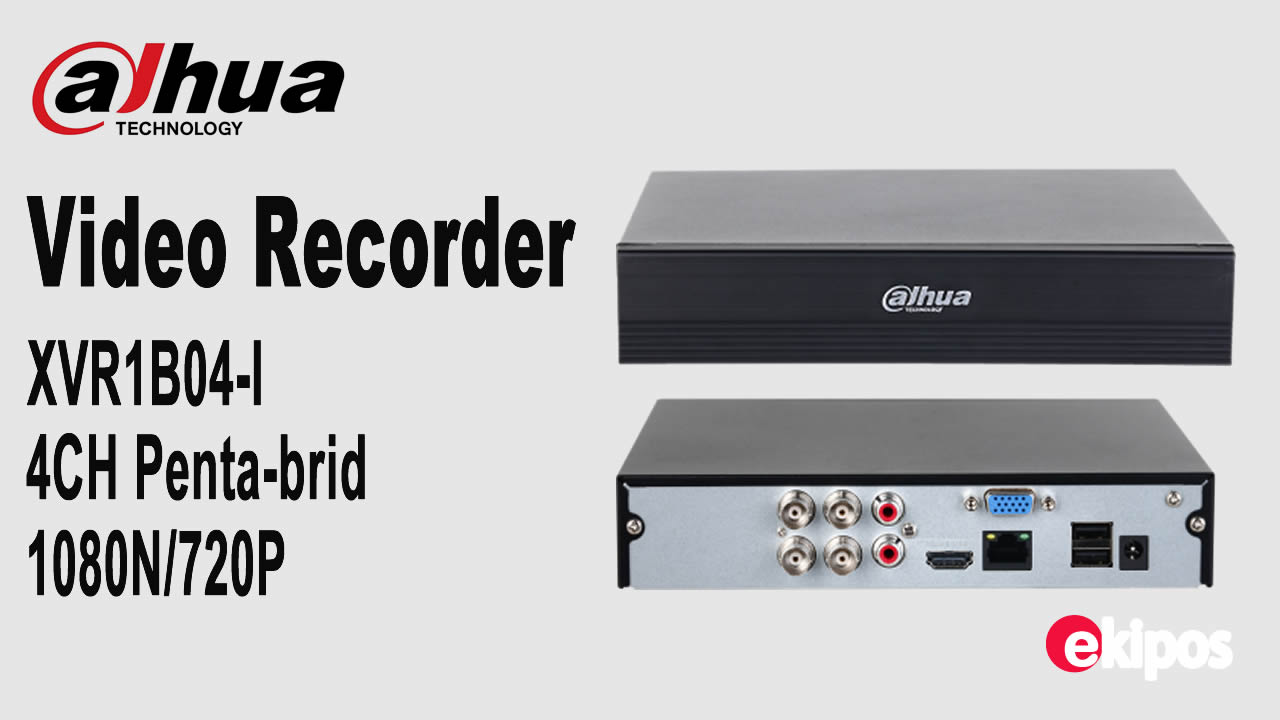

DAHUA -DH-XVR1B04-I 4CH Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder
Código: 5100
> 4-channel SMD Plus for analog channels which allows the device to trigger accurate alarms for humans and vehicles.
> 4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
> Supports HDCVI, AHD, TVI, CVBS and IP video input.
> Supports up to 5-channel IP camera input and each channel can be up to 2 MP. The incoming bandwidth reaches 20 Mbps.
> Smart H.265+ and H.265 dual-stream video compression.ekipos.com
-
System
Main Processor
Industrial-grade processor
Operating System
Embedded Linux
Operating Interface
Web; Local GUI
SMD Plus
SMD Plus by Recorder
4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input
4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input
1. CVI: 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30 fps.
2. TVI: 1080p@25/30 fps; 720p@25/30 fps.
3. AHD: 1080p@25/30 fps; 720p@25/30 fps.
IP Camera Input
Up to 5 channels of IPC access
1 IP channel by default + 4 channels (analog channels are converted to IP channels)
Incoming bandwidth: 20 Mbps, recording bandwidth: 20 Mbps and outgoing bandwidth: 20 Mbps
*After IP extension is enabled, the AI Function (SMD) will be disabled.
Encoding Capacity
Main stream: 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps)
Sub stream: CIF@(1 fps–15 fps)
Dual-stream
Yes
Video Bit Rate
32 kbps–4096 kbps
Audio Sampling
8 kHz, 16 bit
Audio Bit Rate
64 kbps
Video Output
1 HDMI, 1 VGA
HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display
When IP extension mode not enabled: 1/4
When IP extension mode enabled: 1/4/6
Third-party Camera Access
Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
Compression Standard
Video Compression
AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression
G.711a; G.711u; PCM
Network
Network Protocol
HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Mobile Phone Access
iOS; Android
Interoperability
ONVIF 22.12 (Profile T; Profile S; Profile G); CGI; SDK
Browser
Chrome; IE; Safari; Edge; Firefox
Recording Playback
Record Mode
General; alarm; motion detection
Recording Playback
1/4
Backup Method
USB device and network
Playback Mode
Instant playback; general playback; event playback; tag playback; smart playback
Alarm
General Alarm
Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm
Anomaly Alarm
Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
Intelligent Alarm
SMD Plus
Alarm Linkage
Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email

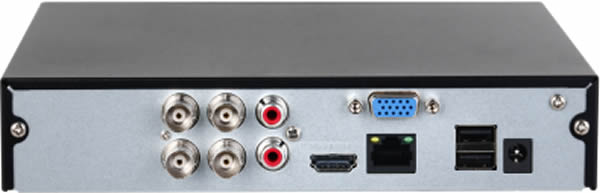

Ports
Audio Input
1-channel RCA
4-channel BNC (Coaxial Audio)
Audio Output
1-channel RCA
Two-way Talk
Yes (share the same audio input with the first channel)
Disk Interface
1 SATA port, up to 6 TB. This limit varies depending on the environment temperature.
USB
2 (2 rear USB 2.0 ports)
HDMI
1
VGA
1
Network Port
1 (10/100 Mbps Ethernet port, RJ-45)
General
Power Supply
12 VDC, 1.5 A
Power Consumption
<7 W (without HDD)
Net Weight
0.55 kg (1.19 lb)
Gross Weight
0.97 kg (2.11 lb)
Product Dimensions
197.0 mm × 203.1 mm × 41.5 mm (7.76" × 8.00" × 1.63") (W × D × H)
Packaging Dimensions
332.0 mm × 64.0 mm × 240.0 mm (13.07" × 2.52" × 9.45") (W × D × H)
Operating Temperature
–10 °C to +45 °C (+14 °F to +113 °F)
Storage Temperature
–20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity
10%–90% (RH), non-condensing
Installation
Desktop -
