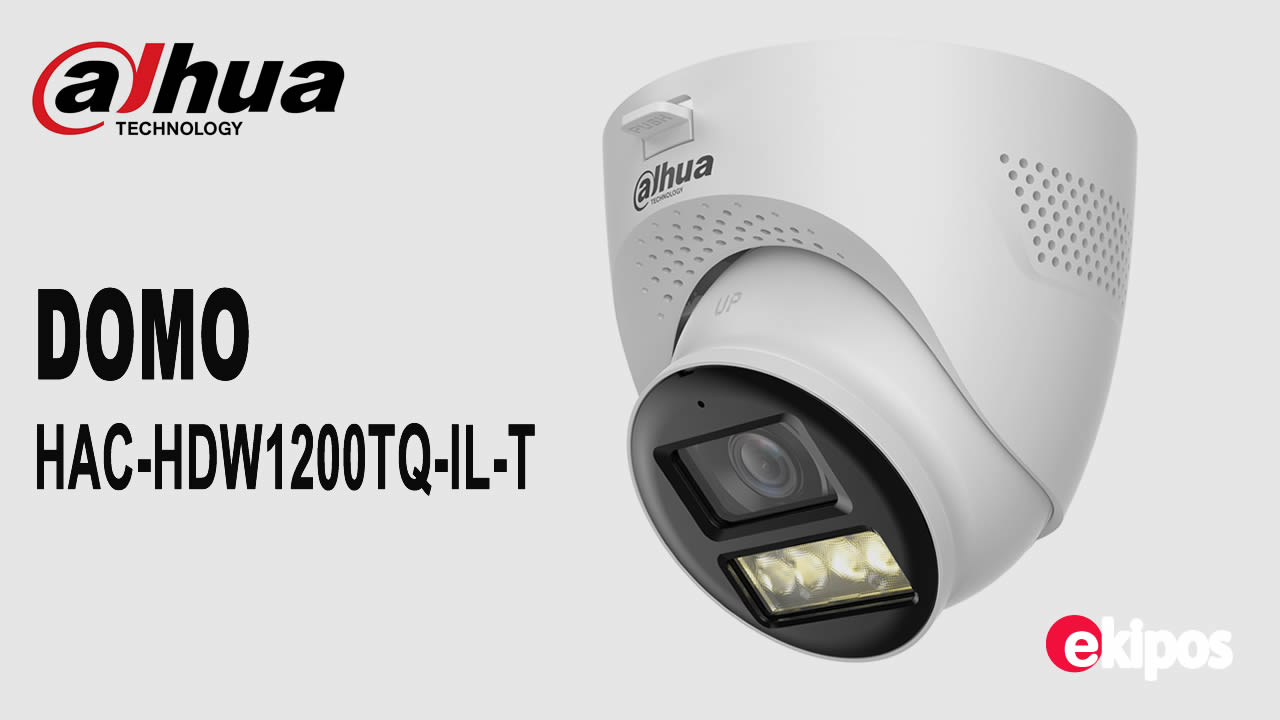

DAHUA HAC-HDW1200TQ-IL-T 2MP Smart Dual Light HDCVI Two-way Talk Fixed-focal Eyeball Camera
Código: 5099
> Max. 30 fps@1080p
> Two-way Talk
> Smart Dual Light
> Smart Light+
> 3D NR
> Quick-to-install eyeball saves installation time
> 40 m illumination distance
> 3.6 mm fixed lens (2.8 mm optional)
> CVI/CVBS/AHD/TVI switchable
> IP67, 12 VDCekipos.com
-
Camera
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) × 1080 (V)
Scanning System
Progressive
Electronic Shutter Speed
PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s
Min. Illumination
0.01 lux@F2.0 (Color, 30 IRE)
0.001 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio
>65 dB
Illumination Distance
40 m (131.23 ft)
Illuminator On/Off Control
Auto;Manual
Illuminator Number
4 (Multi-core light)
Angle Adjustment
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type
Fixed-focal
Lens Mount
M12
Focal Length
2.8 mm; 3.6 mm
Max. Aperture
F2.0
Field of View
2.8 mm: H: 111.3°; V: 60.8°; D: 134.2°
3.6 mm: H: 89°; V: 48.2°; D: 109.1°
Close Focus Distance
2.8 mm: 0.5 m (1.64 ft)
3.6 mm: 0.7 m (2.30 ft)
DORI Distance
Lens Detect Observe Recognize Identify
2.8 mm 40.6 m
( 133.20 ft) 16.2 m
( 53.15 ft) 8.1 m
( 26.57 ft) 4.1 m
( 13.45 ft)
3.6 mm 49.9 m
( 163.71 ft) 20.0 m
( 65.62 ft) 10.0 m
( 32.81 ft) 5.0 m
( 16.40 ft)
*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Video
Video Frame Rate
CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;
AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;
TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;
CVBS: PAL: 960H; NTSC: 960H
Resolution
1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night
Auto(ICR)/Color/B/W
BLC
BLC; HLC; WDR; HLC-Pro
WDR
DWDR
White Balance
Auto
Gain Control
Manual;Auto
Noise Reduction
3D NR
Illumination Mode
Smart IR&WL (CVI, TVI); WL Mode; IR Mode
Mirror
Yes
Pick-up Distance
8 m (26.25 ft)
Certification
Certifications
CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
Audio
Built-in Mic
Yes, up to 8 m (26.25 ft)
Camera Audio
CVI; TVI
Two-way Talk
Yes (CVI, TVI)
Speaker
Yes, up to 8 m (26.25 ft)
Port
Video Output
Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Power
Power Supply
12 VDC (±30%) (It is recommended to use a power adapter to supply the power for one camera)
Power Consumption
Max 9.37 W (12 VDC, IR on)
Environment
Operating Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity
<95% (RH), non-condensing
Storage Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity
<95% (RH), non-condensing
Protection
IP67
Anti-corrosion Level
Basic Protection
Structure
Casing Material
Dome (metal + plastic) + plastic enclosure
Product Dimensions
Φ109.9 mm × 105.9 mm (Φ4.33" × 4.17")
Net Weight
0.32 kg (0.71 lb)
Gross Weight
0.44 kg (0.97 lb)
Installation
Wall mount; ceiling mount; vertical pole mount
