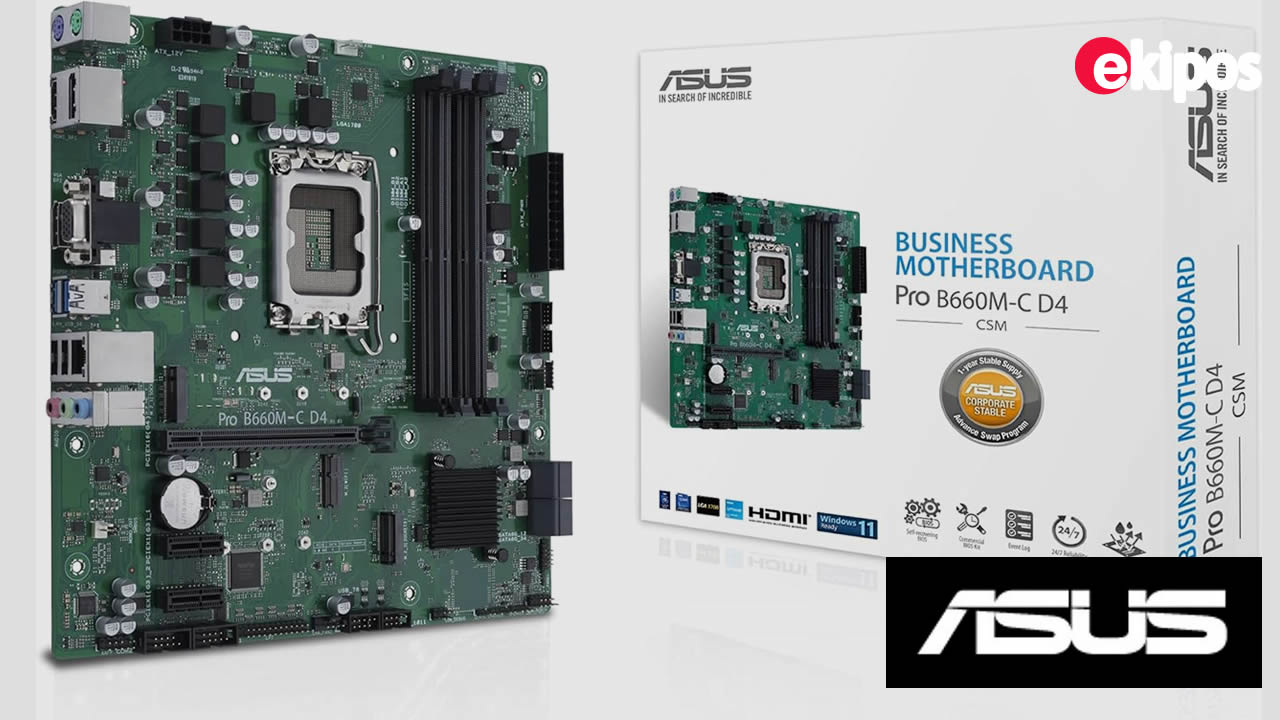

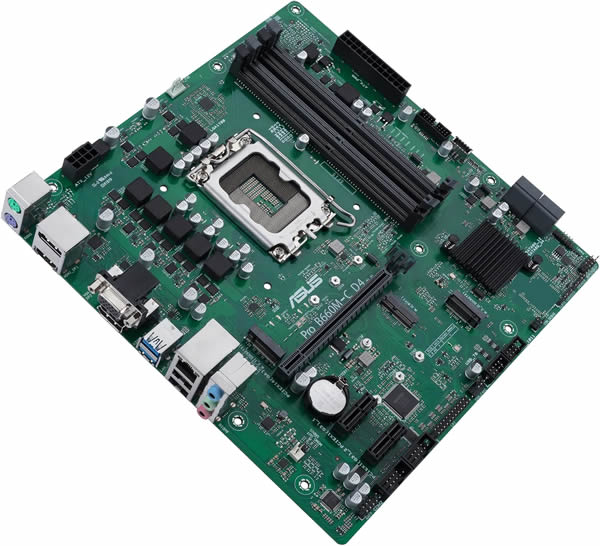

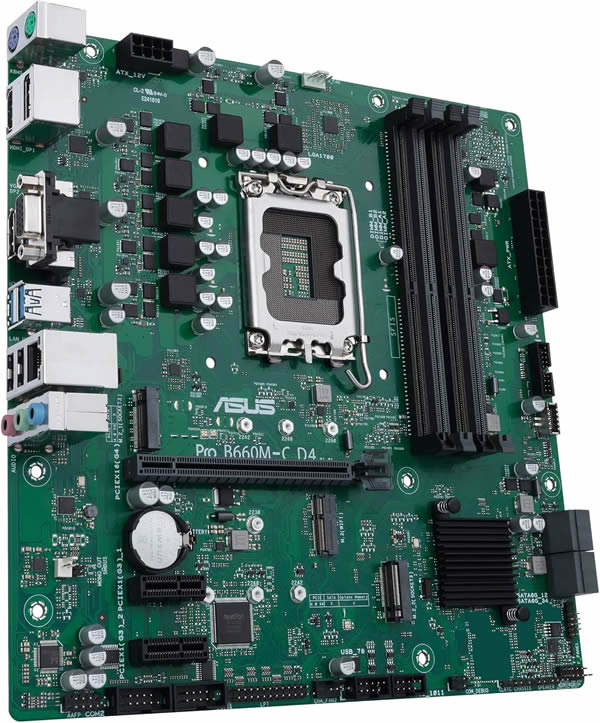

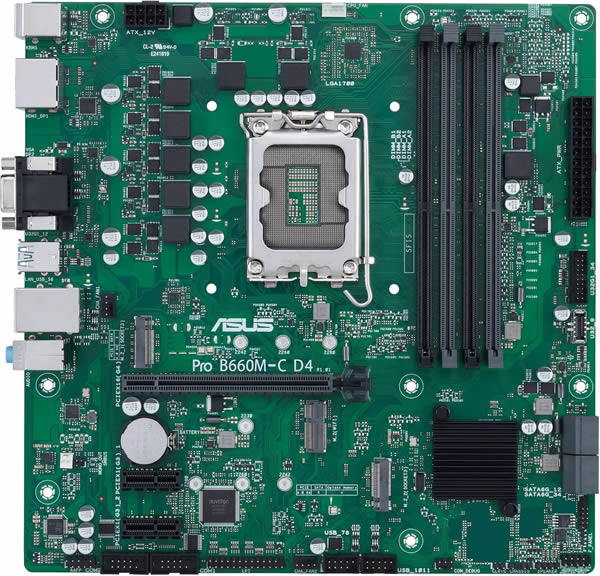

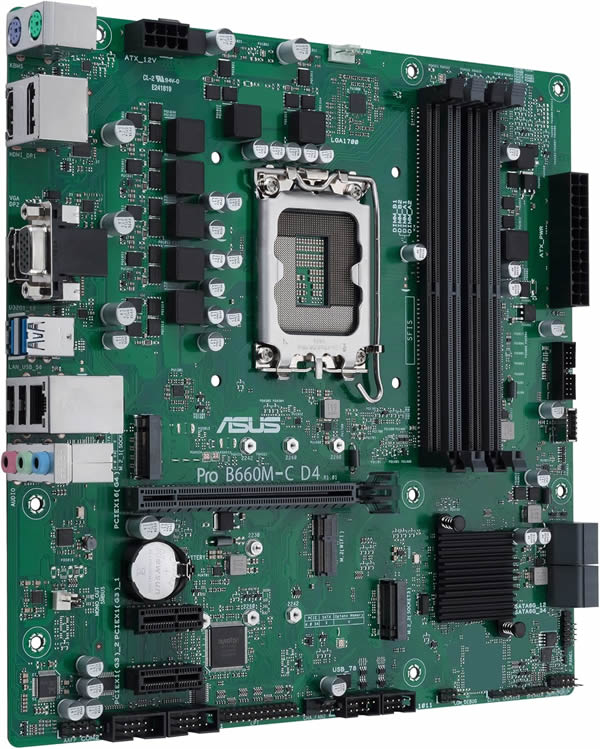

ASUS Pro B660M-C
Código: 4990 | Garantía:12 meses | PB:kg. 1.00
INTEL |
Disponible
Confirmado el pago, la entrega se realiza en la ciudad y plazo indicado en proforma.
+ ASUS | + Placas madre (26) | Partes de Estaciones de Trabajo | Ultimos
« Anterior Producto Siguiente »
-
Placas madre | ASUS Pro B660M-C | Ekipos | Celular: 60587770
ASUS Pro B660M-C D4-CSM LGA 1700 (Intel 12.ª generación) Placa base comercial Micro-ATX (PCIe 4.0, ranuras DDR4, 2xM.2, USB 3.2 frontal tipo C
Código: 4990
Marca ASUS
Zócalo de CPU LGA 1700
Dispositivos compatibles Ordenador personal
Tecnología de memoria RAM DDR4
Procesadores compatibles Intel Celeron, Intel Pentium Oro
Tipo de set de chips Intel
Velocidad de memoria del reloj 2133 MHz
Plataforma No Operating System
Nombre del modelo Pro B660M-C D4-CSM
Modelo de CPU Pentium
Socket Intel LGA 1700: listo para procesadores Intel Core, Pentium Gold y Celeron de 12ª generación
Conectividad ultrarrápida: PCIe 4.0, USB 3.2 Gen 1 tipo C frontal e Intel 1 Gb Ethernet
ASUS -exclusiva tecnología de auto-recuperación BIOS para la recuperación automática del BIOS del sistema desde una copia de seguridad verificada
Admite encabezado SMBUS que se conecta a una LAN DASH para administración remota de TI
ASUS Placa base CSM: modelo estable corporativo ASUS con suministro de hasta 36 meses, aviso EOL y control ECekipos.com
-
Model
Pro B660M-C D4-CSM
CPU
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and
Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
*Refer to www.asus.com for CPU support list.
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® B660 Chipset
Memory
4 x DIMM, Max. 128GB, DDR4 4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Optimem
*Actual Memory data rate support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics
2 x DisplayPort**
1 x D-Sub port
1 x HDMI® port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
Intel® Core™ Processors (14th & 13th & 12th Gen)*
1 x PCIe 4.0/3.0 x16 slot
Intel® B660 Chipset
2 x PCIe 3.0 x1 slots
Storage
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Core™ Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280
- Intel® 12th Gen processors support PCIe 4.0 x4 mode
Intel® B660 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
Ethernet
1 x Intel® 1Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
M.2 slot only (Key E, CNVi & PCIe)*
*Wi-Fi module is sold separately.
USB
Rear USB (Total 4 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (suppports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback "
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
2 x DisplayPort
1 x HDMI® port
1 x D-Sub port
1 x Intel® 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 keyboard (purple) port
1 x PS/2 mouse (green) port
Internal I/O Connectors
Fan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (suppports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
2 x COM Port headers
1 x Front Panel Audio header (AAFP)
1 x COM debug header
1 x LPT header
1 x Mono-out header(with Amp IC)
1 x M.2 slot (Key E)
1 x SMBUS header
1 x Speaker header
1 x 10-1 pin System Panel header
Special Features
ASUS EZ DIY
- Box Headers
Bespoke Motherboard Design & Business Focused Features
- Q-LED Core
- ASUS Self Recovering BIOS
- ASUS Event Log
- ASUS Commercial BIOS kit
- Anti-Moisture
- 24/7 Reliability
- Overcurrent Protection
TPM IC onboard
Software Features
ASUS Exclusive Software
IT Management software supported
- ASUS Control Center Express(ACCE)
BIOS
128Mb Flash ROM
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
1 x M.2 Key E screw package
Installation Media
1 x Support DVD
Documentation
1 x ACC Express Activation Key Card
1 x User guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
microATX
24.4cm x 24.4cm -
ASUS Pro B660M-C D4-CSM LGA 1700 (Intel 12.ª generación) Placa base comercial Micro-ATX (PCIe 4.0, ranuras DDR4, 2xM.2, USB 3.2 frontal tipo C
ASUS Pro B660M-C D4-CSM LGA 1700 (Intel 12.ª generación) Placa base comercial Micro-ATX (PCIe 4.0, ranuras DDR4, 2xM.2, USB 3.2 frontal tipo C
ASUS Pro B660M-C D4-CSM LGA 1700 (Intel 12.ª generación) Placa base comercial Micro-ATX (PCIe 4.0, ranuras DDR4, 2xM.2, USB 3.2 frontal tipo C
ASUS Pro B660M-C D4-CSM LGA 1700 (Intel 12.ª generación) Placa base comercial Micro-ATX (PCIe 4.0, ranuras DDR4, 2xM.2, USB 3.2 frontal tipo C
