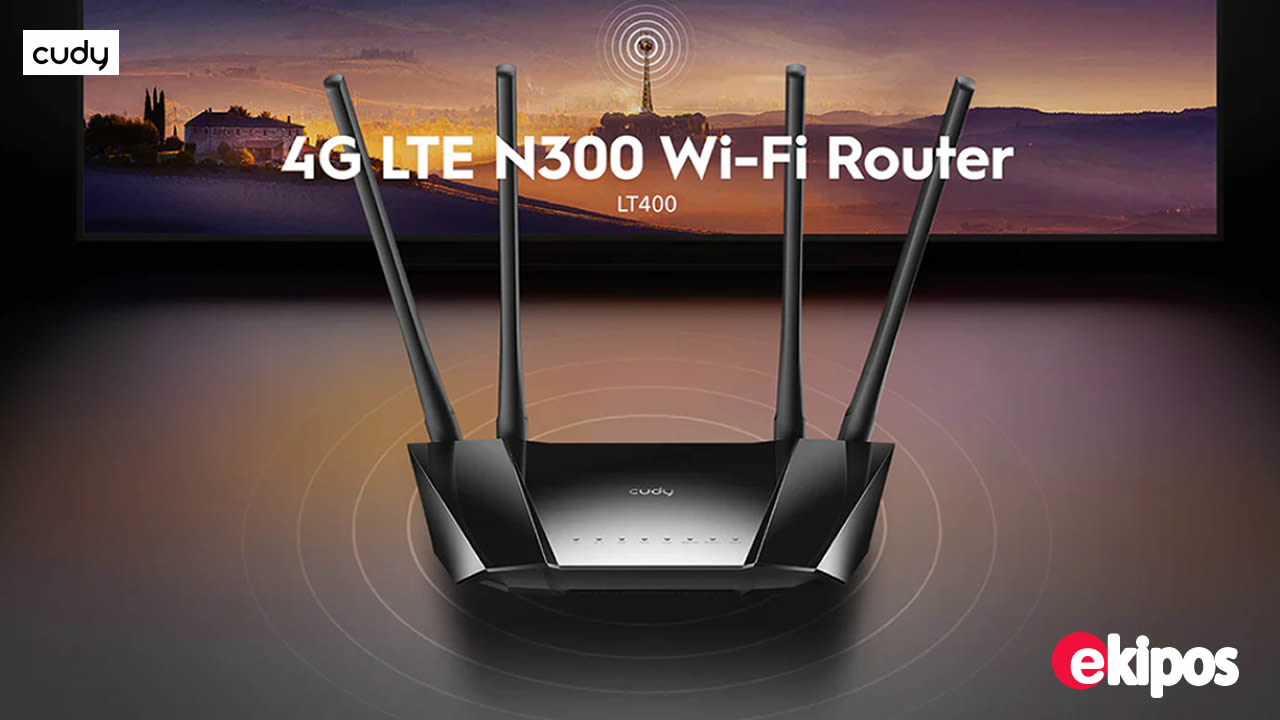

Cudy LT400 Router 4G LTE WiFi 300Mbps, Compatible con Todos los operadores, FDD y TDD, Qualcomm en el Interior, sin Necesidad de configuración, VPN, DDNS
Código: 4787
Marca Cudy
Función especial Wifi
Clase de banda de frecuencia Banda Única
Estándar de comunicación inalámbrica 802.11n, 2,4 GHz radiofrecuencia
Dispositivos compatibles Videoconsola
Frecuencia 2,4 GHz
Usos recomendados para el producto Hogar
Componentes incluidos no
Tecnología de conectividad Wifi
Tipo de antena Fijo
ekipos.com
-
Model Version LT400 2.0
CPU Chipset MT7628
CPU Details 580 MHZ Single-Core, MIPS24KEC
Memory/Storage Flash/ROM 8 MB (64 Mbit ) NOR
DDR/RAM 64 MB (512 Mbit) DDR2
Cellular Cellular Standards 4G Cat. 4
Cellular Antennas 2× Fixed
SIM Options 1× Nano SIM Slot
Available Versions EU, US, AU, CN
EU Version Cellular Suitable Region Europe, Middle East, Africa
Max DL Speed 150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
Max UL Speed 50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
Advanced DL 2×2 MIMO
Cellular Bands LTE-FDD: B1/3/5/7/8/20/28
LTE-TDD: B38/40/41
WCDMA: B1/5/8
US Version Cellular Suitable Region United States, Canada
Max DL Speed 150 Mbps
Max UL Speed 50 Mbps
Advanced DL 2×2 MIMO
Cellular Bands LTE-FDD: B2/4/5/12/13/14/66/71
WCDMA: B2/4/5
AU Version Cellular Suitable Region Latin America, Australia, New Zealand
Max DL Speed 150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
Max UL Speed 50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
Advanced DL 2×2 MIMO
Cellular Bands LTE-FDD: B1/2/3/4/5/7/8/28/66
LTE-TDD: B40
WCDMA: B1/2/4/5/8
GSM: B2/3/5/8
CN Version Cellular Suitable Region China, India
Max DL Speed 150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
Max UL Speed 50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
Advanced DL 2×2 MIMO
CN Cellular Bands LTE-FDD: B1/3/5/8
LTE-TDD:
B34/38/39/40/41
WCDMA: B1/5/8
GSM: B3/8
Wireless 2.4 GHz Wi-Fi Speed 300 Mbps
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 2× Fixed
Beamforming True
Range Performance Max: 130 m (427 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall Performance One wooden walls with thickness < 10 cm (4)
One concrete wall with thickness < 10 cm (4)
Interfaces Physical Buttons Reset Button
10/100 Mbps RJ45 Ports 4
Ethernet Notes One port supports WAN/LAN configuration, and the rest are LAN ports
LED System
Power Input DC Jack
Power Power Methods DC
DC 12V 1A
Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC
Reliability ESD Contact Protection 4kV
ESD Air Protection 8kV
Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Certifications FCC, CE
Mechanical Dimension 229×123×32.7 mm
9.02×4.84×1.29 inches
Product Weight 276 g (9.74 oz.)
Installation
Desktop
Wall-mount
Package Content
LT400
Power Adapter
Ethernet Cable
Installation Guide
Ordering Information Retail Package Weight
AU: 758 g (26.74 oz.)
EU: 775 g (27.34 oz.)
UK: 805 g (28.4 oz.)
US: 774 g (27.3 oz.)
Carton Net Weight
AU: 7.6 kg (16.76 lbs)
EU: 7.8 kg (17.2 lbs)
UK: 8.0 kg (17.64 lbs)
US: 7.8 kg (17.2 lbs)
Carton Gross Weight
AU: 8.25 kg (18.19 lbs)
EU: 8.85 kg (19.51 lbs)
UK: 9.0 kg (19.84 lbs)
US: 8.4 kg (18.52 lbs)
-
