ZEBRA Impresora RFID UHF ZD500R (203 ppp, USB/Serie/Paralelo/Ethernet)
Código: 4440

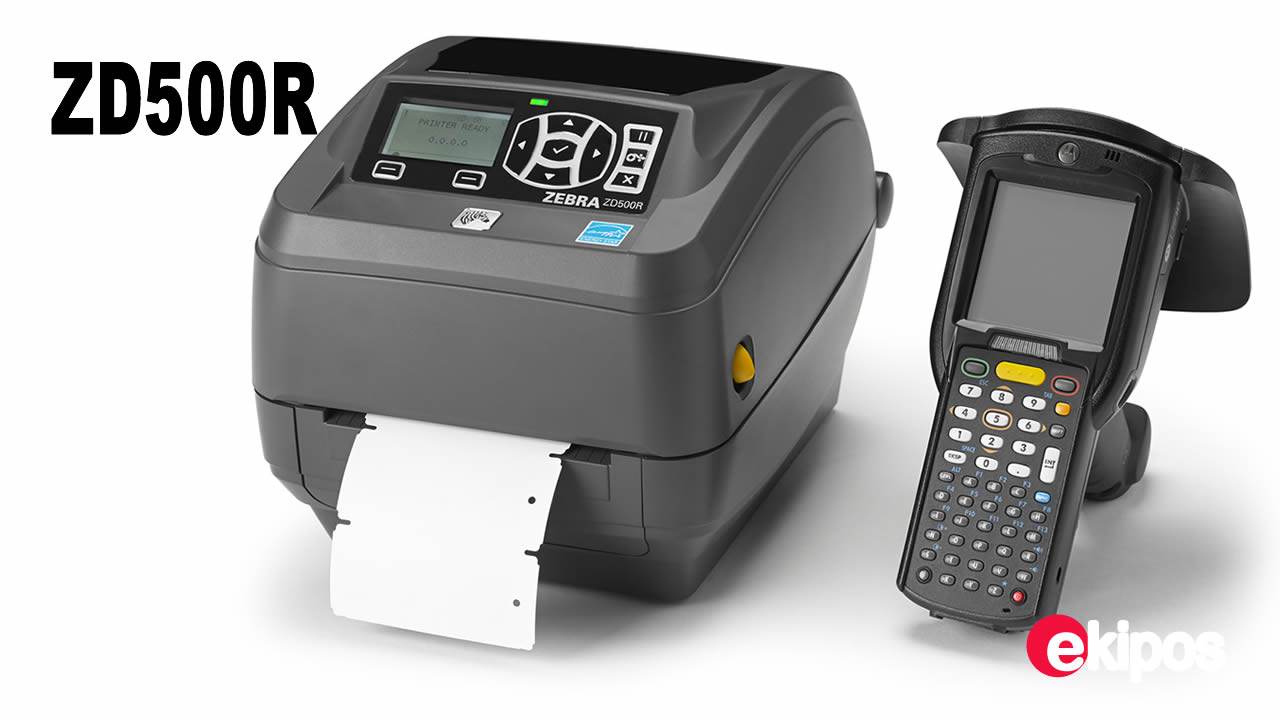

Impresora RFID ZEBRA ZD500R
- Impresión y Codificación de Etiquetas RFID (UHF) - Soporta impresión de 6 pulgadas.
- Ideal para Fábricas y Empresas de Transporte y Logística, con opción de impresión de tags RFID - Velocidad de 102 mm/ seg
- Interface USB, RS232, Red Ethernet , Wifi (Opcional)
- Resolución de Impresión de 203 dpi
ekipos.com
specifications |
-
Specifications
RFID
Supports tags compatible with UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols
Prints and encodes tags with a minimum pitch of 0.6 in./16 mm
Adaptive Encoding Technology simplifies RFID setup and eliminates complex RFID placement guidelines
RFID job monitoring tools track RFID performance
RFID ZPL commands provide compatibility with existing Zebra RFID printers
Support for industry standard multi-vendor chip-based serialization (MCS)
Supports block permalocking of user memory compatible with ATA Spec 2000
Integrated ThingMagic® RFID Reader/Encoder
Standard Features
• Print methods: Thermal transfer and direct thermal
• ZPL programming language
• Construction: Dual-wall frame
• Tool-less printhead and platen replacement
• OpenACCESS™ for easy media loading
• Quick and easy ribbon loading
• Simplified calibration of media
• Quad connectivity: USB, Parallel, Serial, and Ethernet
• Real time clock
• LCD User Interface
• Link-OS-enabled
• Print Touch app
• 3” core adapter
• ENERGY STAR qualified
• ZebraDesigner Essentials – easy label design tool free at
www.zebra.com/zebradesigner
• Two-year standard warranty
Printer Specifications
Resolution 203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional)
Memory 512 MB Flash; 256 MB SDRAM
Maximum Print Width 4.09 in./104 mm
Maximum Print Speed 6 in./152 mm per second (203 dpi)
4 in./102 mm per second (300 dpi)
Media Sensors Multi-position transmissive and full-width reflective sensors
Maximum Print Length 39.0 in./991 mm
Media Characteristics
Maximum Media Width 0.75 in./19 mm - 4.25 in./108 mm
Media Roll Size Maximum outside diameter: 5 in./127 mm
Core inner diameter: 0.5 in./12.7 mm, 1.0 in./25.4 mm, 1.375 in./35 mm, 1.5 in./38 mm, 3 in./76 mm
Media Thickness .003 in./0.075 mm to .012 in./0.305 mm
Media Types Roll-fed or fan-fed, die-cut or continuous direct thermal labels with or without black line, tag stock, continuous receipt paper, wristbands
Ribbon Characteristics (Thermal-transfer models only)
Label Liner and Length Maximum non-continuous: 39 in./991 mm
Using tear off mode: 0.25 in./6.35mm
Minimum with label present sensor used:
0.5 in./12.7 mm
Minimum with cutter: 1 in./25.4 mm
Width 1.33 in./33.8 mm to 4.3 in./110 mm
Core 0.5 in./12.7 mm (inner diameter)
Operating Characteristics
Operating Temp. 40° to 105° F/4.4° to 41° C
Storage Temp. -40° to 140° F/-40° to 60° C
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Electrical Auto-detectable (PFC Compliant) 100-240 VAC, 50-60 Hz
ENERGY STAR qualified
Agency Approvals Emissions: FCC Part 15, Subpart B, VCCI, C-Tick
Emissions and Susceptibility: (CE): EN55022
Class-B, EN61000-3-2, EN61000-3-0 and EN55024, CCC, Wi-Fi-certified
Safety: IEC 60950-1:2005 + A1:2009, EN 60950-1:2006 + A11:2009 + A12:2011 + A1:2010 + AC:2011, UL 60950-1:2007 R12.11, CAN/CSA-C22.2 No. 60950-1-07 + A1:2011 and TUV NRTL
Physical Characteristics
Length
10.0 in./254 mm
Width
7.6 in./193 mm
Height 7.5 in./191 mm
Weight 4.9 lbs/2.2 kg
Communication and Interface Capabilities
• RS-232 auto-sensing Serial interface, DB-9 (standard)
• USB V2.0, bi-directional (standard)
• Centronics® Parallel (standard)
• Ethernet — 10/100 internal (standard)
• Wireless — 802.11 a/b/g/n and Bluetooth 3.0 (optional)
Software Tools (Link-OS Solutions)
Document Design
Quickly design a customized print solution using your business data and Zebra’s intuitive, plug-and-print design tools
Device Integration Zebra offers apps and products designed to help you integrate Zebra devices into your existing systems
Device Management Manage your print operations locally and globally with Zebra’s suite of device management tools
Developer Tools Provides you the tools you need to create your own apps, including documentation, source code, programming languages, templates and more.
Web View Connect and control Zebra barcode printers using ZPL II via the printer’s web interface using common web browsers.
Alert Printers equipped with ZebraNet print servers will notify you via any emailenabled, wired, or wireless device to minimize downtime.
For more information on Print DNA features, please visit
www.zebra.com/printdna.
Firmware
ZBI 2.0™ — Optional powerful programming language that lets printers run stand-alone applications, connect to peripherals, and much more.
ZPL & ZPL II® — Zebra Programming Language provides sophisticated label formatting and printer control and is compatible with all Zebra printers.
Barcode Symbologies
Linear Barcodes: Code 11, Code 39, Code 93, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, EAN-14, UPC-A and UPC-E with EAN 2 or 5 digit extensions, Plessey, POSTNET, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Codabar, and GS1 DataBar (formerly RSS)
2D Barcodes: PDF417, MicroPDF-417, Code 49, Maxicode, Codablock, Data Matrix, QR code, Aztec
Fonts and Graphics
16 resident expandable ZPL II bitmap fonts
Two resident scalable ZPL fonts
Native open type font support
Unicode® Standard compliant for multi-language, on-demand thermal printing
56 MB user available non-volatile memory storage for downloadable objects
4 MB user-available SDRAM
Supports user-defined fonts and graphics — including custom logos
ZPL II drawing commands — for boxes and lines
Optional Features
300 dpi for high-resolution printing
Wireless — 802.11 a/b/g/n and Bluetooth 3.0
Dispenser — label peel and present with present sensor
Cutter for various media types
Keyboard Display Unit — ZKDU™ keyboard display units for stand-alone printing applications
Recommended Services
Zebra OneCare SV
Product Warranty
ZD500R printers are warranted against defects in workmanship and materials for a period of 2 (two) years from the date of shipment. For the complete warranty statement, please visit:
www.zebra.com/warranty.
Markets and Applications
Retail
Item-level exception tagging
In-store tagging of returned goods and display, promotional and other items
Healthcare
Specimen tracking
Patient identification
Asset tracking
Manufacturing
Work in progress
Case / pallet tracking
Parts tagging
Asset tracking
Government / DOD Compliance
Document tracking
MIL STD 129 compliance
Evidence tracking
Hospitality and Leisure
RFID wristbands
Ticketing
Mustering
Queue management
-
