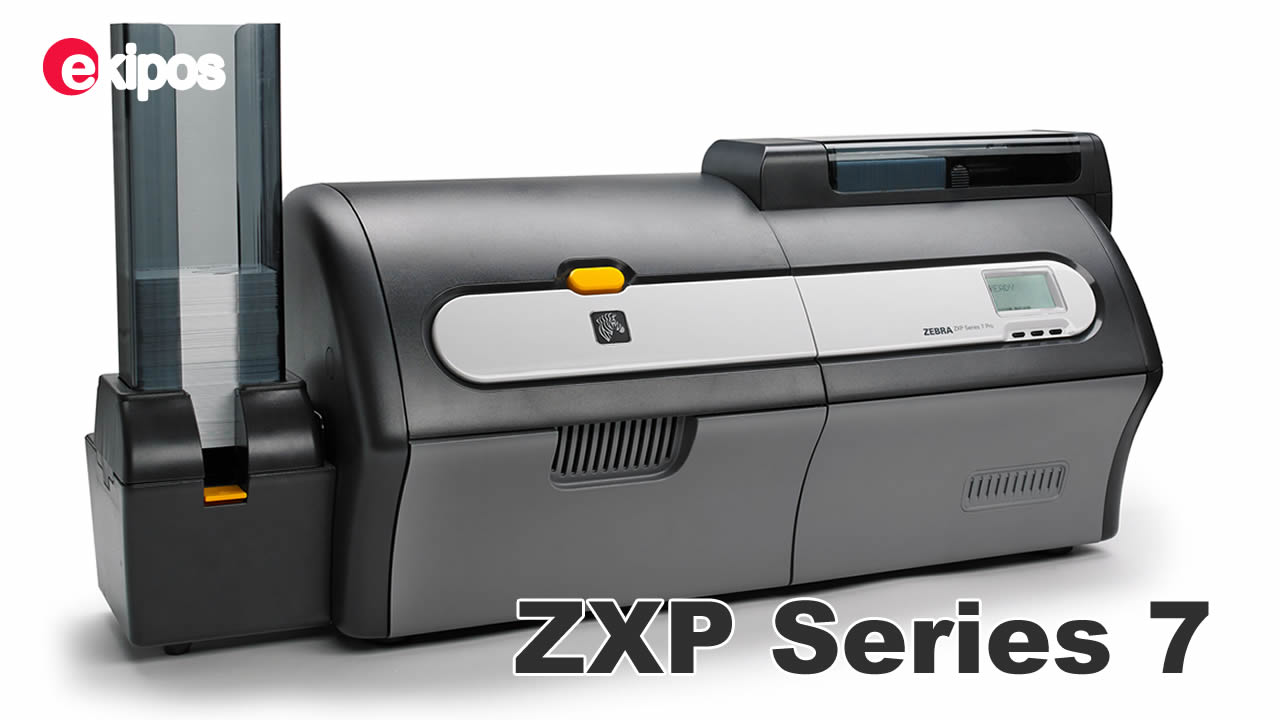

Zebra ZXP Series 7 Paquete de impresora de tarjetas de identificación de doble cara (Z72-000C0000US00) Conectividad USB y Ethernet
Código: 4113
Impresora de Tarjetas de Alto Rendimiento ZEBRA ZXP7 (Doble Cara) - Impresora de Credenciales de Alta Calidad y en Gran Cantidad con Conexión USB/Red Ethernet - Velocidad: 1375 tarjetas monocromáticas y 555 tarjetas a color YMCKO por hora - Impresión Térmica Direct-to-Card en un lado o en ambos lados.
- Opcionales: Laminador, Codificador de Banda Magnética y Chips (Consultar precios) - Impresión de borde a borde con el standard CR80
- Alimentador para 200 tarjetas.
- Velocidad: 12 segundos a todo color en un lado, 3 segundos para monocromo
ekipos.com
Especificaciones |
-
Specifications
Printer Names
ZXP Series 7
ZXP Series 7 Pro
Standard Features
• 300 dpi/11.8 dots per mm print resolution
• USB 2.0 and Ethernet 10/100 connectivity
• Microsoft® Windows Certified drivers
• 15-card reject hopper (30 mil)
• ZXP Series 7 and Series 7 Pro: 250-card input capacity feeder (30 mil)
• ZXP Series 7: 100-card output hopper (30 mil)
• ZXP Series 7 Pro: 250 First-in, First-out mechanical output hopper
• Single-card feed capability
• ix Series intelligent media technology
• 21-character x 6-line LCD operator display with configurable soft keys
• Kensington® physical lock slot
• Two-year limited warranty on printer and printhead
Printing and Laminating Specifications
• Color dye sublimation or monochrome thermal-transfer printing
• Single- and dual-sided printing
• Near photographic print quality
• Edge-to-edge printing on standard CR-80 media
• Simultaneous printing, encoding, and laminating capability
• One-pass single- and dual-sided wasteless lamination
• 1375 cards / hour monochrome single-sided or 555 cards / hour dual sided printing
• 300 cards / hour full-color YMCKO single-sided printing
• 225 cards / hour full-color YMCKOK dual-sided printing
• 270 cards / hour full-color YMCKO single-sided printing with lamination
NOTE: Printing throughput (cards per hour) based on batch printing with USB connectivity. Times may vary depending on the computer configuration.
Media Specifications
Zebra’s intelligent technology RFID tags authenticate and automate ix Series ribbons and i Series laminates
Card cleaning rollers included with each ribbon carton
Specially designed cleaning supplies simplify preventative maintenance
True Colours ix Series Ribbons
• YMCKO: 250 or 750 images / roll
• YMCUvK: 750 images / roll
• YMCKOK: 250 or 750 images / roll
• ½-panel YMC, full KO: 1250 images / roll
• KdO and KrO: 2000 images / roll
• WrKr: 2000 images / roll
• Blue, red, gold, silver monochrome: 5000 images / roll
• Black monochrome: 2500 or 5000 images / roll
• White monochrome: 4000 images / roll
• Scratch-off gray: 3250 images / roll
• Other colors available on request
True Secure i Series Laminates
• Linerless waste-free 1.0 mil top and bottom laminate: 750 images / roll
• Laminate types: clear, magnetic stripe, smart card, and holographic wallpaper designs
• Custom laminates with registered or wallpaper holographic images available on request
Card Compatibility
For optimum card quality and printer performance, use genuine Zebra card supplies. For more information, visit
www.zebra.com/cards
• Card thickness: 10 – 50 mil (0.25 – 1.27 mm)
• Card thickness for lamination: 30 mil (0.76 mm)
• Card size: CR-80, ISO 7810 format, Type ID-1
• Card material: PVC and composite, ABS cards, PET, PET-G, PET-F, PETix, and Teslin® composite
• Technology cards: contact and contactless smart cards
• Specialty cards: adhesive backed, signature panel, transparent cards with IR-blocker
Operating Characteristics
Environmental
Operating Temperature: 59ºF to 95ºF/15ºC to 35ºC
Operating Humidity: 20% to 80% non-condensing
Storage Temperature: 23ºF to 158ºF/-5ºC to 70º C
Storage Humidity: 10% to 90% non-condensing
Media Storage:
Temperature: 41ºF to 86ºF/5ºC to 30ºC
Humidity: 30% to 50% non-condensing
Do not store in direct sunlight
Electrical Auto-switching single-phase AC power
90V – 264V AC and 47 – 63Hz (50 – 60Hz nominal)
FCC Class A
Physical Characteristics
Dimensions
ZXP Series 7:
Printer only: 12 in. H x 10.9 in. L x 27.5 in. W
306 mm H x 277 mm D x 699 mm W
Printer with laminator: 12 in. H x 10.9 in. L x 38 in. W
306 mm H x 277 mm D x 964 mm W
ZXP Series 7 Pro:
Printer only: 13.75 in. H x 10.9 in. L x 28.25 in. W
349 mm H x 277 mm D x 718 mm W
Weight ZXP Series 7:
Printer only: 26.9 lbs/12.2 kg
Printer with laminator: 39.5 lbs/17.9 kg
ZXP Series 7 Pro:
Printer only: 31.7 lbs/14.4 kg
Printer with laminator: 44.3 lbs/20.1 kg
Communication and Interface Capabilities
USB 2.0
USB supports plug-and-play printer identification
10/100 Ethernet
802.11b/g wireless option
Software Tools
ZMotif SDK support and sample code available
Windows 7® (32 and 64 bit), Windows Server 2008 (32 and 64 bit)
Windows 8® (32 and 64 bit), Windows 8.1® (32 and 64 bit), Windows Server 2012 (64 bit), Windows 10 (32 and 64 bit)
CardStudio card design and issuance software
NOTE: Please see
www.zebra.com
for up to-date listing of supported systems.
Optional Features
• Single and dual-sided laminator
• Optional contact/contactless SmartCard encoding option module
• FIPS 201 compliant dual-sided laminator (only for North America)
• Lockable enclosures and card feeder
• Extended product warranty programs
• 802.11b/g wireless connectivity
• 1D barcode scanner
• Duo-Print upgrade kit
Encoding Options and Specifications
• Magnetic stripe encoder — AAMVA and ISO 7811 (new and pre-encoded, tracks 1, 2, and 3, high and low coercivity)
• ISO 7816 Smart Card Contact Station for third-party external contact encoders
• Combined MIFARE® ISO 14443 A and B (13.56MHz) contactless and ISO 7816 Contact Encoder with EMV level 1 certification, and PC/SC compliance
• EPCglobal® Gen 2 UHF RFID encoder
Zebra Synchronized Supplies for Operational Efficiency and Lower Costs
Color Print Operations
Ribbon Media
750 Images per ribbon**
250 Card Capacity Input and Output Hopper
3X synchronized card input and ouput:
250 cards (x3) = 750 = 3 full card feeder cassettes per YMCKO ribbon
Mono Print Operations Ribbon Media
5,000 Images per ribbon
250 Card Capacity Input and Output Hopper
20X synchronized card input and ouput:
250 cards (x20) = 5,000 = 20 full card feeder cassettes per black mono ribbon
Product Warranty
The ZXP Series 7 is warranted against defects in workmanship and materials for a period of 2 (two) years from the date of shipment. For the complete warranty statement, please visit: www.zebra.com/warranty
Recommended Services
The Zebra OneCare Service portfolio of Essential, Select and Premier maximizes the availability and productivity of your devices. Key features include 24/7 technical support, comprehensive coverage, advance replacement and software updates. Optional Visibility Services are available. For more information go to
www.zebra.com/zebraonecare
Footnotes
Notes:
*The ZXP Series 7 Pro is not available in APAC.
**Our laminates are also in increments of 750 images per roll.
For optimum print quality and printer performance, use genuine Zebra supplies. Specifications subject to change without notice.
Markets and Applications
Healthcare and Education
Employee and student ID cards
Employee access control cards
Hospitality and Retail
Gaming, loyalty / membership / gift cards
Sports and entertainment
High Security
Government credentials
Secure access control
Financial services
-
