Zebra ZQ521 Impresora Térmica Directa 203dpi, WiFi, Bluetooth
Código: 4094

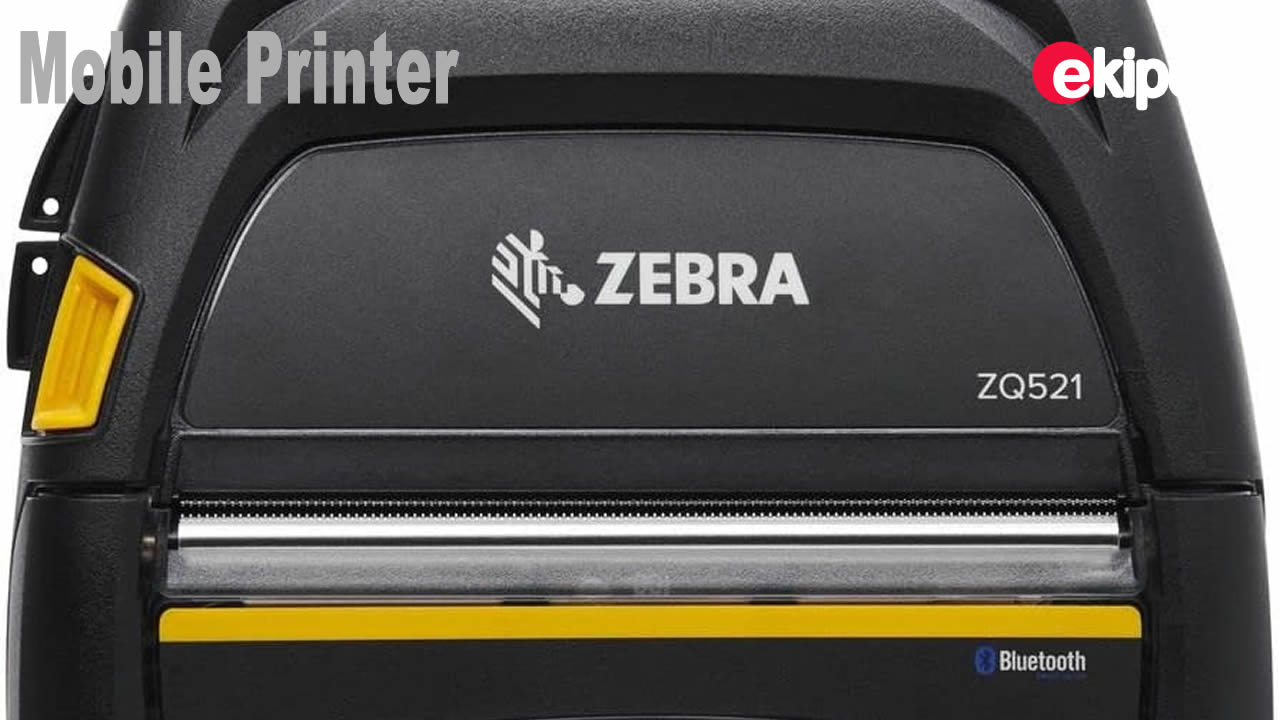

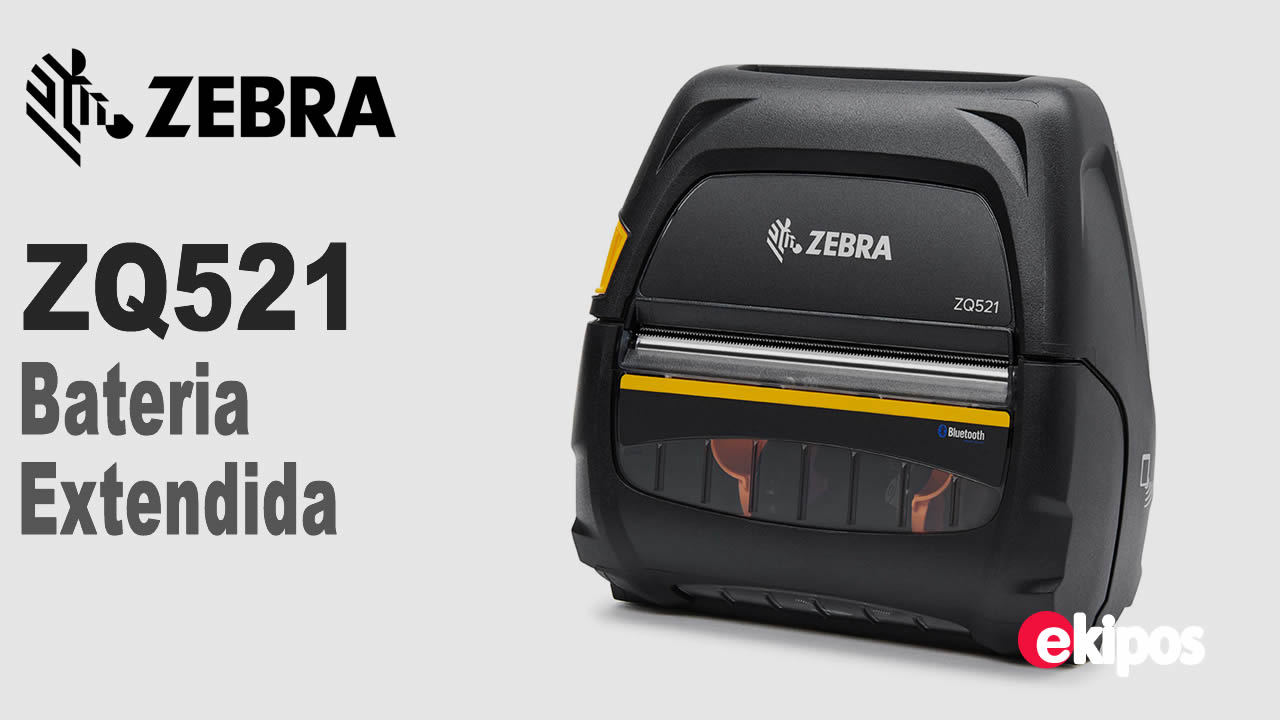

Impresora Portatil ZEBRA ZQ521E
- Impresora Portatil de Alto Rendimiento. - Modelo con batería extendida que prolonga el ciclo de funcionamiento de la impresora para aplicaciones de ciclos de uso críticos.
- Cumple con la calificación IP54 de resistencia a múltiples caidas en concreto - Comunicación por Bluetooth.
- Compatible con dispositivos móviles iOS (iPad, iPhone, iPod), Android y Windows - Impresión térmica directa de códigos de barras, texto
y gráficos
- Velocidad de Impresión 127mm/seg
- Ideal para Puntos de Venta móviles, Servicio en Sitio, Puntos de Distribución y Control
ekipos.com
-
Specifications
Standard Features
• Android, Apple iOS, Windows® Mobile connectivity
• Bluetooth specification 4.1 EDR + LE
• WLAN 802.11ac
• Fast roaming 802.11r supported
• 3250 mAh PowerPrecision+ (retrievable, rechargeable Li-Ion)
• USB On-The-Go ports (with optional strain relief)
• Power Smart Print Technology — anticipates upcoming printing to optimize battery consumption and print speed
• Direct thermal printing of barcodes, text and graphics
• IP54 rated for protection against solid and liquid ingress
• MIL-STD 810G certified for drop and shock
• Tolerance of multiple drops from 6.6 ft./2 m to concrete
• Tumble testing per the IEC68-2-32 spec with 1300 free falls from 3.3’/1m
• Simple easy-to-read LCD with large icons for battery and wireless status
• Dual-sided tear bar which allows for clean tears in either direction (not available with linerless SKUs)
• Supports vertical and horizontal printing
• Printer can be used in any orientation
• Center loading, adjustable for variable roll widths
• “Clamshell” design for easy media loading
• Label odometer
• XML support
• Resident fixed and scalable fonts
• Black mark and gap media sensing using fixed center position sensors (Note: RFID models do not support gap sensing)
• Cold Temperature Compensation mode-optimizes/balances print speeds to allow for better print performance at lower temperatures
• PPME, Mirror, SNMP, WebServer, AirWatch® and Soto Connectors and Wavelink Avalanche®
• NTP (Network Time Protocol) support via WiFi
• Sleep mode supported. Wake on Bluetooth, WiFi and Touch
• Real time clock (RTC) supported for time stamp certificates in WLAN SKU’s only
• QR code links to web-based help pages; not displayed on LCD
• Zebra® Print Touch simplifies Bluetooth pairing and launches web-based pages with Near Field Communication (NFC) enabled devices
• RFID is available on both the ZQ511 and ZQ521 as separate products
Physical Characteristics
Dimensions
ZQ511: 5.9 in. L x 4.7 in. W x 2.4 in. H
150 mm L x 120 mm W x 62 mm H
ZQ521: 6.2 in. L x 6.1 in. W x 2.6 in. H
158 mm L x 155 mm W x 67 mm H
Weight with Battery ZQ511: 1.39lbs/0.63 kgs
ZQ521: 1.73lbs/0.79 kgs
Printer Specifications
Operating System Link-OS®
Resolution 203 dpi resolution (8 dots per mm)
Memory
256MB RAM, 512MB Flash (standard)
8MB RAM, 64MB Flash (user available)
Maximum Print Width ZQ511: 2.83 in./72mm
ZQ521: 4.09 in./104mm
Maximum Print Speed Up to 5 in./127 mm per second (with Draft Mode enabled)
Media Sensors Black mark and gap media sensing using fixed center position sensors (Note: RFID models do not support gap sensing)
Print Length Maximum: 39 in.
Power 3250 mAh (nominal), removable, rechargeable PowerPrecision+ Li-Ion battery, with optional extended battery
Media Characteristics
Minimum/Maximum Media Width ZQ511: 1.38 in./35 mm to 3.15 in./80 mm+1 mm
ZQ521: 2.0 in./50.8 mm to 4.45 in./113 mm+1 2mm
Maximum Media Roll Size ZQ511: 2.0 in./51 mm
ZQ521: 2.24 in./57 mm
Maximum Media Thickness 0.0063 in./0.1600 mm for labels and
0.0055 in./0.1397 mm for tag/receipt
Minimum Media Thickness
0.0023 in./0.05842 mm for all media
(ZQ511 Linerless SKU is 0.0021 in./0.05334 mm)
Media Types Receipt, Gap/Black-mark Label, Tag, Linerless, RFID (Note: ZQ511R/ZQ521R require black mark RFID media and do not support gap sensing)
Note: ZQ511R/ZQ521R require black mark RFID media and do not support gap sensing
Operating Characteristics
Environment Operating Temperature: -4°F to 131°F/-20°C to 55°C
Operating Humidity: 10% to 90% non-condensing
Charging Temperature: 32°F to 104°F/0°C to 40°C
Cradle Temperature: 32°F to 122°F/0°C to 50°C
Storage Temperature: -22°F to 150°F/-30°C to 66°C
Storage Humidity: 10% to 90% non-condensing
Agency Approvals Emissions: FCC Part 15, Subpart B, EN55022 Class-B, EN55024, ICES- 003, EN55032, and EN301489
Security
FIPS support is available at no cost as a printer OS download. Please contact your Zebra Sales Representative for further information
Firmware
CPCL and ZPL® programming languages
ZBI 2.x™ — powerful programming language that lets printers run standalone applications, connect to peripherals, and much more
Options
• RFID encoding
• Linerless printing (with silicone platen roller only)
Barcode Symbologies
CPCL Barcode Symbologies
• Barcode Ratios: 1.5:1, 2:1, 2.5:1, 3:1, 3.5:1
• Linear Barcodes: Code 39, Code 93, UCC/EAN128, Code 128, Codabar (NW-7), Interleaved 2-of-5, UPC-A, UPC-E, 2 and 5 digit add-on, EAN-8, EAN-13, 2 and 5 digit add-on
• 2D Barcodes: PDF417, MicroPDF417, MaxiCode, QR Code, GS1/DataBar™ (RSS) family, Aztec, MSI/Plessey, FIM Postnet, Data Matrix, TLC39
ZPL Barcode Symbologies
• Barcode Ratios: 2:1, 3:1, 5:2, 7:3
• Linear Barcodes: Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC-A and UPC-E with EAN 2 or 5 digit extensions, Planet Code, Plessey, POSTNET, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Codabar, and GS1 DataBar (RSS)
• 2D Barcodes: PDF417, MicroPDF-417, Code 49, TLC39, Maxicode, Codablock, Data Matrix, QR code, Aztec
Fonts and Character Sets
Standard Fonts 25 bitmapped, 1 smooth, scalable (CG Triumvirate Bold Condensed, contains UFST® from Agfa Monotype Corporation)
Included in All Models and Part Numbers Scalable Fonts: Swiss721 (supporting Latin, Cyrillic, Hebrew and Arabic characters)
Additional Asian Fonts Supported
Group A: Part Numbers supporting Indonesia, Taiwan, Korea, Malaysia, Australia, New Zealand, Sri Lanka, India include: Scalable Traditional Chinese Characters: NotoMono, Bitmap: 24x24 MKai, 16x16 New Sans MT, Scalable Korean Characters: NotoMono
Group B: Part Numbers supporting, Singapore, Thailand, Philippines, HongKong and Vietnam include: Scalable Traditional Chinese characters: NotoMono and Bitmap 16x16 NewSans MT. Scalable Thai Characters: Angsana, Scalable Vietnamese Characters: SourceCodePro and Bitmap 16x16 Utah
Group C: Part Numbers supporting China include: Scalable Simplified Chinese Characters: Hans and Bitmap 24x24 Msung, 16x16 SimSun
Group J: Part Numbers supporting Japan include: Scalable NotoMono and Square Gothic J MT, Bitmap 16x16, 24X24 Square Gothic J MT
Communication and Interface Capabilities
ZebraNet® 802.11ac radio with support for:
• WPA and WPA2 with AES encryption
• 802.1x (with WEP, WPA, or WPA2)
• EAP-FAST, EAP-TTLS, EAP-TLS, PEAP, LEAP
• 802.11d, 802.11i, 802.11r
• Simultaneous Bluetooth 5.2 ready1 / 802.11ac Multiport Radio
• Wi-Fi Certification
• Fast roaming using Pairwise Master Key (PMK) caching, Opportunistic Key Caching (OKC), EAP Fast Session resumption or 802.11r
Bluetooth 4.1 (Classic and BLE) radio
• Security models 1-4
• “Made for iPod/iPhone/iPad” certified
• Key Bonding
Cabled Communications Specifications
• USB 2.0 full-speed on-the-go interface (12 Mbps)
• Micro-AB Connector with optional strain relief
Product Warranty
The ZQ511 and ZQ521 printers are warranted against defects in workmanship and materials for a period of 2 (two) years from the date of shipment. (Note: Batteries and Printheads are considered consumables. Zebra Batteries are warranted for one year from the date of shipment and printheads for 6 months from the date of shipment.) For a complete warranty statement, please visit the Product Warranty Exceptions list on
www.zebra.com/warranty
Recommended Services
Zebra OneCare Essential and Select Services maximize the availability and productivity of your devices. Key features include 24/7 technical support, comprehensive coverage, advance replacement and software updates. Optional Visibility Services are available. For more information go to
www.zebra.com/zebraonecare (Note: Service availability may vary by region.)
Print DNA Software
Print DNA is a suite of software that enables Zebra printers to deliver a full lifecycle of exceptional experiences for every kind of user through built-in applications, utilities and tools to get your printer up and running quickly and securely. For more information, please visit
www.zebra.com/printdna
Footnotes
1. Supports errata fixes for Version 5.2 only. Future upgrades and updates will not support additional functionality.
For optimum print quality and printer performance, use genuine Zebra supplies.
Specifications subject to change without notice.
Markets and Applications
Transportation and Logistics
Field service
Cross-docking
Direct store delivery
Proof of pickup and delivery and route accounting
Bag reconciliation
Post and parcel
Passenger ticketing
Manufacturing/Warehouse
Field service
Direct store delivery
Pallet labeling
Packing/staging/cross-docking labeling
Government
Energy and utility meter reading
Parking violations
E-citation
Retail and Hospitality
Click and collect receipt and label printing
Shelf-edge labels
Drive-through receipt printing
Arenas/concert venues/theme parks receipt printing
-
Zebra DT Printer ZQ521E, Media Width 4.45 Pulg. /113mm English/Latin, W125801993 (4.45/113mm English/Latin Fonts, Dual 802.11ac/Bluetooth 4.1)
