Procesadores |
INTEL Core™ i3-12100 |
Ekipos |
72044155

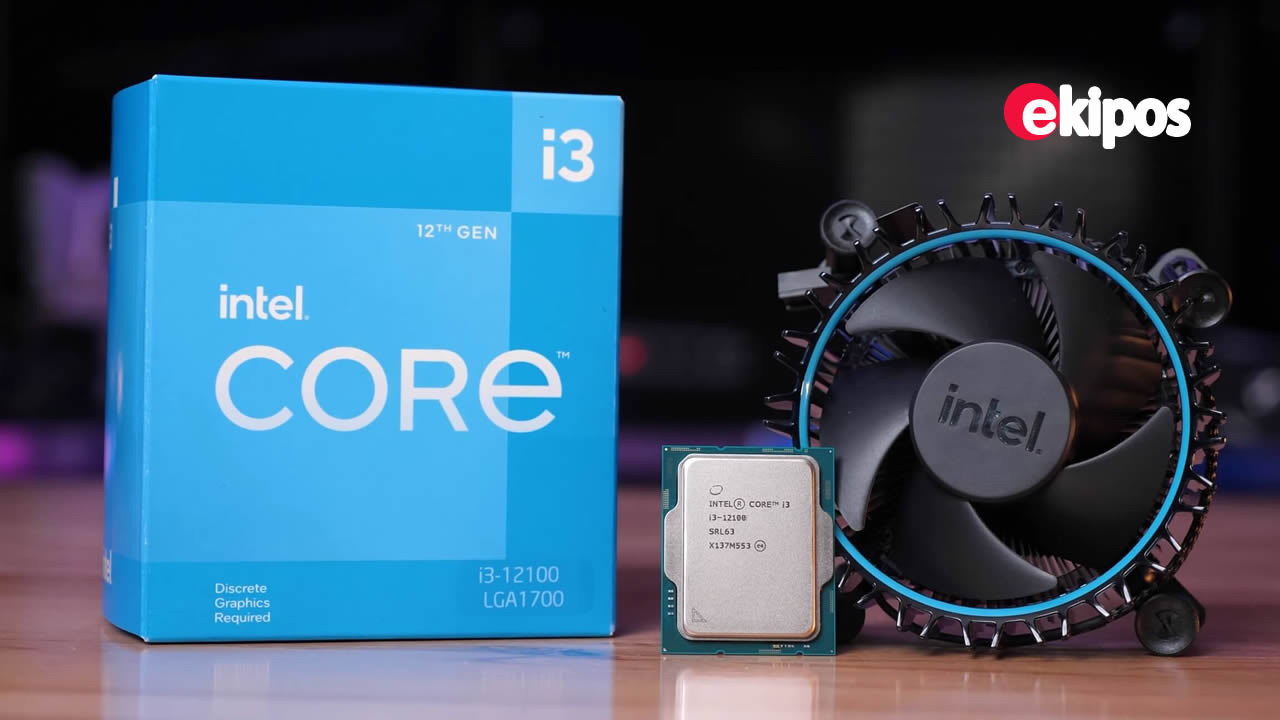

Intel Core i3 (12ª generación) i3-12100 Quad-core (4 núcleos) procesador de 3.30 GHz
Marca Intel
Fabricante de CPU Intel
Modelo de CPU Core i3
Velocidad de la CPU 3
Plataforma Windows 11
Sobre este artículo
Intel El procesador Core i3 de 3.30 GHz utiliza menos potencia y la arquitectura de hiperenhebrado ofrece un alto rendimiento para aplicaciones exigentes a un precio asequible
12 MB de caché L3 recupera rápidamente los datos más utilizados disponibles para mejorar el rendimiento del sistema
Controlador Intel UHD Graphics 730 integrado para mejorar los gráficos y la calidad visual. Soporta hasta 4 monitores.
-
Product Collection
12th Generation Intel® Core™ i3 Processors
Code Name
Products formerly Alder Lake
Vertical Segment
Desktop
Processor Number
i3-12100
Lithography
Intel 7
Use Conditions
PC/Client/Tablet
Recommended Customer Price
$134.00 - $144.00
CPU Specifications
Total Cores
4
# of Performance-cores
4
# of Efficient-cores
0
Total Threads
8
Max Turbo Frequency
4.30 GHz
Performance-core Max Turbo Frequency
4.30 GHz
Performance-core Base Frequency
3.30 GHz
Cache
12 MB Intel® Smart Cache
Total L2 Cache
5 MB
Processor Base Power
60 W
Maximum Turbo Power
89 W
Supplemental Information
Marketing Status
Launched
Launch Date
Q122
Embedded Options Available
Yes
Datasheet
View now
Memory Specifications
Max Memory Size (dependent on memory type)
128 GB
Memory Types
Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels
2
Max Memory Bandwidth
76.8 GB/s
Processor Graphics
Processor Graphics ‡
Intel® UHD Graphics 730
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.40 GHz
Graphics Output
eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units
24
Max Resolution (HDMI)‡
4096 x 2160 @ 60Hz
Max Resolution (DP)‡
7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡
5120 x 3200 @ 120Hz
DirectX* Support
12
OpenGL* Support
4.5
OpenCL* Support
3.0
Multi-Format Codec Engines
1
Intel® Quick Sync Video
Yes
Intel® Clear Video HD Technology
Yes
# of Displays Supported ‡
4
Device ID
0x4692
Expansion Options
Direct Media Interface (DMI) Revision
4.0
Max # of DMI Lanes
8
Scalability
1S Only
PCI Express Revision
5.0 and 4.0
PCI Express Configurations ‡
Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes
20
Package Specifications
Sockets Supported
FCLGA1700
Max CPU Configuration
1
Thermal Solution Specification
PCG 2020C
TJUNCTION
100°C
Package Size
45.0 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian & Neural Accelerator
3.0
Intel® Thread Director
No
Intel® Deep Learning Boost (Intel® DL Boost)
Yes
Intel® Optane™ Memory Supported ‡
Yes
Intel® Speed Shift Technology
Yes
Intel® Turbo Boost Max Technology 3.0 ‡
No
Intel® Turbo Boost Technology ‡
2.0
Intel® Hyper-Threading Technology ‡
Yes
Intel® 64 ‡
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States
Yes
Enhanced Intel SpeedStep® Technology
Yes
Thermal Monitoring Technologies
Yes
Intel® Volume Management Device (VMD)
Yes
Security & Reliability
Intel® Threat Detection Technology (TDT)
Yes
Intel® Standard Manageability (ISM) ‡
Yes
Intel® Control-Flow Enforcement Technology
Yes
Intel® AES New Instructions
Yes
Secure Key
Yes
Intel® OS Guard
Yes
Execute Disable Bit ‡
Yes
Intel® Boot Guard
Yes
Mode-based Execute Control (MBEC)
Yes
Intel® Virtualization Technology (VT-x) ‡
Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡
Yes
Intel® VT-x with Extended Page Tables (EPT) ‡
Yes
-
