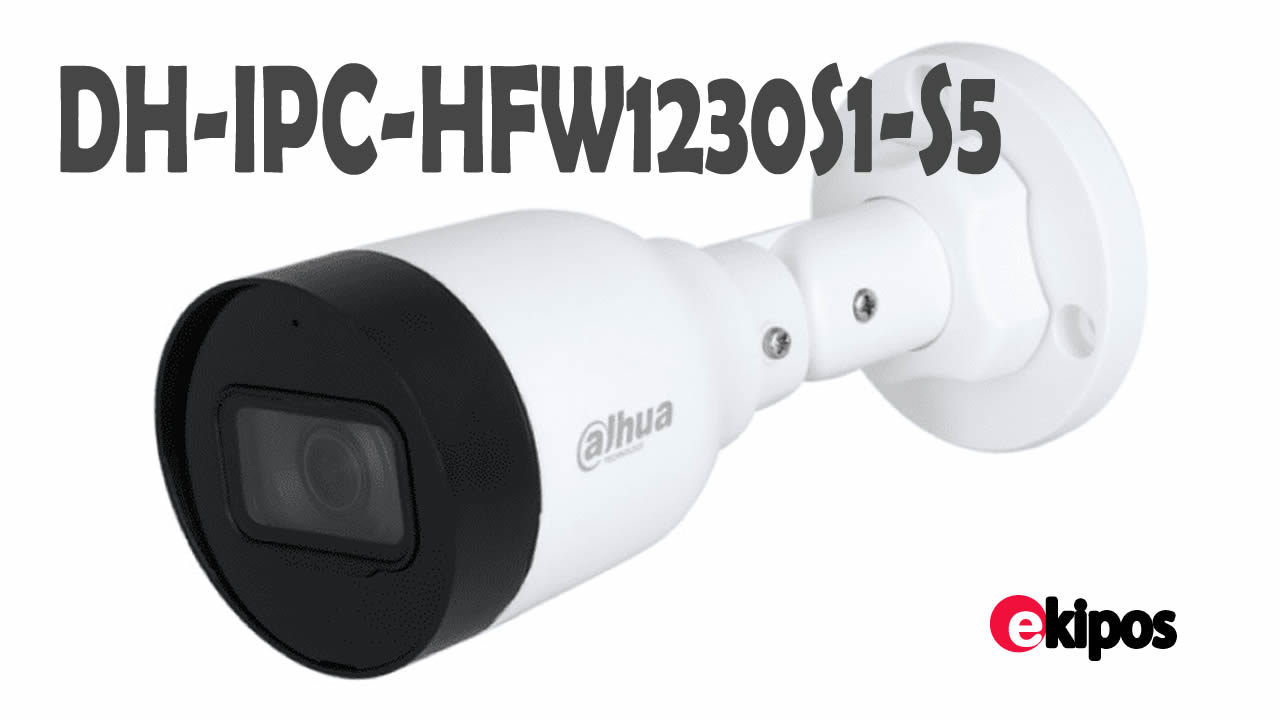

DALHUA DH-IPC-HFW1230S1-S5 Camara IP Bullet de 2 Megapixeles/ Lente de 2.8mm/ 102 Grados de Apertura/ Micrófono Integrado/ H.265+/ IR de 30 Metros/ IP67/ PoE/ DWDR/
Código: 3981
2MP IR Mini-Bullet Network Camera
> 1/2.7” 2Megapixel progressive CMOS
> H.265& H.264 dual-stream encoding
> 25/30fps@1080P(1920×1080)
> DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8 mm fixed lens (3.6mm optional)
> Max IR LEDs Length 30m
> IP67, PoE
ekipos.com
-
Product Selector
Camera
Image Sensor
1/2.7” 2Megapixel progresive CMOS
Effective Pixels
1920(H) x1080(V)
RAM/ROM
256MB/32MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3~1/100000s
Minimum Illumination
0.08Lux/F2.0( Color,1/3s,30IRE)
0.3Lux/F2.0( Color,1/30s,30IRE)
0Lux/F2.0(IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up to 30m(98ft)
IR On/Off Control
Auto/ Manual
IR LEDs
18
Lens
Lens Type
Fixed
Mount Type
Board-in
Focal Length
2.8 mm (3.6 mm optional)
Max. Aperture
F2.0/F2.0
Angle of View
H:104°/92°,V:55°/50°
Focus Control
Fixed
Close Focus Distance
0.6m(0.9m)
DORI Distance
Lens
Detect
Observe
Recognize
Identify
2.8 mm
40(131ft)
16(52ft)
8(26ft)
4(13ft)
3.6 mm
53(174ft)
21(69ft)
11(36ft)
5(16ft)
PTZ
Pan/Tilt Range
Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
Intelligence
Event Trigger
Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly
IVS
Tripwire, Intrusion
Video
Compression
H.265/H.264H/MJPEG(Sub Stream)
Smart Codec
Support H.265+/H.264+
Streaming Capability
2 Streams
Resolution
1080P(1920×1080)/1.3M(1280×960)/
720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240)
Frame Rate
Main Stream: 1080P(1 ~ 25/30fps)
Sub Stream: D1(1 ~ 25/30fps)
Bit Rate Control
CBR/VBR
Bit Rate
H.265: 12K ~ 6400Kbps
H.264: 32K ~ 10240Kbps
Day/Night
Auto(ICR) / Color / B/W
BLC Mode
BLC / HLC / DWDR
White Balance
Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control
Auto/Manual
Noise Reduction
3D DNR
Motion Detection
Off / On (4 Zone, Rectangle)
Region of Interest
Off / On (4 Zone)
Electronic Image
Support
Smart IR
Support
Digital Zoom
16x
Flip
0°/90°/180°/270°
Mirror
Off / On
Privacy Masking
Off / On (4 Area, Rectangle)
Audio
Compression
N/A
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
HTTP;HTTPs;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;
FTP;DHCP;DNS;DDNS;PPPoE;IPv4/v6;QoS;UPnP;
NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;
TLS
Interoperability
ONVIF Profile S&G, API
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
Edge Storage
NAS
Local PC for instant recording
Web Viewer
IE, Chrome, Firefox, Safari
Management Software
Smart PSS, DSS, DMSS
Smart Phone
IOS, Android
Certifications
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video Interface
N/A
Audio Interface
N/A
RS485
N/A
Alarm
N/A
Electrical
Power Supply
DC12V, PoE (802.3af)(Class 0)
Power Consumption
<5.5W
Environmental
Operating Conditions
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection
IP67
Vandal Resistance
N/A
Construction
Casing
Metal+Plastic
Dimensions
?70mm×164.7mm(2.76x6.49)
Net Weight
0.38Kg(0.84lb)
Gross Weight
0.44Kg(0.97lb)
-
DALHUA DH-IPC-HFW1230S1-S5 Camara IP Bullet de 2 Megapixeles/ Lente de 2.8mm/ 102 Grados de Apertura/ Micrófono Integrado/ H.265+/ IR de 30 Metros/ IP67/ PoE/ DWDR/
