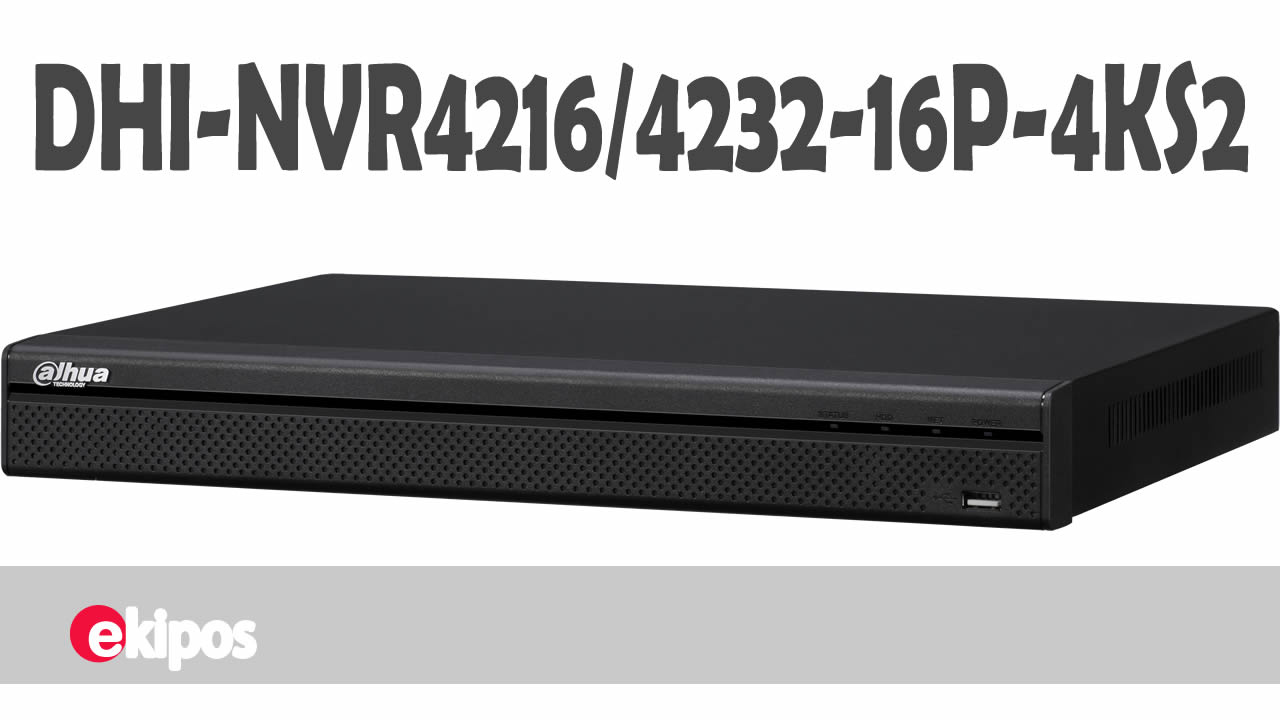

DAHUA DHI-NVR4216/4232-16P-4KS2 16/32 Channel 1U 16PoE 4K & H.265 Lite Network Video Recorder
Código: 3980
> 16/32-channel IP video access
> Smart H.265+/Smart H.264+/H.265/H.264; H.265 auto switch
> Max 200 Mbps incoming bandwidth
> Up to 8MP resolution for preview and playback
> 8-channel decoding@1080p (30 fps)
> AI by Camera: Perimeter protection; SMD Plus; people counting; heat map
> Support IPC UPnP, 16 PoE ports
ekipos.com
Ficha |
-
Product Selector
System
Main Processor
Industrial embedded micro-processor
Operating System
Embedded Linux
Operation Interface
Web; local GUI
Perimeter Protection by Camera
Performance
16 channels
AI Search
Search for pictures by channel, time and event type
SMD Plus by Camera
Performance
16/32 channels
AI Search
Search by target classification (human, vehicle)
Video
Access Channel
16/32
Network Bandwidth
200 Mbps for access, 200 Mbps for storage and 96 Mbps for forwarding
Resolution
8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1, and more
Decoding Capability
8 channels@1080p (30 fps)
Video Output
HDMI: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720
VGA: 1920 × 1080; 1280 × 1024; 1280 × 720
Multi-screen Display
16-channel: 1/4/8/9/16
32-channel: 1/4/8/9/16/25/36
Third Party Camera Access
Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon and more
Compression
Video
Smart H.265+; Smart H.264+; H.265; H.264
Audio
PCM; G.711A; G.711U; G.726
Network
Network Protocol
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (supports Dahua IP camera, DVR, NVS, and more); P2P
Mobile Phone Access
Android; iOS
Interoperability
ONVIF (profile T/S/G); CGI; SDK
Browser
Chrome; IE9 or later; Firefox
Record Playback
Multi-channel Playback
1/4/9/16
Record Mode
Manual; schedule (general; MD; alarm; MD & alarm; intelligent)
Storage Method
Local HDD and network
Backup
USB device
Playback Function
1. Play; pause; stop; fast forward; fast backward; rewind; play by frame
2. Full screen; backup (cut/file) ; partially enlarge; audio on/off
Storage
Disk Group
Yes
Alarm
General Alarm
Motion detection; privacy masking; video loss; PIR alarm; IPC alarm
Anomaly Alarm
Camera offline; storage error; full storage; IP conflict; MAC conflict; login lock; network security anomaly
Intelligent Alarm
Perimeter protection; SMD; people counting; heat map
Alarm Linkage
Record; snapshot; IPC external alarm output; buzzer; log; preset; email
External Port
Audio Input
1 channel, RCA connector
Audio Output
1 channel, RCA connector, which support voice intercom output
HDD
2 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature
Alarm Input
4 channels
Alarm Output
2 channels
USB
1 front USB 2.0 port, 1 rear USB 3.0 port
HDMI
1
VGA
1
Network
1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet port
PoE
16 ports (IEEE802.3at/af)
General Parameter
Power Supply
Single, 100V–240V AC, 50 Hz–60 Hz
Power Consumption
NVR: < 13.2W (without HDD)
PoE: Max 25.5W for single port, 130W in total
Net Weight
2.6 kg (5.7 lb) (without HDD)
Gross Weight
4 kg (8.8 lb) (without HDD)
Product Dimensions
375.0 mm × 327.4 mm × 53.0 mm (14.8" × 12.9" × 2.1")
Package Dimensions
429 mm × 360 mm × 137 mm (16.9" × 14.2" × 5.4")
Operating Temperature
-10°C to +55°C (+14°F to +131°F)
Storage Temperature
0°C to +40°C (+32°F to +104°F)
Operating Humidity
10%–93% (RH)
Storage Humidity
30%–85% (RH)
Operating Altitude
3,000 m (9,843 ft)
-
