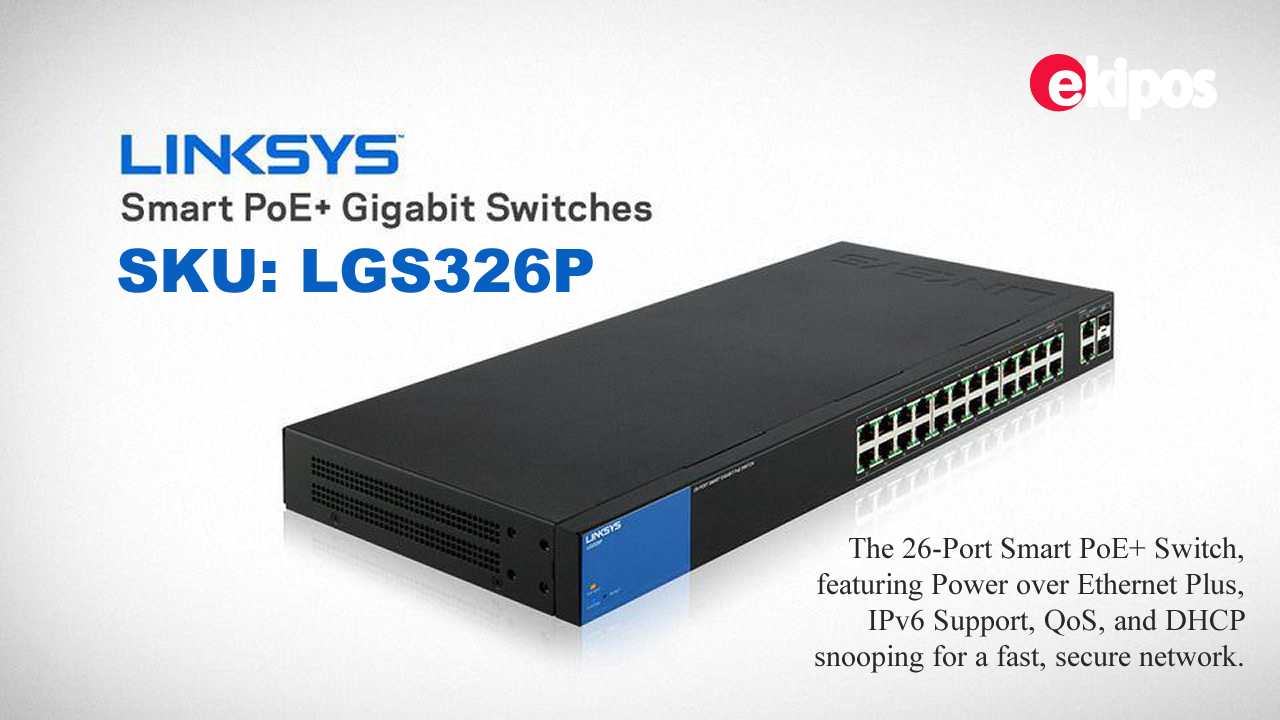

Linksys Business LGS326P 24-Port Gigabit PoE+ (192W) Smart Managed Switch + 2x Gigabit SFP/RJ45 Combo Ports
Código: 3962
Marca Linksys
Número de puertos 24
Componentes incluidos SWITCH 24PTOS
Color black
Dispositivos compatibles PC
Velocidad de conexión por cable hasta 1000 Mbps
24 puertos Gigabit Ethernet de detección automática
Priorización de tráfico de calidad de servicio (QoS)
Características de ahorro de energía
Fácil conexión Plug and Play
ekipos.com
Especificaciones |
DEMO |
-
Switch Ports
26
Jumbo Frame (FE, GE)
9K
LEDs
System (blue), Link/Act/PoE (green/green)
VLAN
Port-based and 802.1q tag-based VLANs, Management VLAN, Guest VLAN support, Dynamic VLAN assignment via Radius server with 802.1x client authentication
Memory
128 MB
Forwarding Rate
38.69 Mpps
Dimensions (LxWxH)
440 x 200 x 44 mm (17.3 x 7.9 x 1.7 in.)
Weight
3.096 kg (6.81 Ibs.)
System Power Consumption without PoE+
110V:28.58W,
220V:26.67W
Number of VLANs Supported
128 active VLANs (4,096 range)
Operating Temperature
0 to 50°C (32 to 122°F)
Power Dedicated to PoE+
192 W
Security Features
802.1x Radius authentication
DHCP snooping
IP-MAC binding
Management access control
Port security supports limited dynamic lock and locked MAC address
Power Input
(3.5A max)
100–240V
50-60 Hz
Spanning Tree
IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree
Storage Temperature
-40 to 70°C (-40 to 158°F)
RMON
Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis
Total System Ports
26GE
MAC Address Table Size
8K
Switching Capacity
52 Gbps
HOL Blocking Prevention
Head of line (HOL) blocking prevention
Combo Ports (RJ45 + SFP)
2 combo on ports g25, g26
Auto Voice VLAN
VLAN Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels
Other Management
Telnet (Menu CLI), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP
Link Aggregation
IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group
Number of Ports with PoE+ Support
24
Storm Control
Broadcast, flooding, and multicast
Management Interface
HTTP
HTTPS
QoS - Scheduling
Priority queuing and weighted round robin (WRR)
SNMP
Version 1
Version 2c
Fans
Two, 8,200 rpm
QoS - Class of Service
Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based
Storage Humidity
10 to 90% RH (non-condensing)
Green Power Mode
EEE+, Short Reach + Energy Detect
IGMP Snooping
IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups
Network Standards
IEEE 802.1d
IEEE 802.1q/p
IEEE 802.1X
IEEE 802.3
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3af
IEEE 802.3at
IEEE 802.3az
IEEE 802.3u
IEEE 802.3x
IEEE 802.3z
Port Mirroring
Traffic on multiple ports can be mirrored to another port for analysis with a network analyzer
Firmware Upgrade
TFTP
Web Browser (HTTP/HTTPS)
QoS - Priority Levels
4 hardware queues
Copper FE/GE Ports (RJ45)
g01–g12, g13-g24
-
