DAHUA XVR1B16-I - DVR de 16 Canales 1080p Lite/ WizSense/ Cooper-I/ H.265+/ 16 Canales+2IP o Hasta 18 Ch IP/ 8 Canales SMD Plus/ Busqueda Inteligente (Humanos y Vehiculos)/ Codificación Inteligente/ 1
Código: 3913

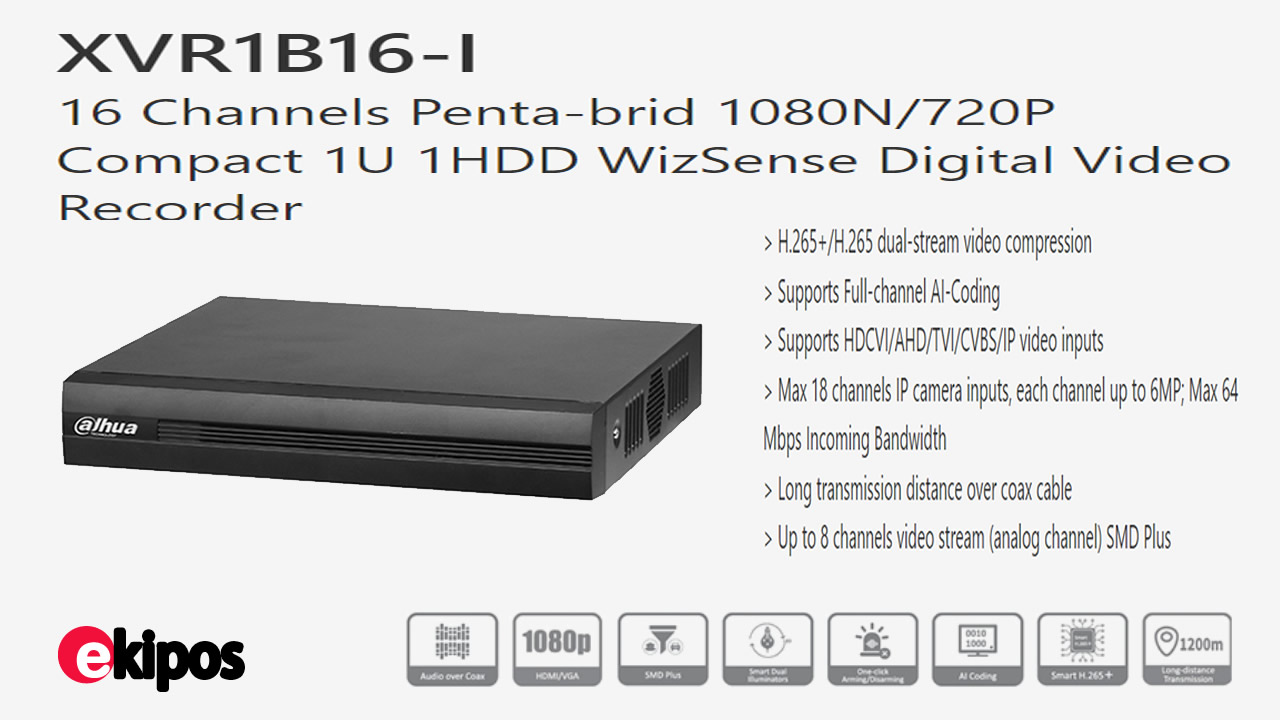

XVR1B16-I
16 Channels Penta-brid 1080N/720P Compact 1U 1HDD WizSense Digital Video Recorder
> H.265+/H.265 dual-stream video compression
> Supports Full-channel AI-Coding
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 18 channels IP camera inputs, each channel up to 6MP; Max 64 Mbps Incoming Bandwidth
> Long transmission distance over coax cable
> Up to 8 channels video stream (analog channel) SMD Plus
ekipos.com
-
Product Selector
System
Main Processor
Industrial-grade processor
Operating System
Embedded Linux
Operating Interface
Web; Local GUI
SMD Plus
SMD Plus by Recorder
8-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input
16 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.
Camera Input
1. CVI: 1080p@ 25/30 fps, 720p@ 25/30 fps
2. TVI: 1080p@ 25/30 fps, 720p@ 25/30 fps
3. AHD: 1080p@ 25/30 fps, 720p@ 25/30 fps
4. CVBS: PAL/NTSC
IP Camera Input
Up to 18 channels of IPC access
2 IP channels by default + 16 channels (analog channels are converted to IP channels)
incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps
*After IP channels are added beyond the existing channels, the AI Function (SMD) will be disabled.
Encoding Capacity
Main Stream:
the 1st channel 1080N/720p (1 fps–25/30 fps), others
1080N/720p (1 fps–15 fps); 960H/D1/CIF(1 fps–25/30 fps)
Sub stream:
CIF (1 fps–7 fps)
Dual-stream
Yes
Video Bit Rate
32 kbps–6144 kbps
Audio Sampling
8 kHz, 16 bit
Audio Bit Rate
64 kbps
Video Output
1 HDMI, 1 VGA
HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display
1/4/8/9/16
Third-party Camera Access
ONVIF; RTSP; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung
Compression Standard
Video Compression
AI Coding; H.265+; H.265; H.264+; H.264
Audio Compression
G.711a; G.711u; PCM
Network
Network Protocol
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Mobile Phone Access
iOS, Android
Interoperability
ONVIF 21.06; CGI Conformant
Browser
Chrome
IE9 or later
Firefox
Network Mode
Single-address mode
Recording Playback
Record Mode
General, motion detection, alarm;
Recording Playback
1/4/9/16
Backup Method
USB device and network
Playback Mode
Instant playback, general playback, event playback, tag playback
Alarm
General Alarm
Motion detection, video loss, tampering
Anomaly Alarm
No disk, disk error, low space, offline, ip conflict, MAC conflict
Alarm Linkage
Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email
Ports
Audio Input
1-channel RCA
16-channel BNC (Coaxial Audio)
Audio Output
1-channel RCA
Two-way Talk
Yes (share the same audio input with the first channel)
HDD Interface
1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature.
USB
2 USB ports (USB 2.0)
HDMI
1
VGA
1
Network Port
1 (10/100 Mbps Ethernet port, RJ-45)
General
Power Supply
12 VDC, 2 A
Power Consumption
<10 W
Net Weight
0.89 kg (1.96 lb)
Gross Weight
1.42 kg (3.13 lb)
Product Dimensions
260.0 mm × 231.4 mm × 47.6 mm (10.24 × 9.11 × 1.87) (W × D × H)
Packaging Dimensions
333.0 mm × 315.0 mm × 89.0 mm (13.11" × 12.40" × 3.50") (W × D × H)
Operating Temperature
–10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity
0%–90% (RH)
Installation
Desktop
Certifications
FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024
-
