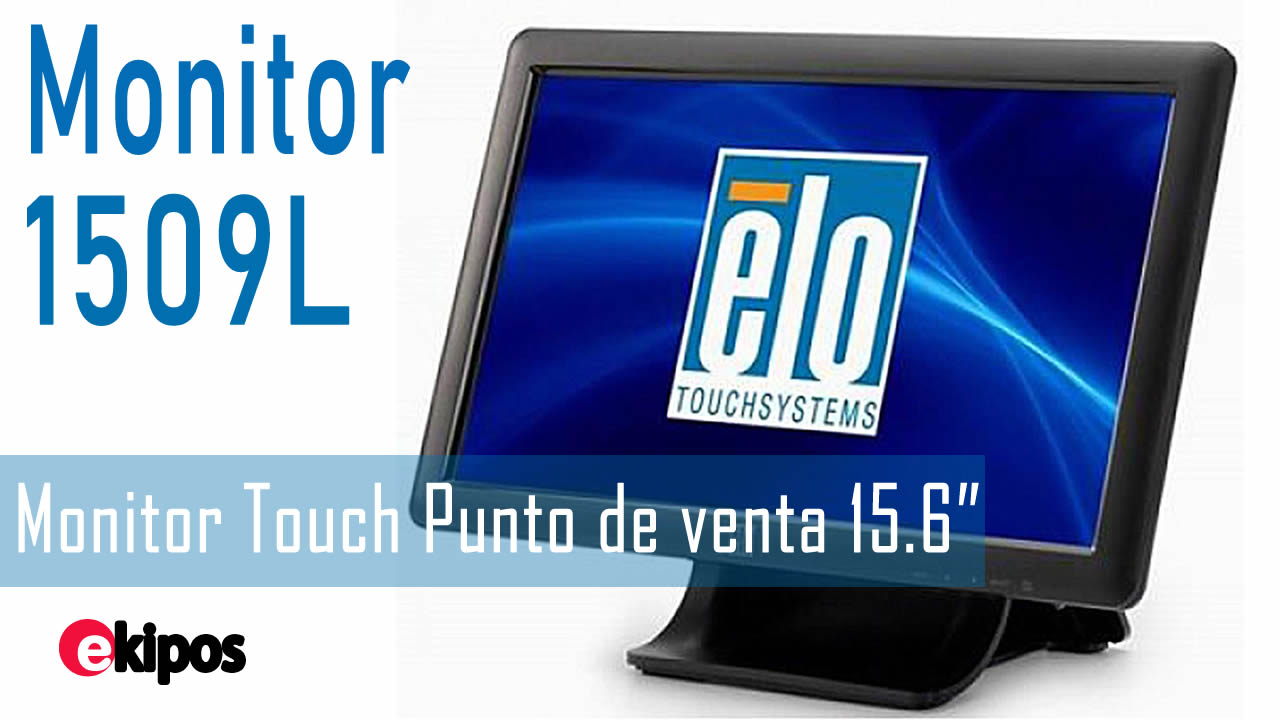

ELO 1509L 15.6 Pulgadas Touchscreen Monitor
Código: 3895
The Elo 1509L 15.6-inch widescreen LED touchscreen monitor delivers a low-profile, retail-hardened solution with a pure glass construction to allow high light transmission without compromising durability or functionality. Available with IntelliTouch surface acoustic wave (SAW) offering single touch capacity, the 1509 has been "built for touch" offering an ideal solution for general applications including hospitality and retail environments.
ekipos.com
Manual |
-
Specifications
Part Number(s)
IntelliTouch - E534869
Enclosure Color
Black
Touch Technology & Capacity
SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
Diagonal Size
15.6 diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area (mm)
13.4" x 7.6" / 344mm x 194mm
Resolution
1366 x 768
Other Supported Resolutions
640 x 480 at 60Hz
800 x 600 at 60Hz
1024 x 768 at 60Hz
1280 x 800 at 60, 60RB Hz
1280 x 960 at 60Hz
1280 x 1024 at 60Hz
1360 x 768 at 60Hz
1366 x 768 at 60, 60RB Hz
Viewing Angle
Horizontal: ±45° / Vertical: +15°, -35°
Number of Colors
16.7 million
Brightness (typical)
LCD Panel: 220
IntelliTouch: 180 nits
Response Time-total (typical)
8 msec
Contrast Ratio
400:1
Input Video Format
Analog VGA on Female DB-15 connector
Input Video Signal Connector
Mini D-sub 15-pin VGA type
Input Video Frequency
Horizontal: 30 - 80 KHz
Vertical: 60 Hz
Touch Interface
USB
Power Supply
AC-DC power adapter
Input Voltage
12VDC +/- 5%; 100-240VAC, 50/60Hz
Input Connector
Coaxial power jack (2mm pin outer diameter, 6.4mm barrel inner diameter)
Adapter Input Connector
IEC 60320 C14
Adapter Input Voltage Range
100-240VAC, 50/60Hz
Power Consumption (Typical)
ON (monitor only): 8.1W
SLEEP (monitor + AC/DC adapter at 230V/50Hz): 1.44W
OFF (monitor + AC/DC adapter at 230V/50Hz): 0.56W
On Screen Display
Controls: menu, up, down, select
Settings: Brightness, contrast, clock, phase, H-position, V-position, auto-adjust, sharpness, color temperature, OSD timeout, OSD language, recall defaults
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, power
Accessible through switches along the bottom.
Monitor Dimensions (with Stand)
15.4" x 9.5" x 11.4" / 392.2 mm x 241.5 mm x 288.3 mm
Shipping Box Dimensions
17.9" x 13.9" x 8.1" / 455mm x 355mm x 205mm
Weight (Unpackaged)
5.2 lbs / 2.4 kg
Weight (Packaged)
8.6 lbs / 3.9 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%; Storage: 10% to 95%
Sealability
Touchscreen sealed to bezel
Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated
Mounting Options
75 mm, 4-hole VESA mount on rear of unit
-
