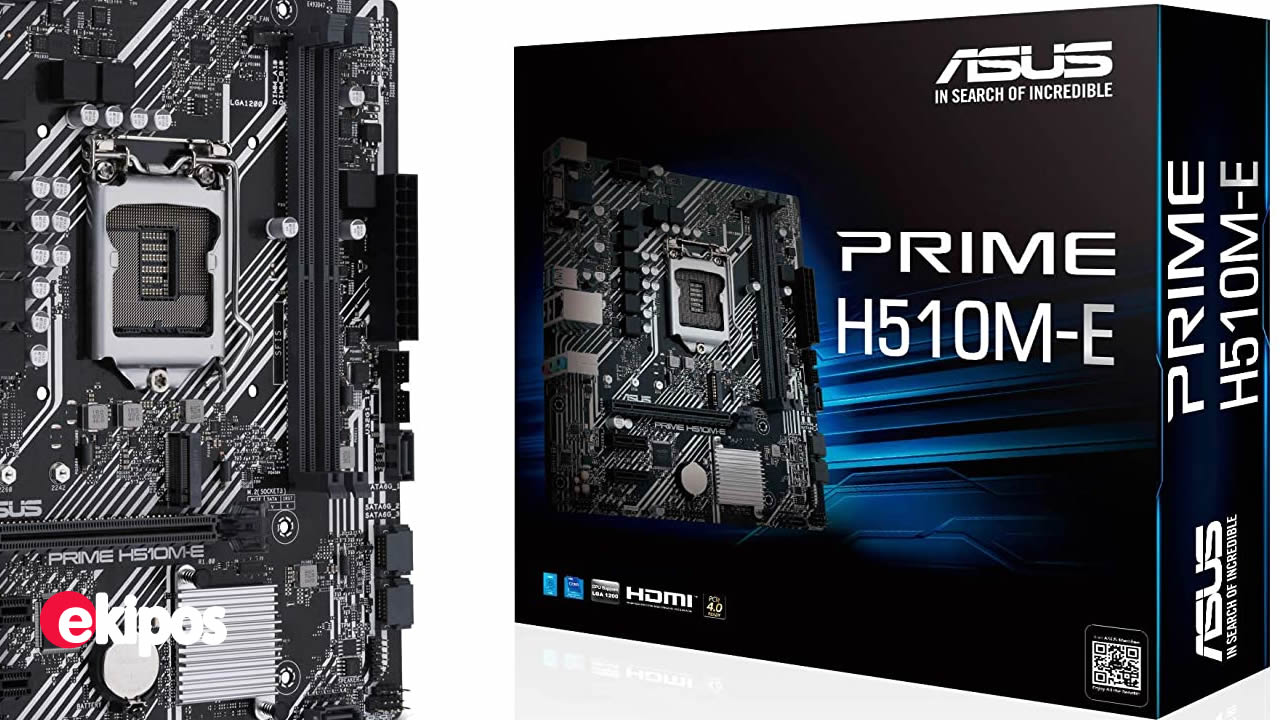

ASUS PRIME H510M-E

ASUS Prime H510M-E LGA1200 (Intel® 11ª/10ª generación) Micro-ATX (PCIe 4.0, M.2 ranura, 1Gb LAN, DP,HDMI, D-Sub, USB 3.2 Gen 1, cabecera COM, cabecera TPM, 4K a 60Hz)
Código: 3807 | Garantía:12 meses | PB:kg. 1.00

Disponible

Confirmado el pago, la entrega se realiza en la ciudad y plazo indicado en proforma.

112087 7448 Compartir

+ ASUS | + Placas madre (26) | Partes de Estaciones de Trabajo | Ultimos

« Anterior Producto Siguiente »

Placas madre | ASUS PRIME H510M-E | Ekipos | Celular: 60587770
ASUS Prime H510M-E LGA1200 (Intel® 11ª/10ª generación) Micro-ATX (PCIe 4.0, M.2 ranura, 1Gb LAN, DP,HDMI, D-Sub, USB 3.2 Gen 1, cabecera COM, cabecera TPM, 4K a 60Hz)
Código: 3807
Marca ASUS
Zócalo de CPU LGA 1200
Dispositivos compatibles Personal Computer
Tecnología de memoria RAM DDR4
Tipo de set de chips Intel
Plataforma Windows 10
Series PRIME H510M-E
Capacidad de almacenamiento de memoria 1 GB
Memoria RAM capacidad máxima 64 GB
Interfaz de tarjeta de gráficos PCI-E
Enchufe Intel LGA 1200: listo para procesadores Intel Core de 11ª generación
Protección 5X III: protección completa con LANGuard, protección contra sobrecorriente DRAM, protección contra sobretensión, salvaguardas SafeSlot Core y E/S de acero inoxidable
ASUS OptiMem: el diseño patentado de rastreo ASUS OptiMem permite que los kits de memoria funcionen a frecuencias más altas con voltajes más bajos para maximizar el rendimiento del sistema
Conectividad ultrarrápida: PCIe 4.0, ranura M.2 de 32 Gbps, Ethernet Intel de 1 Gb y USB 3.2 Gen 1 Type-A
Enfriamiento integral: disipador de calor PCH y ventilador Xpert

ekipos.com
CPU
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset

Intel® H510 Chipset
Memory
2 x DIMM, Max. 64GB, DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.

* 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphics
1 x DisplayPort 1.4**

1 x D-Sub

1 x HDMITM 2.0***

* Graphics specifications may vary between CPU types.

** Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.

*** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
Expansion Slots
Intel® 11th & 10th Gen Processors

1 x PCIe 4.0/3.0 x16 slot

- Intel® 11th Gen processors support PCIe 4.0 x16

- Intel® 10th Gen processors support PCIe 3.0 x16

Intel® H510 Chipset

2 x PCIe 3.0 x1 slots
Storage
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

Intel® H510 Chipset

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

* The M.2 slot shares bandwidth with SATA6G_2. When a device in SATA mode is installed on the M.2 slot, SATA6G_2 port cannot be used.
Ethernet
1 x Intel® I219-V 1Gb Ethernet
USB
Rear USB (Total 4 ports)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 6 ports)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Premium Japanese audio capacitors

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x D-Sub port

1 x HDMI™ port

1 x Intel® I219-V 1Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard (purple) port

1 x PS/2 Mouse (green) port
Internal I/O Connectors
Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

1 x M.2 slot (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header
Special Features
ASUS 5X PROTECTION III

- DIGI+ VRM

- LANGuard

- Overvoltage Protection

- SafeSlot Core

- Stainless-Steel Back I/O

ASUS Q-Design

- Q-DIMM

- Q-Slot

ASUS Thermal Solution

- Aluminum heatsink design

ASUS Lighting Control

- RGB header
Software Features
ASUS Exclusive Software

Armoury Crate

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

DIGI+ VRM

Fan Xpert

- EZ update

ASUS CPU-Z

AI Charger

DAEMON Tools

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

1 x M.2 SSD screw package

Installation Media

1 x Support DVD

Documentation

1 x User manual
Operating System
Windows® 11 64-bit, Windows® 10 64-bit
Form Factor
mATX Form Factor
8.9 inch x 8.3 inch ( 22.6 cm x 21.1 cm )
