Tenda TEF1109P-8-63W

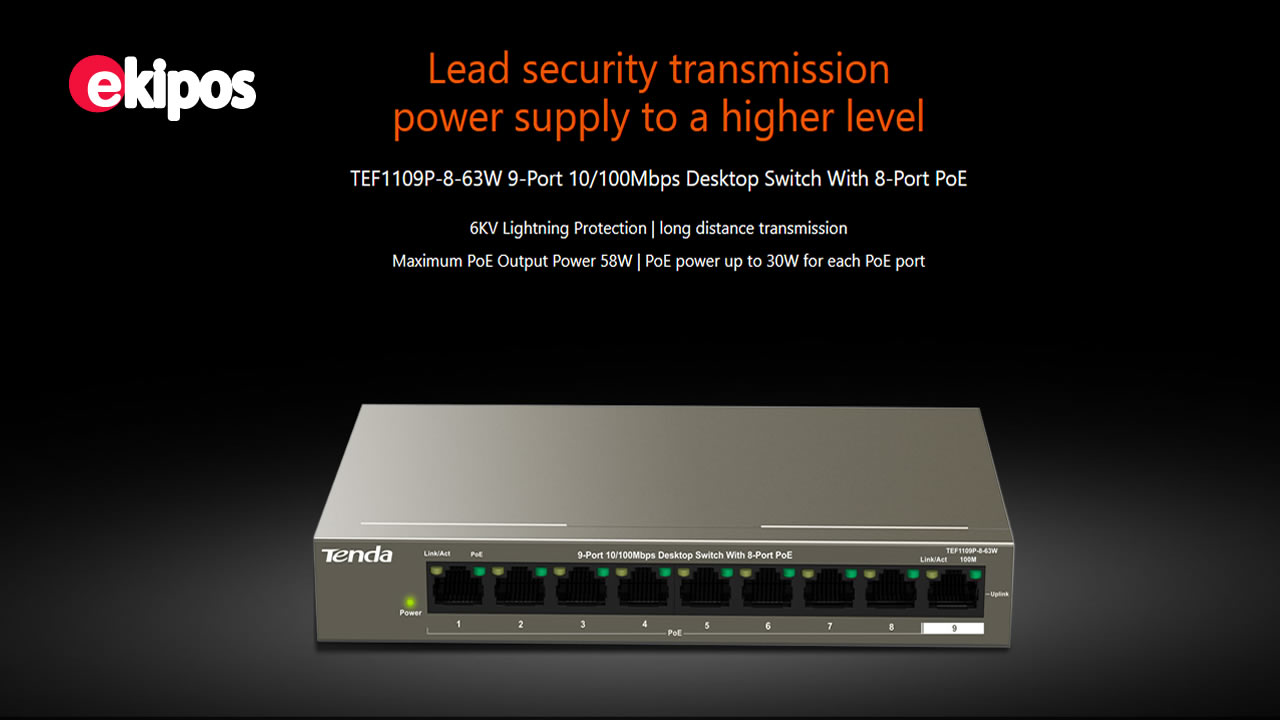

TENDA TEF1109P-8-63W 9-Port 10/100Mbps Desktop Switch With 8-Port PoE
Código: 3734 | Garantía:12 meses | PB:kg. 1.00

Disponible

Confirmado el pago, la entrega se realiza en la ciudad y plazo indicado en proforma.

Tenda TEF1109P-8-63W

111968    7405     Compartir

+ Tenda | + Switchs (34) | Redes de datos | Ultimos

WhatsApp

  • Switchs | Tenda TEF1109P-8-63W | Ekipos | Celular: 60587770

    TENDA TEF1109P-8-63W 9-Port 10/100Mbps Desktop Switch With 8-Port PoE

    Código: 3734


    9-Port 10/100Mbps Desktop Switch with 8-Port PoE.
    Support up to 250 meters for data transmission.
    Ports 1-4 support IEEE 802.3at and IEEE 802.3af PoE standards.
    It gives a 6KV lighting protection PoE switch is the real monitoring private switch.
    58W PoE power supply simplified wiring.

    ekipos.com


  • Hardware
    Network standards
    IEEE 802.3? IEEE 802.3u?IEEE 802.3x?IEEE 802.3af?IEEE 802.3at
    LED Indicator
    9 * Link/Ack LED indicators
    1 * Power LED indicator
    Interfaces
    8*10/100 Base-TX Ethernet ports (Data/Power)
    1*10/100 Base-TX Ethernet ports (Data)
    Transmission media
    Recommended: CAT5/5e UTP or better
    Fan quantity
    N/A
    Dimension
    177.5mmx104.0mmx26.0mm
    Level of protection
    Lightning protection for ports: 6KV
    Lightning protection for power: 4KV
    ESD:
    Air discharge: ±10kV
    Contact discharge: ±8kV
    Forwarding mode
    Store-and-forward
    Switch capacity
    1.8 Gbit/s
    Packet forwarding rate
    1.34Mpps
    Buffer
    1.25Mb
    MAC address table
    4K
    Jombo frame
    N/A
    PoE budget
    Single port: AF: 15.4W, AT: 30W
    Whole device: 58W
    Power consumption
    /
    Input voltage
    100?240V AC 50/60Hz
    51V /1.25A DC?Power Adapter ?
    Mounting
    Desktop mounting: support
    Wall mounting: support
    Rack mounting:non-support
    Environment
    Operating Temperature: 0?~45?
    Storage Temperature: -40?~70?
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
    Certification
    FCC?CE?RoHS
    Software
    Funtions
    Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
    VLAN: ports 1 to 8 are isolated from each other, but can communicate with ports 9 (uplink port) respectively.

  • TENDA TEF1109P-8-63W 9-Port 10/100Mbps Desktop Switch With 8-Port PoE


    TENDA TEF1109P-8-63W 9-Port 10/100Mbps Desktop Switch With 8-Port PoE


    TENDA TEF1109P-8-63W 9-Port 10/100Mbps Desktop Switch With 8-Port PoE


    TENDA TEF1109P-8-63W 9-Port 10/100Mbps Desktop Switch With 8-Port PoE


    TENDA TEF1109P-8-63W 9-Port 10/100Mbps Desktop Switch With 8-Port PoE
