ASUS ROG STRIX Z590-E GAMING WIFI |
Ekipos |
72044155
60587770

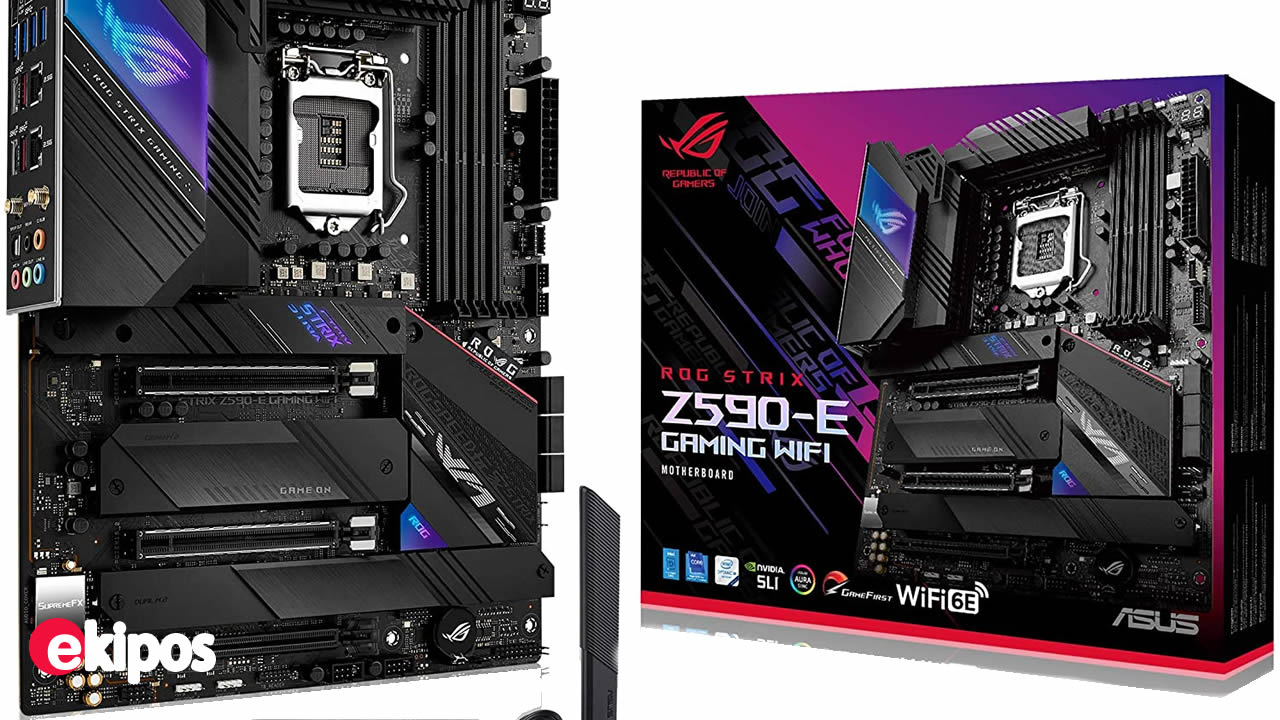

ROG Strix Z590-E Gaming WiFi 6E LGA 1200 (Intel 11ª/10ª generación) ATX (PCIe 4.0, 14+2 Power Stages, DDR4 5333+, Dual Intel 2.5 Gb LAN, Thunderbolt 4, 4xM.2/NVMe SSD y Aura RGB)
Código: 3399
Intel®Z590 LGA 1200 ATX motherboard with PCIe 4.0, 14+2 teamed power stages, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E (802.11ax), dual Intel® 2.5 Gb Ethernet, four M.2 slots with heatsinks, USB 3.2 Gen 2x2 USB Type-C® , SATA and Aura Sync RGB lighting
Ready for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Optimal Power Solution: 14+2 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
Optimized Thermal Design: VRM and aluminum I/O heatsink, L-shaped heatpipe, four onboard M.2 heatsinks and an M.2 backplate for the PCIe 4.0 M.2 slot
High-performance Networking: On-board Intel® WiFi 6E AX210 (802.11ax) and dual Intel® 2.5 Gb Ethernet with ASUS LANGuard
Best Gaming Connectivity: Supports HDMI™ 2.0 and DisplayPort 1.4 output, four M.2 slots, as well as USB 3.2 Gen 2x2 USB Type-C®
Intelligent Control: ASUS-exclusive tools AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™, Clr CMOS button, Q-Code and FlexKey
Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB header and Gen 2 addressable headers
Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
Renowned Software: Bundled 60 days AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
ekipos.com
-
CPU
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Z590
Memory
DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem III
* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel® Core™ processors support 3200/2933/2800/2666/2400/2133 natively.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics
1 x HDMI 2.0
* Graphics specifications may vary between CPU types.
** Only Intel® 11th Core™ processors support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others will only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates
*** Only Intel® 11th Core™ processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates.
Expansion Slots
2 x PCIe 4.0/3.0 x16 (x16, x8/x8, x8/x4) + 1 x PCIe 3.0 x16 (max. x4)
Intel® 11th &10th Gen Processors
2 x PCIe 4.0/3.0 x16 slot(s)*
- Intel® 11th processors support PCIe 4.0 x16 or x8/x8 or x8/x4 mode(s)
- Intel®10th processors support PCIe 3.0 x16 or x8/x8 or x8/x4 mode(s)
Intel® Z590 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)**
* Support PCIe bandwidth bifurcation for RAID on CPU function.
"**PCIe16_3 shares bandwidth with SATA_56. When PCIe16_ 3 is populated SATA_56 will be disabled. When PCIe16_3 run at default x2 mode, SATA_56 is enabled.
Multi-GPU Support
Supports NVIDIA 2-Way SLI® Technology
Storage
Supports 4 x M.2 slots and 6 x SATA 6Gb/s ports
Intel®11th &10th Gen Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
M.2_2 slot (Key M), type 2242/2260/2280/22110
- Intel® 11th processors support PCIe 4.0 x4 mode
- Intel® 10th processors support PCIe 3.0 x4 mode
Intel® Z590 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*
6 x SATA 6Gb/s ports
Raid function in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.
*When M.2_4 is operating in SATA device, SATA6G_2 will be disabled.
Ethernet
2 x Intel® I225-V 2.5Gb Ethernet
Wireless & Bluetooth
2x2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2
USB
Rear USB: Total 10 ports
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
3 x USB 3.2 Gen 2 port (2 x Type-A, 1 x USB Type-C® )
4 x USB 3.2 Gen 1 port (4 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)
1 x USB 3.2 Gen 2x2 connector(s) (suppport(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Audio
Audio Features
- SupremeFX Shielding Technology
- ALC4080 + Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium Japanese audio capacitors
- Audio cover
Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 port(s) (2 x Type-A, 1 x USB Type-C® )
4 x USB 3.2 Gen 1 port(s) (4 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)
1 x HDMI™ port
1 x DisplayPort
1 x Intel® Wi-Fi 6E
2 x Intel® I225-V 2.5Gb Ethernet
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Intrernal I/O Connectors
1 x TB Header (for add-on TB card)
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
3 x 4-pin Chassis Fan header(s)
1 x VRM heatsink Fan header
1 x W_PUMP+ header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Miscellaneous
3 x AURA Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x Q Code
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt header
Software Features
ROG Exclusive Software
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS® Sound Unbound
- Overwolf
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
-AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Two-Way AI Noise Cancelation
AI Suite 3
- 5-Way Optimization with AI Overclocking
TPU
EPU
DIGI+ VRM
Fan Xpert 4
Turbo app
- EZ update
DAEMON Tools
MyAsus
WinRAR
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
4 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Assistant fan (40mm)
1 x Screw package for cooling kit
Miscellaneous
1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas
1 x M.2 Q-Latch package
2 x M.2 Rubber Packages
1 x ROG key chain
1 x cable tie
1 x ROG Graphics card holder
1 x ROG STRIX stickers
1 x ROG STRIX thank you card
Installation Media
1 x Support DVD
Documentation
1 x User manual
Operating System
Windows 10 64bit
Form Factor
30.5cm x 24.4cm
-
