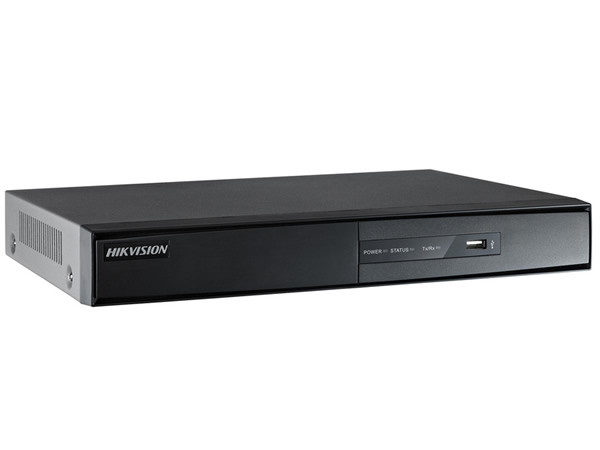

Hikvision DS-7216HQHI-F2/N/A 16CH Turbo HD DVR
• H.264 ,H.264+& Dual-stream video compression
• Support HD-TVI, IPC,AHD and analog cameras with adaptive access
• Up to 3 MP resolution for recording of the first 4 channels of DS-7216HQHI-F2/N
• Support 1080P lite mode enabled to realize the real-time 1080P lite and 720P lite resolution
• Simultaneous HDMI/VGA output at up to 4K (3840 × 2160) resolution for HDMI output of DS-7216HQHI-F2/N
• Long transmission distance over coax cable
• Up to 4/8-ch synchronous playback at 1080p resolution
• Playback at up to 256X speed.
-
Audio Input: | 2-ch
Video Compression: | H.264,H.264+
Analog and HD-TVI video input: | 16-ch,BNC interface (1.0Vp-p, 75 ?)connection
Supported camera types: | Support HDTVI input: 3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz
Note: The 3 MP signal input is only available for the first 2 channels of DS-7208HQHI-F2/N, and the first 4 channels of DS-7216HQHI-F2/N.
Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz
support CVBS input
IP Video Input: | 2-ch Up to 2MP resolution
Video Input Interface: | BNC (2.0 Vp-p, 1k?)
Audio Compression: | G.711
Audio Input Interface: | RCA (2.0 Vp-p, 1 k?)
Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 K?) (using audio input)
Video/Audio Output
CVBS Output: | 1-ch,BNC(1.0Vp-p,75?),resolution:PAL:704x576,NTSC:704x480
HDMI/VGA Output: | HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60Hz
VGA:1-ch,2K(2560×1440)/60Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz
Recording resolution: | When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF
Frame Rate: | Main stream:
When 1080p Lite mode not enabled:
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps
For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate: | 32 Kbps-6 Mbps
Stream Type: | Video/Video&Audio
Audio Output: | 1-ch RCA(Linear, 1k?)
Audio Bit Rate: | 64kbps
Dual Stream: | Support
Playback Resolution: | 3 MP/1080p/720p/VGA/WD1/4CIF/CIF
Synchronous Playback: | 16-ch
Network management
Remote connections: | 128
Network protocols: | TCP/IP, PPPoE, DHCP, Hik Cloud P2P,DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS,ONVIF
Hard Disk Driver
Interface Type: | 2 SATA Interfaces
Capacity: | Up to 6 TB capacity for each disk
External Interface
Network Interface: | 1; 10M / 100M / 1000M self-adaptive Ethernet interface
USB Interface: | 1 USB 2.0 Interface
-
