UNITECH MS842P lector de código de barras inalámbrico 2D
Código: 3009

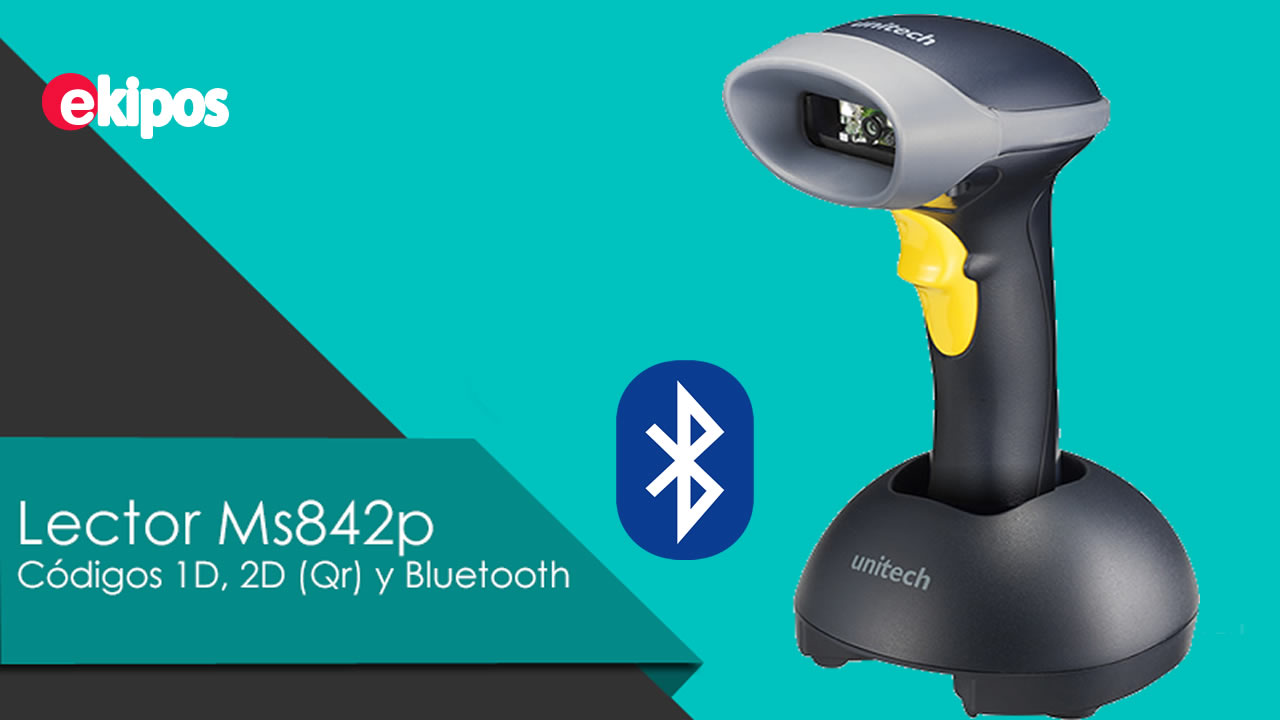

Lector Inalámbrico UNITECH MS842P para Códigos 2D/QR - Lectura de Area Inalámbrica 1D/2D
- Radio Bluetooth 2.4-2.5 Ghz, distancia 10m. - Lectura de Códigos 1D, 2D, QR, PDF417 y TLC 39. - Opción de lectura digital de códigos QR desde smartphones o tables - Resiste hasta 24 caídas sobre hormigón desde una altura de 1.8 metros (Standard IP42) - Incluye Base y Dongle para lectura con manos libres
ekipos.com
Optical & Performance CMOS Sensor, 752 x 480 pixels
Light Source Illumination : 625 nm LED
Aiming : 655 nm VLD
Max. Resolution SR: 5 mil (code 39), 6.7 mil (PDF417)
HD: 3 mil (code 39), 4 mil (PDF417)
Skew Angle ±60 degrees
Pitch Angle ±60 degrees
Reading Distance (DOF PCS=80%)
-------------------------------------------------------
SR | Near | Far
Code 39, 5mil | 5.3cm | 79.1cm
PDF417, 6.7mil | 8.6cm | 18 cm
UPC / EAN, 4.1mil |39.4cm
-------------------------------------------------------
HD | Near | Far
Code 39, 3mil | 4.1cm | 9.7cm
PDF417, 4mil | 4.6cm | 8.9cm
-------------------------------------------------------
?=dependent on width of bar code
Functionality
Symbologies 1D: Code 39, Code 93, Code 128, UPC/EAN/JAN, Code 2 of 5,
Code 11, Codabar, MSI Plessey, GS1 DataBar,
Telepen, Trioptic

2D: PDF417, MicroPDF417, Datamatrix, QR Code, Micro QR
Code, Aztec, RSS , Composite, TLC -39, MaxiCode

Postal: US PostNet, US Planet, UK Postal, Australian Postal,
Japan Postal, Dutch Postal (KIX)
Operation Mode Trigger Mode, Flash Mode, Continuous Mode, Buffer mode
Data Formatting Prefix, Suffix, Code ID, Reformatting Date
Electrical
Operation Voltage DC 3V to 5V
Current Consumption Operation mode: , Standby mode:
Battery Type Lithium-ion
Battery Capacity 1620mAh charged via the cradle
Battery Charging time Fully charged in 4 hours
Operating Time Over 10 hours
Mechanical
Scanner Dimension 176 x 74 x 89 mm
Scanner Weigh 200g (without cable)
Cradle Dimension 73 x 95 x 200 mm
Switch Life 10 million times
Environmental
ESD Protection Functional after 8K Contact and 12K Air
Mechanical Shock 6-feet drop threshold (scanner only)
IP Rating IP54
Operating Temperature 32°F to 122°F
Storage Temperature -22°F to 158°F
Relative Humidity 95% non-condensing
Communication
Radio Frequency Unlicensed 2.4GHz
Protocol Wireless, SPP & HID profiles
Range 33-feet ( line of sight)
Host Interface supported USB (via Cradle or dongle)
Regulation Approvals
Regulation Approvals CE, FCC, BSMI, VCCI
Accessories
Accessories Cradle
Dongle
Battery pack
Power adapter
USB cable
Model Numbers
MS842-20PBGD-SG MS842P, 2D (Standard), USB Receiver, Power Adapter
MS842-2UPBGC-SG MS842P, 2D (Standard), Cradle, USB Receiver, Power Adapter
MS842-D0PBGD-SG MS842P, 2D (High Density), USB Receiver, Power Adapater
MS842-DUPBGC-SG MS842P, 2D (High Density), Cradle, USB Receiver, Power Adapter
