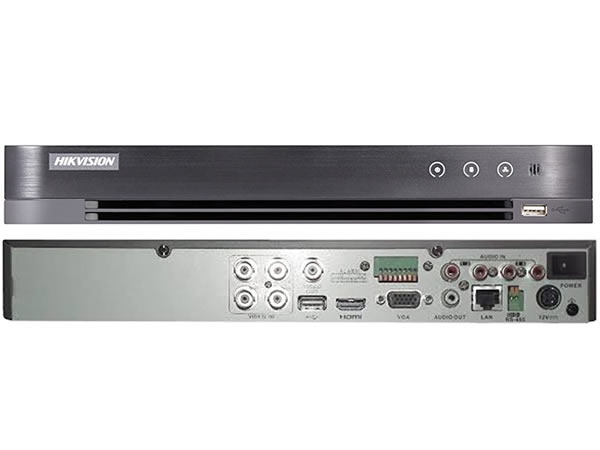

Hikvision DS-7204HUHI-K1 4-ch 5 MP 1U H.265 DVR
Código: 2800
4 channels and 1 HDD 1U DVR
Efficient H.265 pro+ compression technology
Encoding ability up to 8 MP lite @ 15 fps, 5 MP @ 12 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 8 network cameras can be connected.
ekipos.com
Manual |
-
Recording
Video Compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate
Main stream: ,8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF/CIF@25fps (P)/30fps (N) ,
Video Bit Rate
32 Kbps to 10 Mbps
Dual Stream
Support
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bit Rate
64 Kbps
Video And Audio
IP Video Input
4-ch (up to 8-ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
4-ch BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
AHD Input
5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI Input
4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS Input
PAL/NTSC
Audio Input
4-ch, RCA (2.0 Vp-p, 1 K?)
Audio Output
1-ch, RCA (Linear, 1 K?)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input)
Synchronous Playback
4-ch
HDTVI Input
8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
VGA/HDMI Output
1-ch, ,2K (2560 × 1440)/60Hz, ,1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 ?),resolution: PAL: 704 × 576, NTSC: 704 × 480
Network
Remote Connections
32
Network Protocols
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface
1, ,RJ45 10M/100M self-adaptive Ethernet interface,
Auxiliary Interface
SATA
1 SATA interface
Capacity
Up to 10 TB capacity for each disk
Alarm In/Out
4/1
USB Interface
2 × USB 2.0
Serial Interface
RS-485 (half-duplex)
General
Power Supply
12 VDC
Working Temperature
-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity
10% to 90%
Dimensions (W × D × H)
315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weights (Without HDD)
? 1.16 kg (2.6 lb)
Consumption (Without HDD)
? 10 W
-
