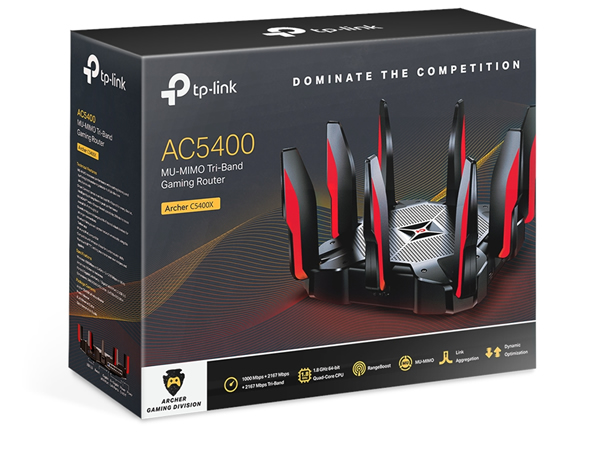

AC5400 MU-MIMO Tri-Band Gaming Router Archer C5400X
Código: 2584
TP-Link first gaming router
1.8GHz 64-bit quad-core CPU, 3 co-processor and 1GB RAM
Tri-band with blazing fast speed at 5334 Mbps in total
HomeCare for all-around protection
VPN acceleration for 5 times faster VPN connection
ekipos.com
Folleto |
Manual del usuario |
-
CARACTERÍSTICAS DE HARDWARE
Procesador 1.8GHz quad-core CPU and three co-processors
Estándares y Protocolos 802.11a/b/g/n/ac, 802.3ab
Ports 1x GE WAN
8x GE LAN
2x USB3.0
Botones 1x Power
1x Wi-Fi On/Off
1x WPS
1x Reset
1x LED On/Off
LED Panel 1x LED with multiple state
Peso 3.3lb(with antennas)
2.65lb(without antennas)
1.5kg(with antennas)
1.2kg(without antennas)
Dimensiones 11.3 X 11.3X 7.2 in.(with antennas)
9.5X9.5X2.2 in.(without antennas)
288X288X184mm(with antennas)
240.6X240.6X55.4mm(without antennas)
Antenas 8 external and detachable antennas
Chipset MU-MIMO
Beamforming
Airtime Fairness
RangeBoost
NitroQAM
CARACTERÍSTICAS INALÁMBRICAS
Frecuencia 1000Mbps @ 2.4GHz
2167Mbps @ 5GHz
2167Mbps @ 5GHz
CARACTERÍSTICAS DE SOFTWARE
Gestión Tether App
Andriod 4.1 or higher
iOS 8 or higher
Herramientas Del Sistema Time Settings
Diagnostics
Fw OTA Upgrade
Config backup/resotre
Administration
Syslog
Statistics
LED Control
Funciones Básicas Network Map(Internet Status/Client List/Speedtest)
Internet Settings
Wireless Settings
USB Sharing Settings(USB Storage Sharing/FTP Server/Print Server/Media Server)
HomeCare(Parental Control/Antivirus/QoS)
Guest Network Settings
TP-Link Cloud Settings
Multiple Languages
Protocolos IPv4, IPv6
Funciones Avanzadas Working Mode (Router Mode or AP Mode)
Wireless Schedule
Time Machine
TP-Link DDNS
Parental Controls/Antivirus/QoS
IPv6
VPN Server (OpenVPN and PPTP Servers)
NAT Forwarding(DMZ/UPnP...)
Link aggregation(WAN/LAN)
Airtime Fairness
SmartConnect
Portal Authentication for Guest Wi-Fi
Supported Operating Systems Time Settings
Diagnostics
Fw OTA Upgrade
Config backup/resotre
Administration
Syslog
SNMP
Statistics
LED Control
SEGURIDAD
Antivirus Malicious Content Filter
Intrusion Prevention System
Infected Device Quarantine
Access Control Device-based whitelist/blacklist
Wi-Fi Security Open
WEP
WPA-PSK
Firewall Features Open
WEP
WPA-PSK
OTROS
Certificaciones FCC?CE?DFS?VCCI?JRF?JPA?RoHS
Factores Ambientales Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Power Supply 100-240V 50/60Hz
-
