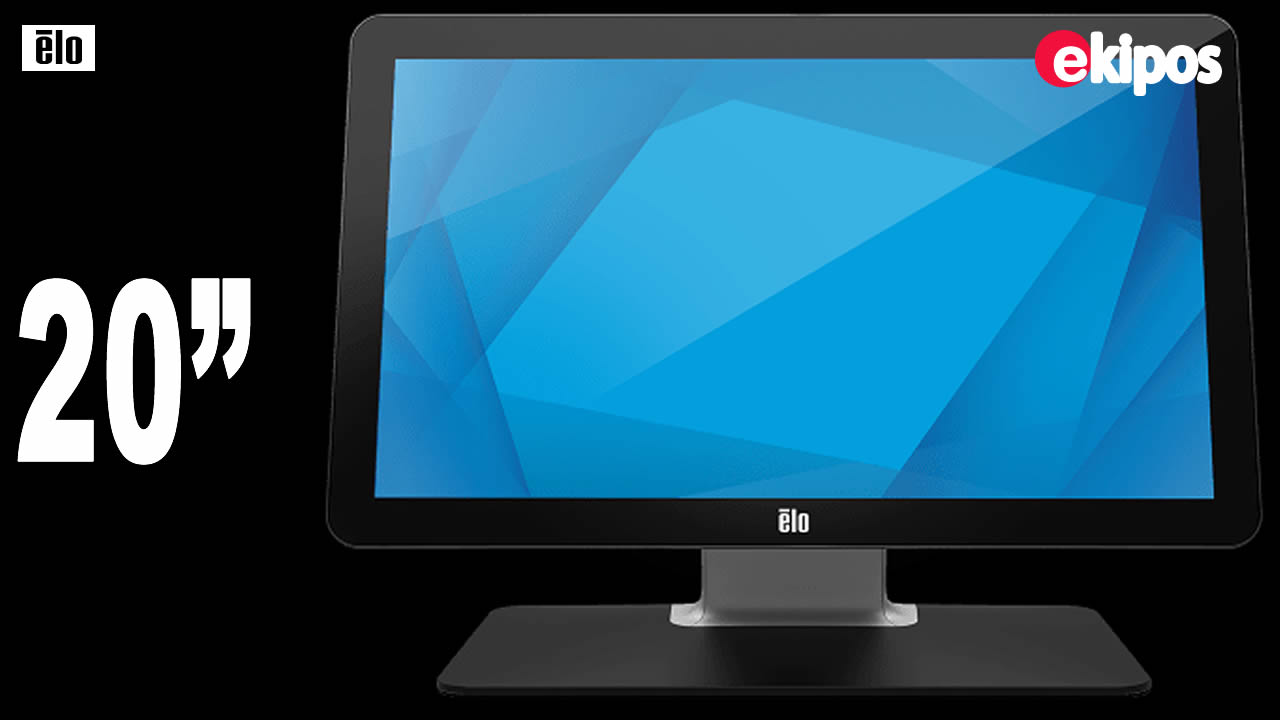

Elo 2002L 20 PulgadasTouchscreen Monitor
Código: 2385
Monitor Táctil ELO de 20" LED WIDE
- Tecnología TouchPro™ PCAP technology
- Formato Wide Screen diseñada especialmente para aplicaciones táctiles - Display de 19.5" con resolución máxima FULL HD con 1920 x 1080 a 60Hz - Interface dual VGA/HDMI (Cable incluido)
- Montaje VESA de 75mm x 75 mm
- Monitor sellado de fábrica resistente a ambientes con alto polvo y humedad
ekipos.com
-
Specifications
Part Number(s)
With Stand - E396119
Without Stand - E125897
*For NA, LATAM & APJ only
Enclosure Color
Black
Touch Technology & Capacity
PCAP (Projected Capacitive) - 10 Touch
Diagonal Size
19.5 diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area
17.20" x 9.48" / 436.9mm x 240.7mm
Resolution
1920 x 1080 @ 50, 60Hz
Other Supported Resolutions
640 x 480 60Hz
640 x 400 70Hz
720 x 576 50Hz
720 x 400 70Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 720 50, 60Hz
1280 x 960 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB
1920 x 1080 50, 60Hz
Viewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
16.7 million
Brightness (typical)
LCD Panel: 250 nits
PCAP: 225 nits
Response Time-total (typical)
20 msec
Contrast Ratio
3000:1
Touch Interface
USB
On Screen Display
Accessible through switches along the bottom.
Controls: Menu, Power, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power
Speakers
Two x 2W internal speakers
Input Video Format
Mini-VGA (Mini-VGA to VGA DE-15 (DB-15) Male connecter cable included) HDMI (HDMI cable included), HDCP supported
Input Video Frequency
Horizontal: 31.5 - 80 KHz
Vertical: 50 - 60 Hz
Power Consumption (Typical)
Monitor + AC/DC adapter
ON (Default - 85% Brightness): 15.97 W
ON (Typical - 100% Brightness): 17.77 W
SLEEP: 0.33W
OFF: 0.24W
Input Voltage
12VDC +/- 5%; 100-240VAC, 50/60Hz
Input Connector
Coaxial power jack (2.5 mm pin outer diameter, 6.4mm barrel inner diameter)
Monitor Dimensions (without Stand)
11.57" x 19.22" x 1.52" / 293.9 mm x 488.31 mm x 38.7 mm
Monitor Dimensions (with Stand)
13.87" x 19.22" x 7.61" / 352.3mm x 488.31mm x 193.4mm
Shipping Box Dimensions
With Stand: 16.50" x 22.52" x 9.92" / 419 mm x 572 mm x 252 mm
Without Stand: 18.35" x 24.49" x 7.17" / 466 mm x 622 mm x 182 mm
Weight (Unpackaged)
With Stand: 11.68 lbs / 5.3 kg
Without Stand: 7.25 lbs / 3.29 kg
Weight (Packaged)
With Stand: 19.84 lbs / 9 kg
Without Stand: 11.42 lbs / 5.18 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%; Storage: 10% to 95%
Sealability
Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated
Mounting Options
VESA 4-hole 75mm and 100mm mounting interface on rear of unit
See dimensional drawings for details
Warranty
3-year
Extended Service Options
4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125
Regulatory approvals and declarations
Canada cUL, IC, Europe CE, United Kingdom UKCA, Japan VCCI, United States UL, FCC, China CCC, Korea, KCC, e-standby, Australia RCM, India BIS, International CB, Russia EAC, RoHS, China RoHS, WEEE, REACH
Ingress Protection
IPX1 for front side
Whats in the Box
Touchmonitor
Mini-VGA to VGA cable (mini-VGA to DE-15 (DB-15) male)
USB cable (USB Type A plug to USB Type B plug)
HDMI cable
Audio cable
QIG
Power brick with US, EU, UK, KR, AU and CN clips
4 screws (for E125897)
Optional PCAP Stylus Pen
E066148
Optional Peripherals
Magnetic Stripe Reader (MSR) – Elo P/N: E001002
Fingerprint Scanner – Elo P/N: E134286
2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627
2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047
EMV Cradle for Ingenico ICMP (I-Series & 02-Series Monitors) - Elo P/N: E200465
EMV Cradle for Verifone E355 (I-Series & 02-Series Monitors) - Elo P/N: E201088
EMV Cradle for MagTek eDynamo - Elo P/N: E375343
EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930
Status Light (Micro-USB Connectivity) - Elo P/N: E644767
3D Camera - Elo P/N: E134699
Webcam - Elo P/N: E201494
RFID - Elo P/N: E673037
Elo Edge Connect™ Speaker Bar (Black) - Elo P/N: E894719
Elo Edge Connect™ Speaker Bar (White) - Elo P/N: E133780
-
