PHANTOM 4PRO VISIONARY INTELLIGENCE. ELEVATED IMAGINATION.
Código: 2165

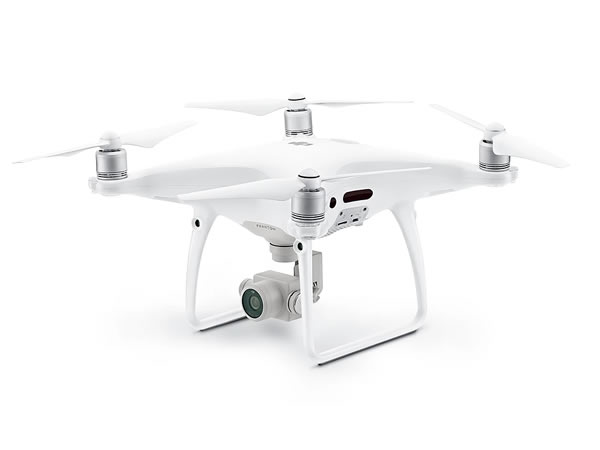

PHANTOM 4 PRO
?Cámara totalmente renovada con sensor CMOS Exmor R de 1 pulgada, tiempo de vuelo más largo y más funciones inteligentes; 60% más silencioso
ekipos.com
-
PHANTOM 4 PROSPECS
HomeProductsPhantom 4 ProSpecs
AIRCRAFT
Weight (Battery & Propellers Included) 1388 g
Diagonal Size (Propellers Excluded) 350 mm
Max Ascent Speed S-mode: 6 m/s
P-mode: 5 m/s
Max Descent Speed S-mode: 4 m/s
P-mode: 3 m/s
Max Speed S-mode: 45 mph (72 kph)
A-mode: 36 mph (58 kph)
P-mode: 31 mph (50 kph)
Max Tilt Angle S-mode: 42°
A-mode: 35°
P-mode: 25°
Max Angular Speed S-mode: 250°/s
A-mode: 150°/s
Max Service Ceiling Above Sea Level 19685 feet (6000 m)
Max Wind Speed Resistance 10 m/s
Max Flight Time Approx. 30 minutes
Operating Temperature Range 32° to 104°F (0° to 40°C)
Satellite Positioning Systems GPS/GLONASS
Hover Accuracy Range Vertical:
±0.1 m (with Vision Positioning)
±0.5 m (with GPS Positioning)
Horizontal:
±0.3 m (with Vision Positioning)
±1.5 m (with GPS Positioning)
VISION SYSTEM
Vision System Forward Vision System
Backward Vision System
Downward Vision System
Velocity Range ?31 mph (50 kph) at 6.6 ft (2 m) above ground
Altitude Range 0 - 33 feet (0 - 10 m)
Operating Range 0 - 33 feet (0 - 10 m)
Obstacle Sensory Range 2 - 98 feet (0.7 - 30 m)
FOV Forward: 60°(Horizontal), ±27°(Vertical)
Backward: 60°(Horizontal), ±27°(Vertical)
Downward: 70°(Front and Rear), 50°(Left and Right)
Measuring Frequency Forward: 10 Hz
Backward: 10 Hz
Downward: 20 Hz
Operating Environment Surface with clear pattern and adequate lighting (lux>15)
CAMERA
Sensor 1’’ CMOS
Effective pixels: 20M
Lens FOV 84° 8.8 mm/24 mm (35 mm format equivalent) f/2.8 - f/11 auto focus at 1 m - ?
ISO Range Video:
100 - 3200 (Auto)
100 - 6400 (Manual)
Photo:
100 - 3200 (Auto)
100- 12800 (Manual)
Mechanical Shutter Speed 8 - 1/2000 s
Electronic Shutter Speed 8 - 1/8000 s
Image Size 3:2 Aspect Ratio: 5472 × 3648
4:3 Aspect Ratio: 4864 × 3648
16:9 Aspect Ratio: 5472 × 3078
PIV Image Size 4096×2160(4096×2160 24/25/30/48/50p)
3840×2160(3840×2160 24/25/30/48/50/60p)
2720×1530(2720×1530 24/25/30/48/50/60p)
1920×1080(1920×1080 24/25/30/48/50/60/120p)
1280×720(1280×720 24/25/30/48/50/60/120p)
Still Photography Modes Single Shot
Burst Shooting: 3/5/7/10/14 frames
Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias
Interval: 2/3/5/7/10/15/20/30/60 s
Video Recording Modes H.265
C4K:4096×2160 24/25/30p @100Mbps
4K:3840×2160 24/25/30p @100Mbps
2.7K:2720×1530 24/25/30p @65Mbps
2.7K:2720×1530 48/50/60p @80Mbps
FHD:1920×1080 24/25/30p @50Mbps
FHD:1920×1080 48/50/60p @65Mbps
FHD:1920×1080 120p @100Mbps
HD:1280×720 24/25/30p @25Mbps
HD:1280×720 48/50/60p @35Mbps
HD:1280×720 120p @60Mbps
H.264
C4K:4096×2160 24/25/30/48/50/60p @100Mbps
4K:3840×2160 24/25/30/48/50/60p @100Mbps
2.7K:2720×1530 24/25/30p @80Mbps
2.7K:2720×1530 48/50/60p @100Mbps
FHD:1920×1080 24/25/30p @60Mbps
FHD:1920×1080 48/50/60 @80Mbps
FHD:1920×1080 120p @100Mbps
HD:1280×720 24/25/30p @30Mbps
HD:1280×720 48/50/60p @45Mbps
HD:1280×720 120p @80Mbps
Max Video Bitrate 100 Mbps
Supported File Systems FAT32 (?32 GB); exFAT (>32 GB)
Photo JPEG, DNG (RAW), JPEG + DNG
Video MP4/MOV (AVC/H.264; HEVC/H.265)
Supported SD Cards Micro SD
Max Capacity: 128GB
Write speed ?15MB/s, Class 10 or UHS-1 rating required
Operating Temperature Range 32° to 104°F (0° to 40°C)
CHARGER
Voltage 17.4 V
Rated Power 100 W
APP / LIVE VIEW
Mobile App DJI GO 4
Live View Working Frequency 2.4 GHz ISM, 5.8 GHz ISM
Live View Quality 720P @ 30fps
Latency Phantom 4 Pro: 220 ms (depending on conditions and mobile device)
Phantom 4 Pro +?160 - 180 ms
-
